Linear Interconnect Network
Linear Interconnect Network

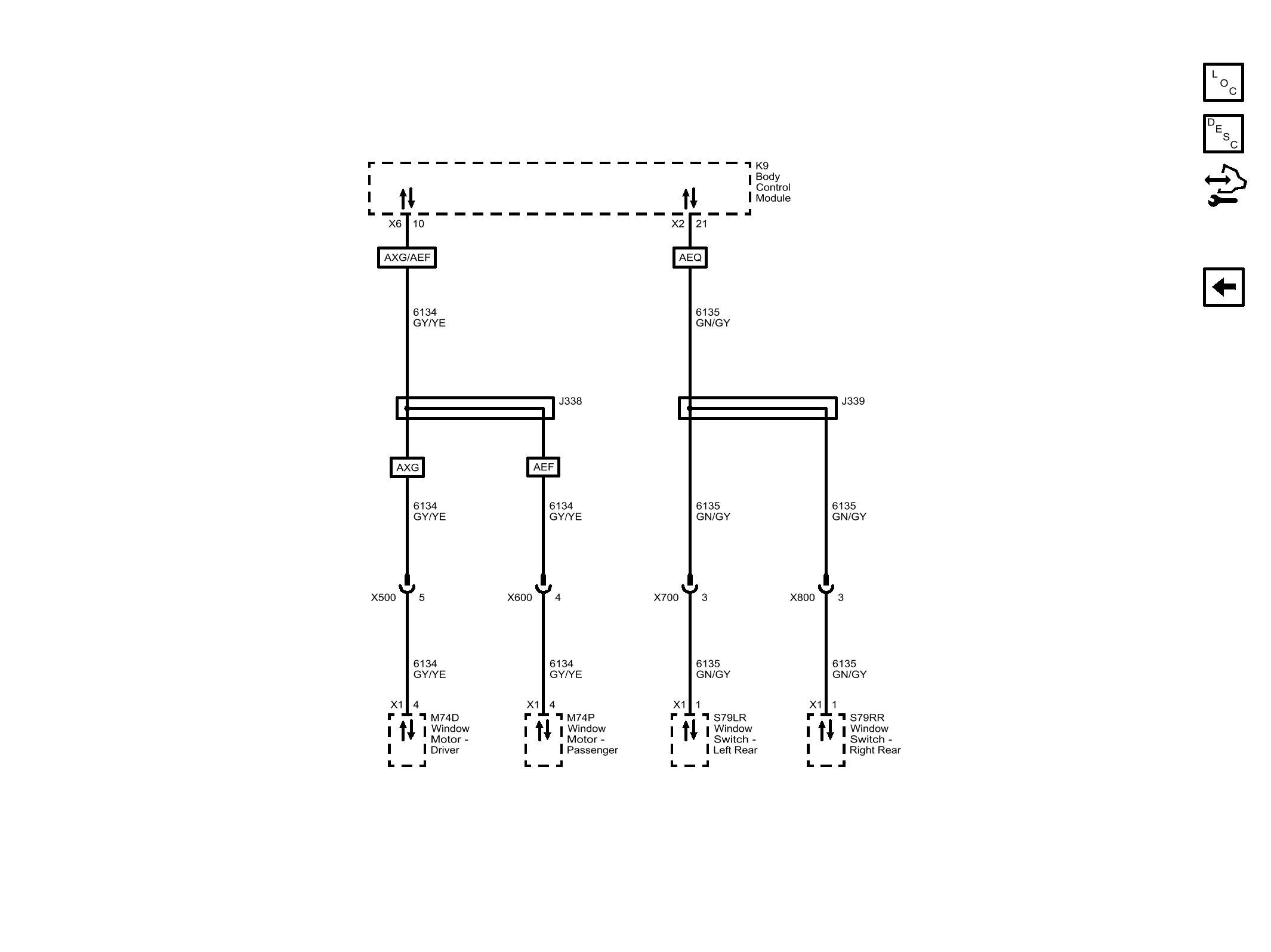

Fig 1: Linear Interconnect Network Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
