Power, Ground, and Low Speed GMLAN

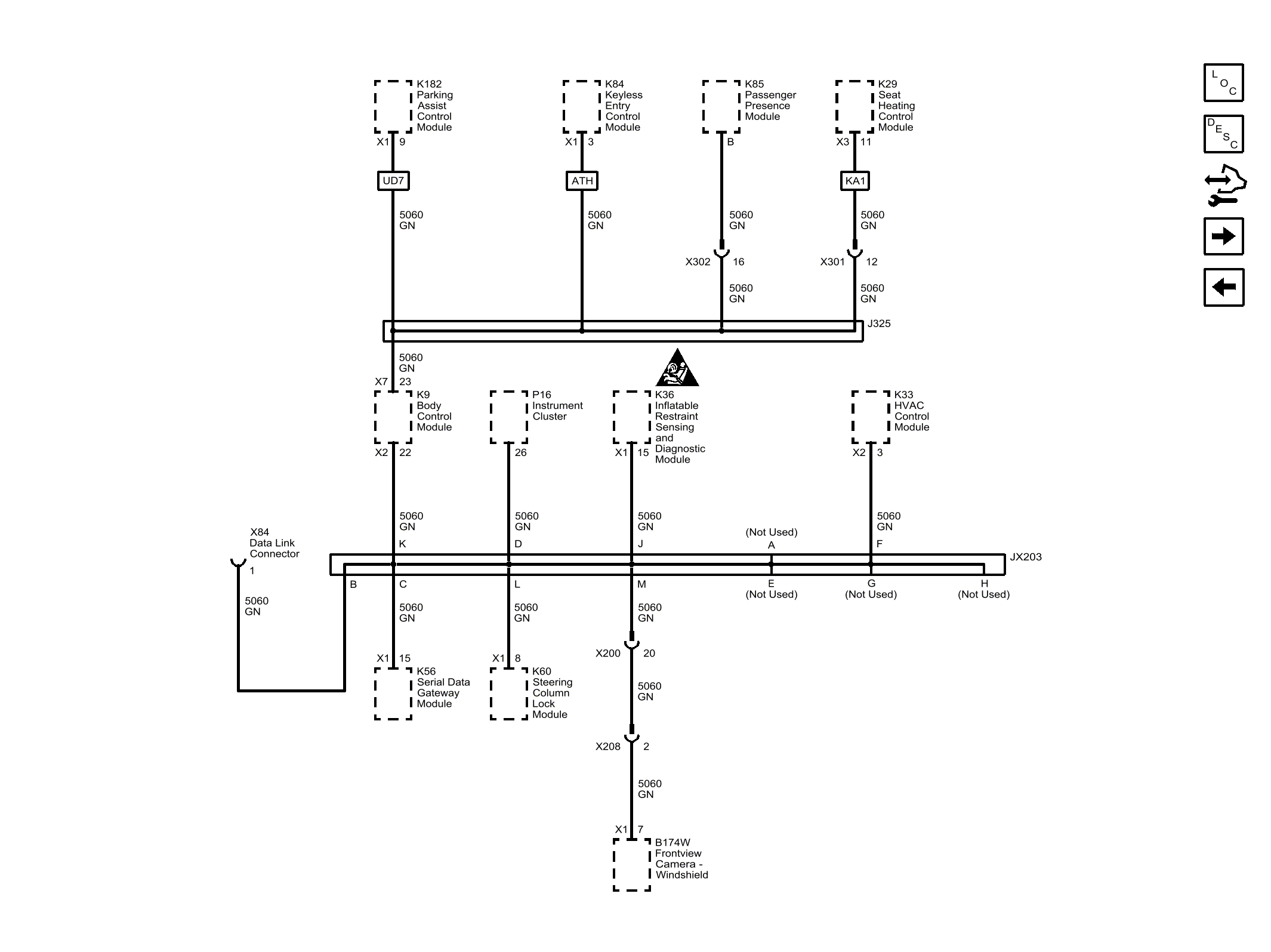

Fig 1: Power, Ground, and Low Speed GMLAN Wiring Schematic
GM4427234Courtesy of GENERAL MOTORS COMPANY
