Front Side Door Window Regulator Replacement (Power)

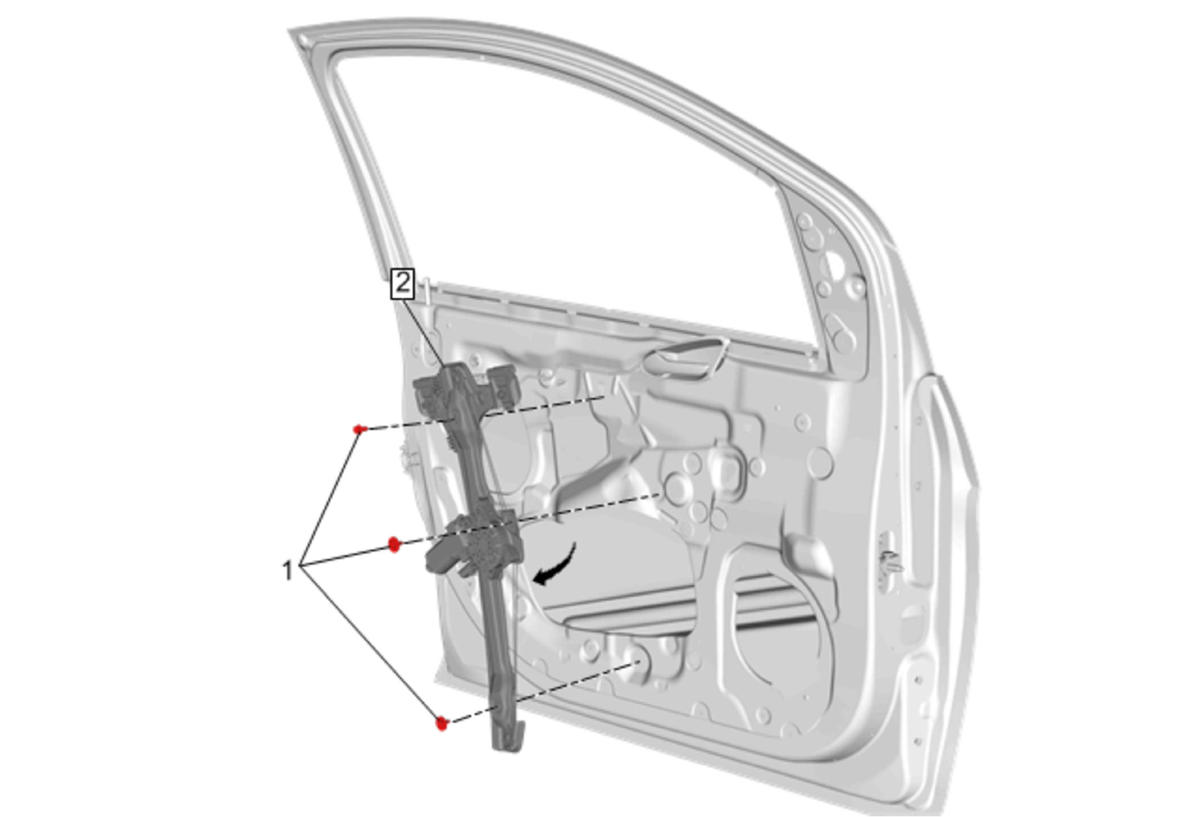

Fig 1: Front Side Door Window Regulator (Power)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedure Remove the front side door window from the window regulator guide nuts. Refer to Front Side Door Window Replacement .
1	Front Side Door Power Window Regulator Bolts (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Remove the front side door water deflector. Disconnect the electric connector from the regulator motor. Tighten 11 N.m (97 lb in)
2	Front Side Door Power Window Regulator Procedure Transfer the front side door window regulator motor. Refer to Front Side Door Window Regulator Motor Replacement . Inspect the door window for proper operation before installing the door trim. Perform the window regulator motor program relearn. Refer to Window Motor Programming - Express Function .

Callout

Component Name

WARNING: Refer to Glass and Sheet Metal Handling Warning .

Preliminary Procedure Remove the front side door window from the window regulator guide nuts. Refer to Front Side Door Window Replacement .

Front Side Door Power Window Regulator Bolts (Qty: 3)

CAUTION: Refer to Fastener Caution .

Procedure

Tighten
11 N.m (97 lb in)

Front Side Door Power Window Regulator

Procedure

Transfer the front side door window regulator motor. Refer to Front Side Door Window Regulator Motor Replacement .
Inspect the door window for proper operation before installing the door trim.
Perform the window regulator motor program relearn. Refer to Window Motor Programming - Express Function .
