Front Intake Air Duct Adapter Replacement

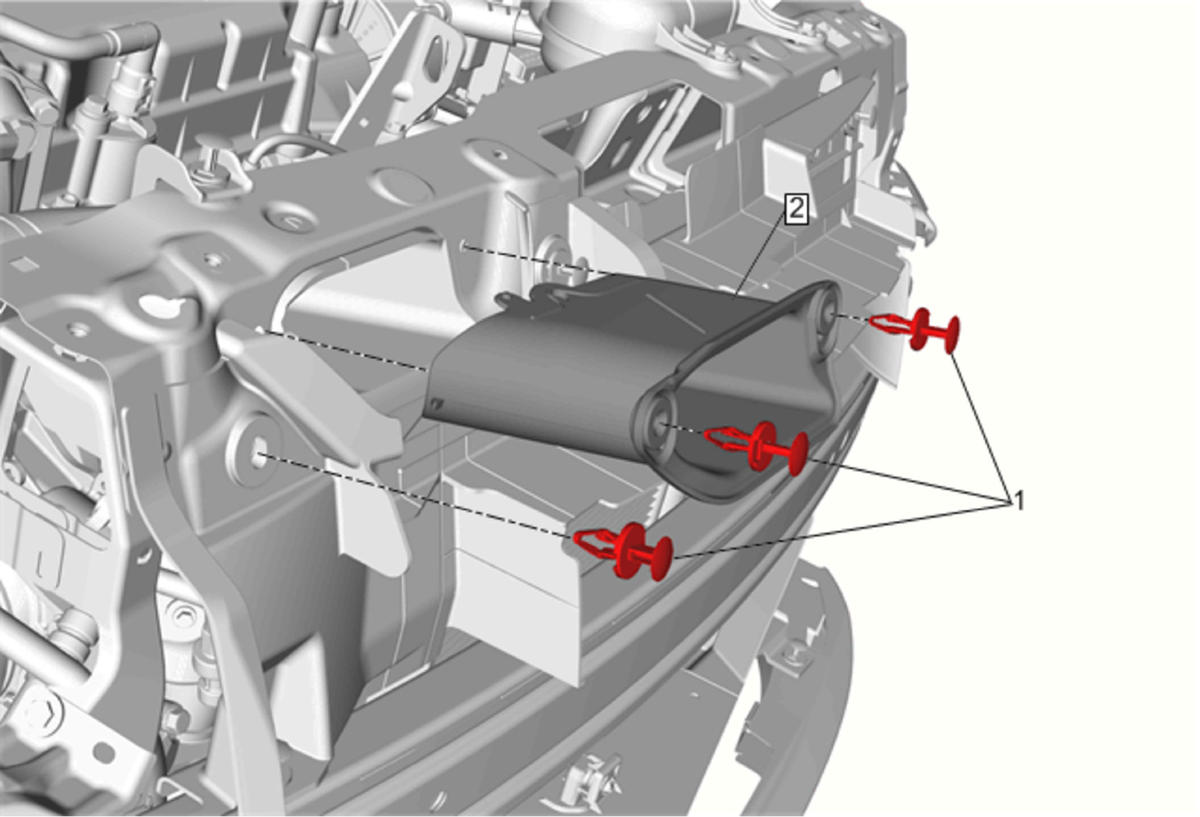

Fig 1: Front Intake Air Duct Adapter

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
1	Front Intake Air Duct Adaptor Retainer (Qty: 3)
2	Front Intake Air Duct Adaptor
