Airbag Front Passenger Presence Module Replacement

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

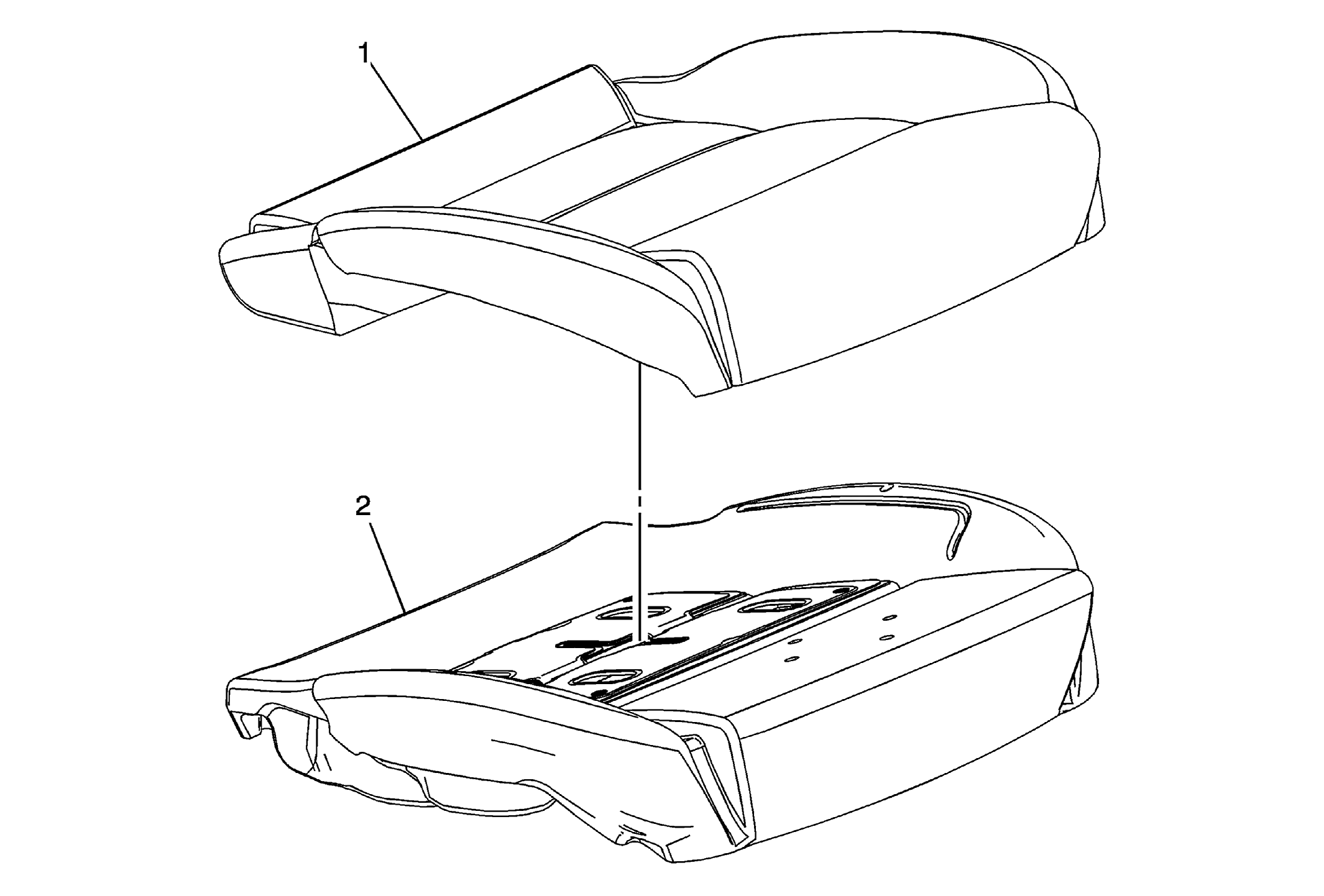

GM2917753
Callout Component Name
WARNING:

Refer to SIR Warning .

WARNING:

Replace the passenger presence system as a complete assembly to prevent possible injury to the occupant. All the components in the service kit are assembled and calibrated as a unit. Using only some of the components in the service kit will cause the passenger presence system to operate improperly.

WARNING:

To avoid personal injury, perform a preload test on the passenger presence system whenever you remove or replace the seat cushion trim. Failure to do so may cause the system to malfunction.

Preliminary Procedure

  1. Disable the SIR system. SIR Disabling and Enabling
  2. Remove the driver or passenger seat. Driver or Passenger Seat Removal and Installation
  3. Remove the front seat cushion cover and pad. Front Seat Cushion Cover and Pad Replacement .
1 Front Seat Cushion Cover
2 Airbag Front Passenger Presence Module

Procedure

  1. The passenger presence system is an integral part of the pad on the passenger seat cushion.
  2. Note the routing of the wiring harness and connector location for installation.
  3. Program the inflatable restraint passenger presence system after replacement. Refer to Control Module References
