Installation Procedure

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM2190276

    Vent Valve Lever(1) - Install - Vent Valve Lever Replacement

  2. Mode Control Cam(2) - Install
  3. Lubricate the mode control cam in order to assure proper operation.

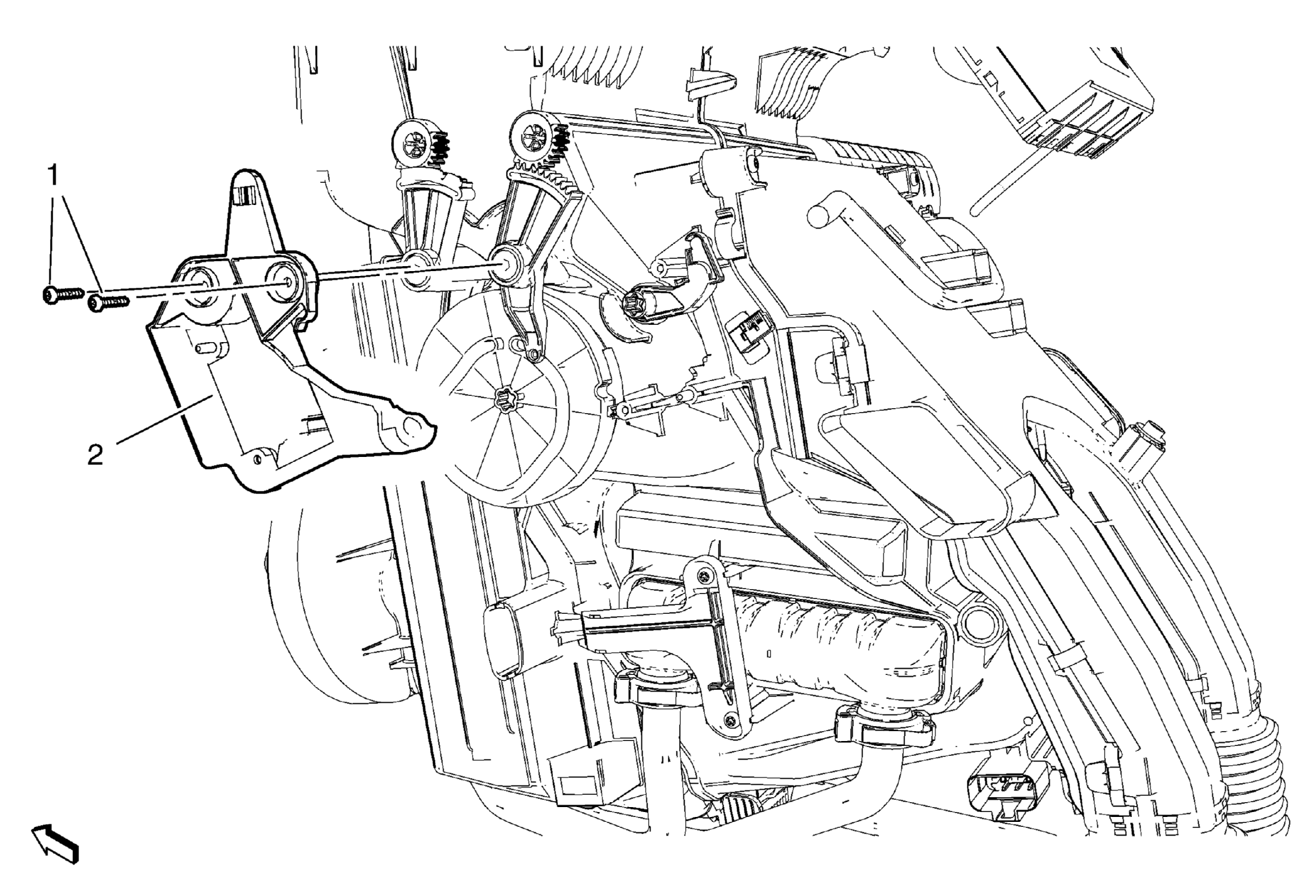

  4. GM2190274

    Mode Control Cam Actuator Mounting Plate(2) - Install - Mode Control Cam Actuator Mounting Plate Replacement

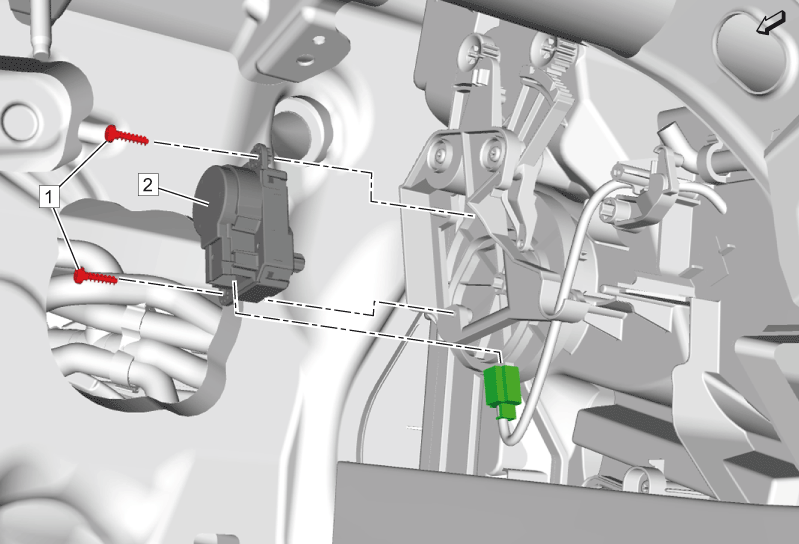

  5. GM4422330

    Mode Control Cam Actuator(2) - Install - Mode Control Cam Actuator Replacement

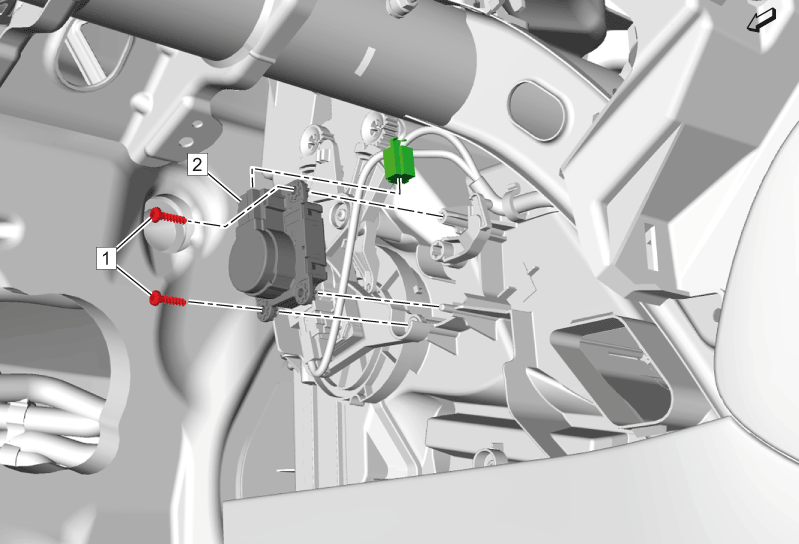

  6. GM4422329

    Temperature Valve Actuator - Left Side(2) - Install - Temperature Valve Actuator Replacement - Left Side

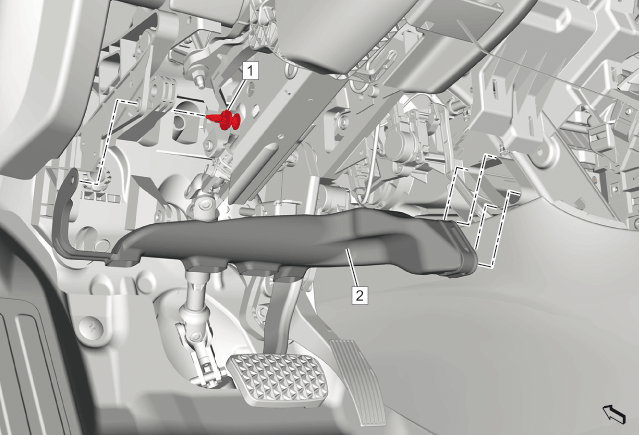

  7. GM4067563

    Floor Front Air Outlet Duct - Left Side(2) - Install - Floor Front Air Outlet Duct Replacement - Left Side
