Installation Procedure

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

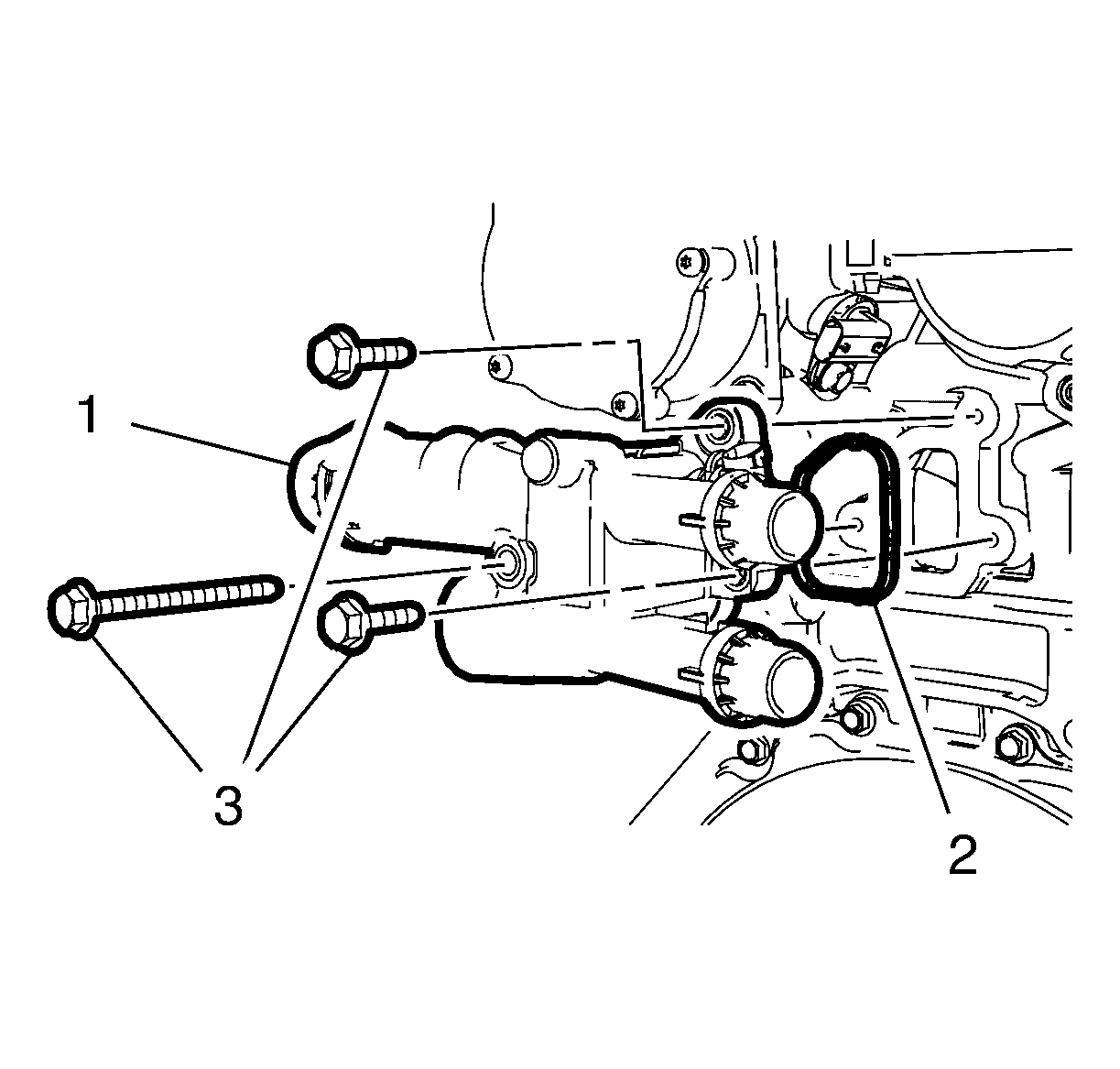

  1. GM2906694

    Install a NEW water outlet seal (2).

  2. Install water outlet (1).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Install 3 water outlet bolts (3) and tighten to 7 N.m (62 lb in).

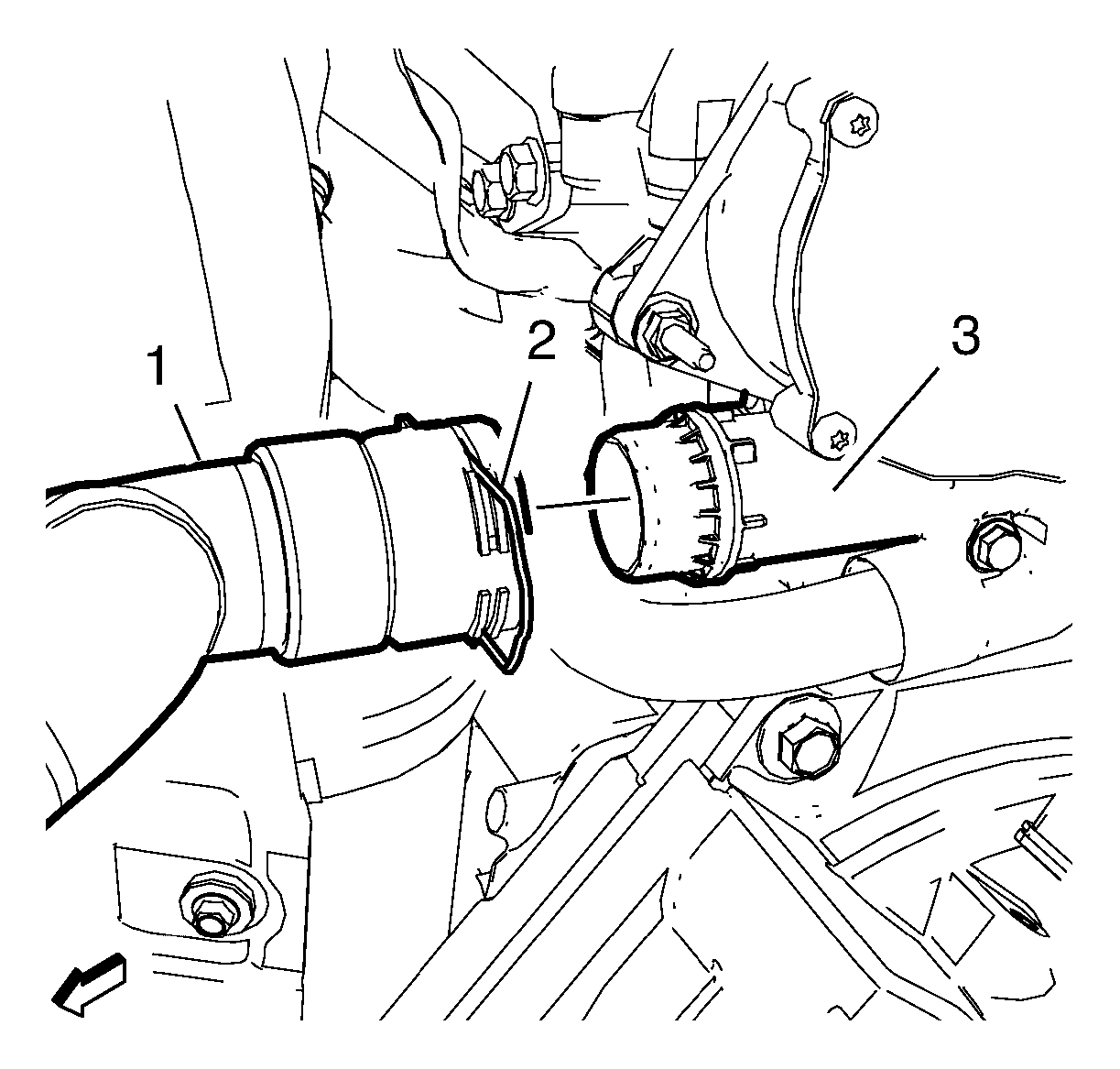

  4. GM3213222

    Install the radiator inlet hose (1) to the water outlet (3).

  5. Close the retainer spring (2) from radiator inlet hose connector.

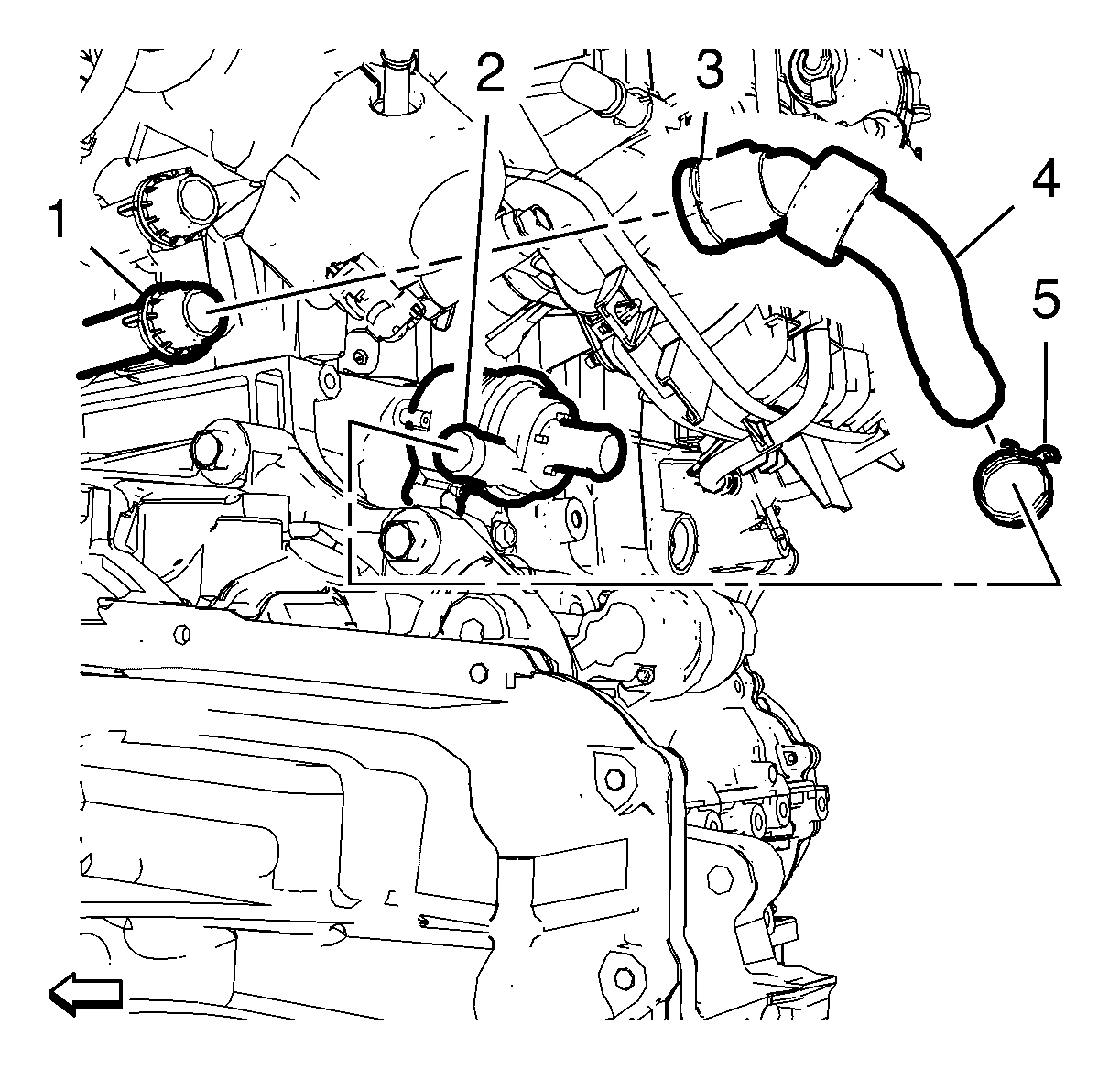

  6. GM3137471

    Lock the quick fitting (3).

  7. Install the heater outlet hose (4) to the water outlet housing (1).
  8. Install the heater inlet hose to water outlet housing. Refer to Heater Inlet Hose Replacement .
  9. GM3213161

    Install the coolant air bleed hose (1) to the water outlet housing (4).

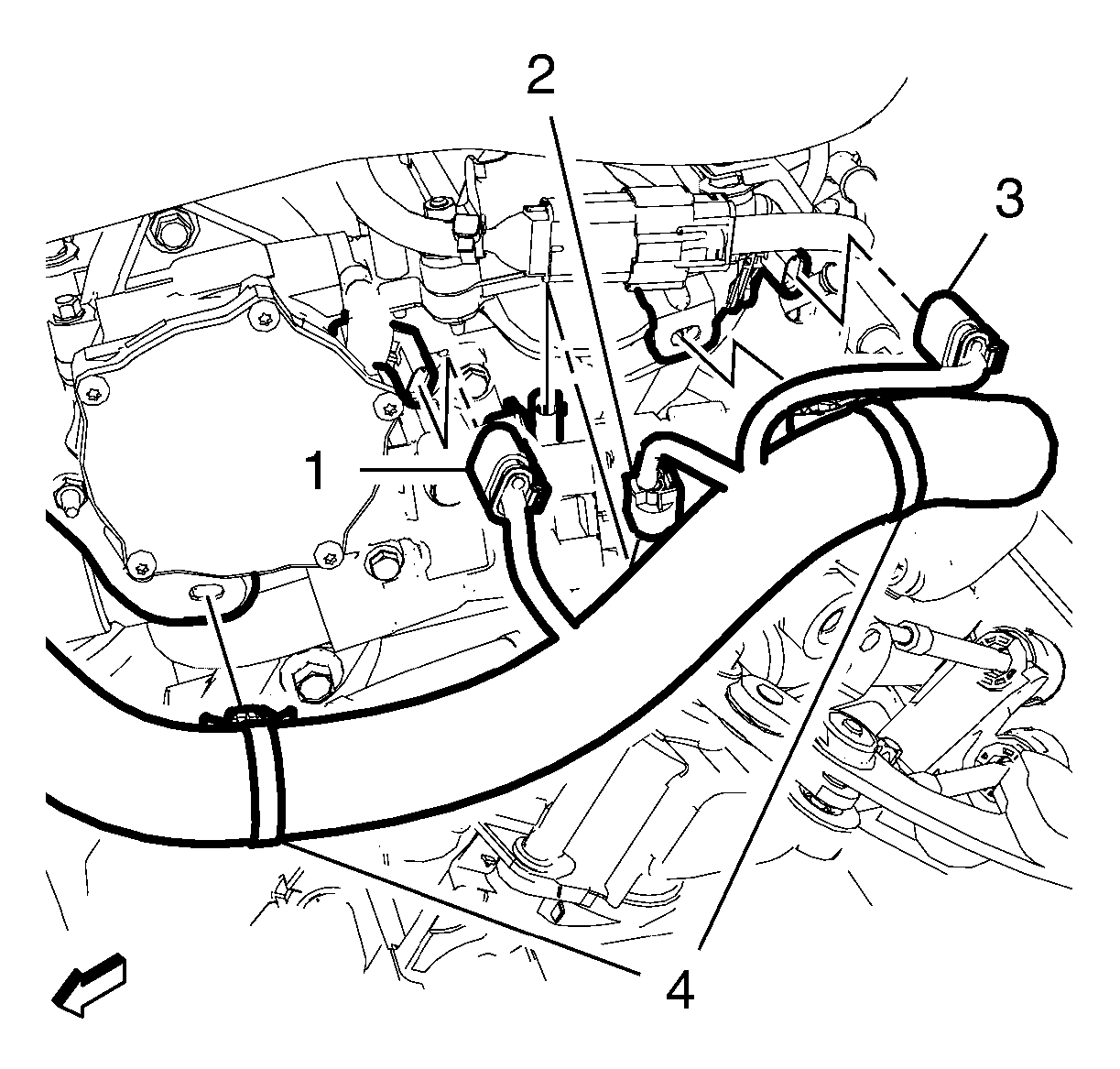

  10. GM3213220

    Connect the intake camshaft sensor wiring harness plug (3).

  11. Connect the engine coolant temperature sensor wiring harness plug (2).
  12. Connect the exhaust camshaft sensor wiring harness plug (1).
  13. Clip in the 2 wiring harness retainer clips (4) to the 2 retainer brackets.

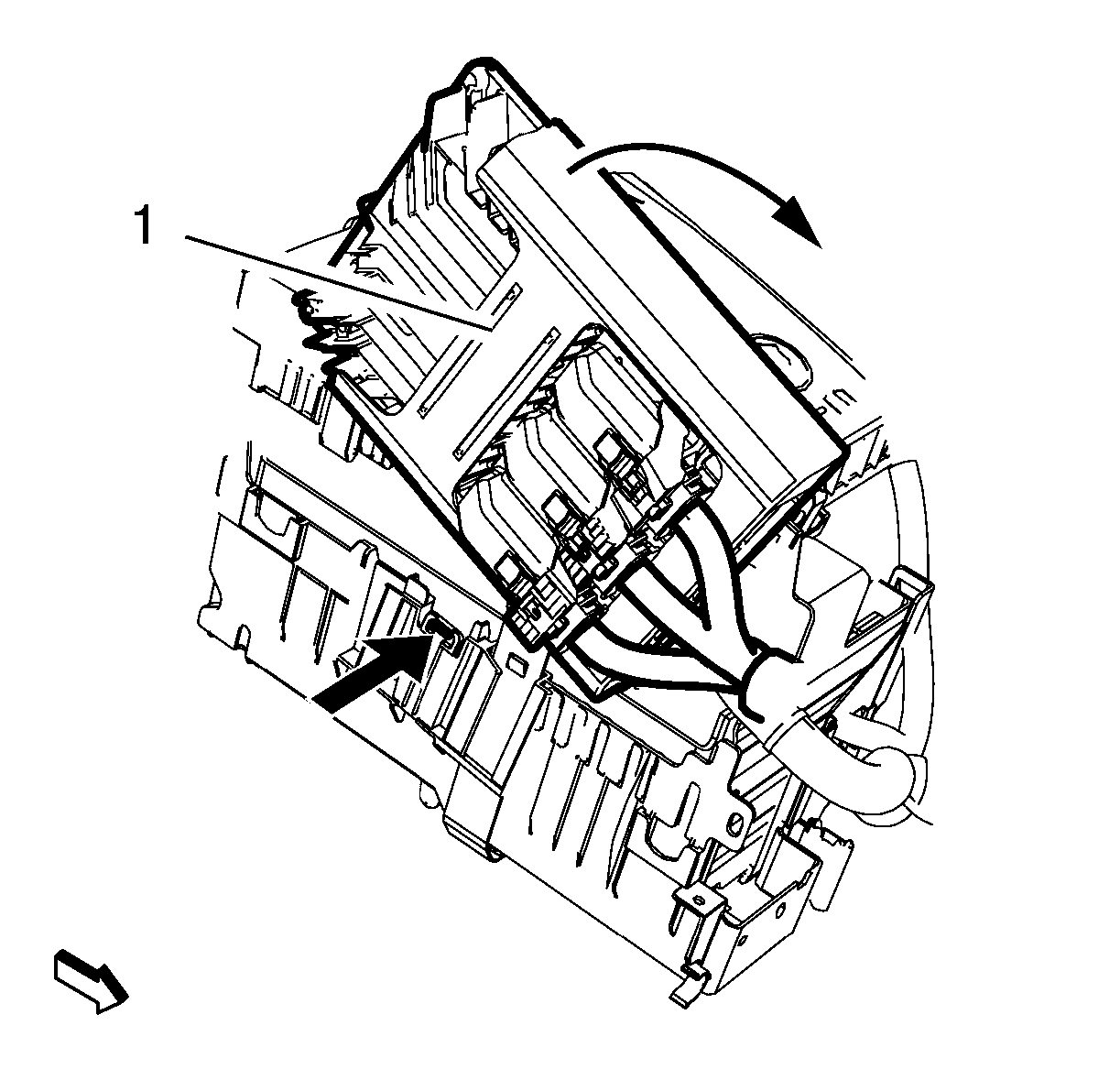

  14. GM3213159
    NOTE:

    Ensure that the retainer clip (arrow) is engaged.

    Install the electronic control module (1) to the battery tray.

  15. Fill the cooling system. Refer to Cooling System Draining and Filling .
  16. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
