Installation Procedure

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

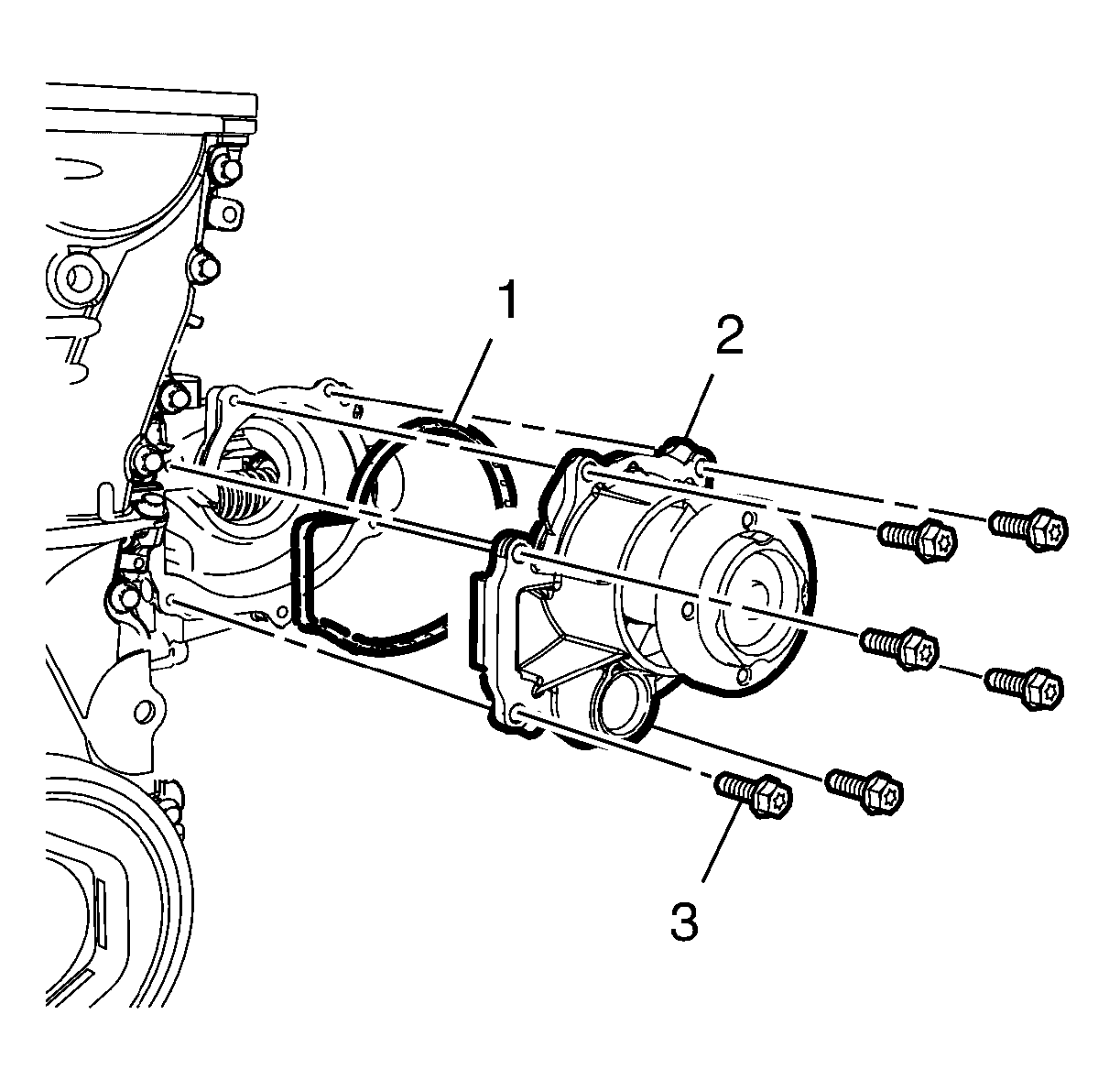

Install a NEW water pump seal (1).

NOTE:

Mind the 2 water pump location pins.

Install the water pump (2).

CAUTION:

Refer to Fastener Caution .

Install the 6 water pump bolts (3) and tighten to 9 N.m (80 lb in).
Install the water pump pulley. Refer to Water Pump Pulley Replacement .
