Installation Procedure

WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.

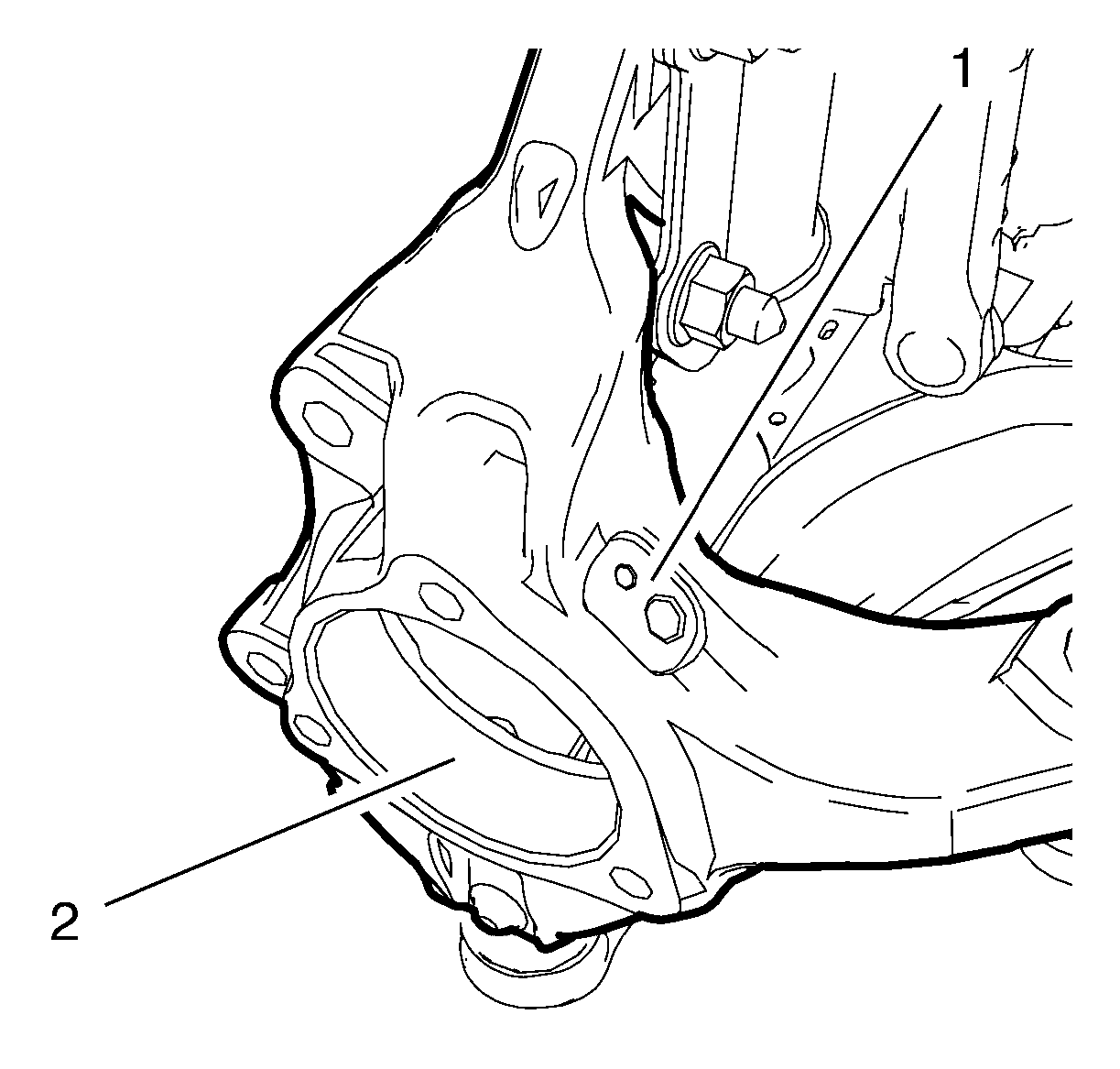

  1. GM4248340
    NOTE:

    Ensure the grease does not contaminate the following parts:

    • wheel speed sensor bore holes
    • bearing fastener threads
    • wheel speed sensor

    Grease the steering knuckle surface of the front wheel speed sensor (1).

  2. Grease the steering knuckle surface of the front wheel bearing/hub (2).
  3. GM2027685

    Position the front brake shield (2) and wheel bearing/hub assembly (1) in the steering knuckle.

  4. GM2027684
    WARNING:

    Refer to Torque-to-Yield Fastener Warning .

    CAUTION:

    This is a self-retaining fastener joint that does not require thread locking compounds. Do not attempt to clean the threads with a standard tap. If a standard tap is used, damage to the joint threads will occur.

    CAUTION:

    Refer to Fastener Caution .

    Tighten the NEW bearing/hub bolts (1) a first pass to 90 N.m (66 lb ft).

  5. Tighten the NEW bearing/hub bolts (1) a final pass to an additional 60 - 75 degrees, using the EN-45059  meter.
  6. GM2027678

    Install the wheel speed sensor wiring harness to the steering knuckle.

  7. Install the wheel speed sensor (2).
  8. Install the wheel speed sensor bolt (1) and tighten to 6 N.m (53 lb in).
  9. Install the brake rotor. Refer to Front Brake Rotor Replacement .
  10. Install the NEW wheel drive shaft retaining nut and washer. Refer to Front Wheel Drive Shaft Replacement - Right Side , or Front Wheel Drive Shaft Replacement - Left Side .
  11. Remove the support and lower the vehicle.
