X51A Fuse Block - Instrument Panel Label

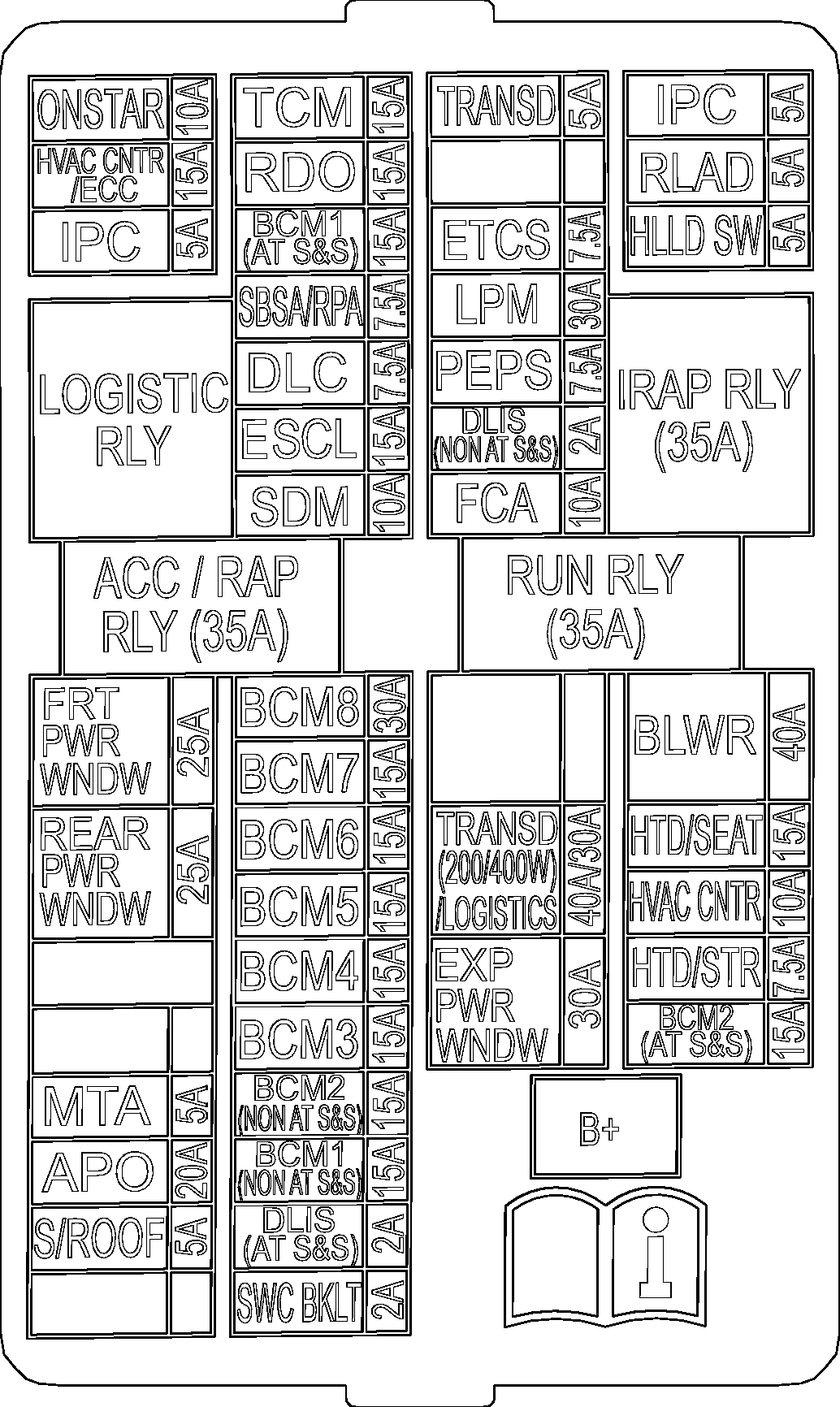

Fig 1: X51A Fuse Block - Instrument Panel Label
GM4290397Courtesy of GENERAL MOTORS COMPANY
