Body Control System Wiring Schematics
›
Power, Ground and Serial Data Communication
Power, Ground and Serial Data Communication

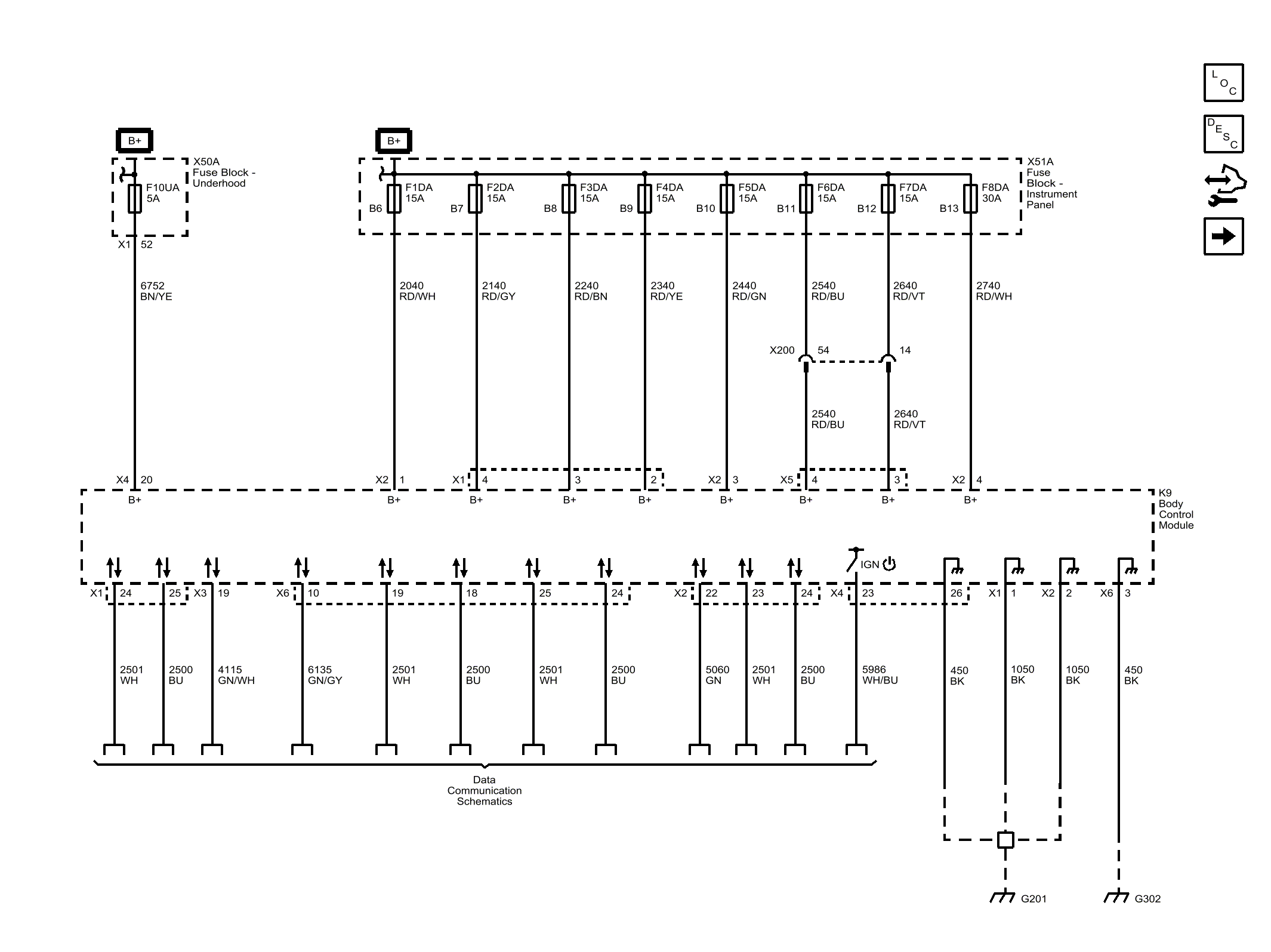

Fig 1: Power, Ground and Serial Data Communication
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
