K182 Parking Assist Control Module X2
WARNING: This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

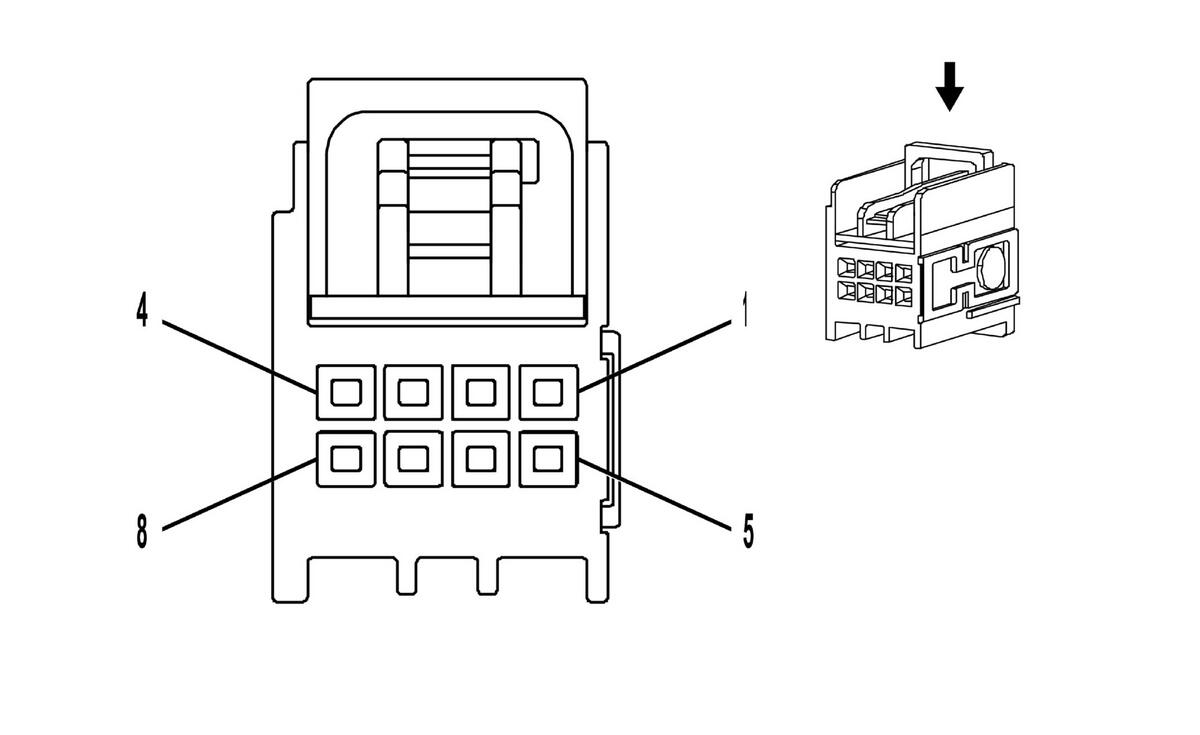

Connector Part Information
- Harness Type: Rear Body
- OEM Connector: 94552-9008
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way F 0.64 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-14 (GN) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| II |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
YE/VT |
2378 |
Right Rear Corner Object Sensor Signal |
II |
UD5 |
| 2 |
0.5 |
YE/WH |
2377 |
Right Rear Middle Object Sensor Signal |
II |
UD5 |
| 3 |
0.5 |
YE/BU |
2376 |
Left Rear Middle Object Sensor Signal |
II |
UD5 |
| 4 |
0.35 |
BN/WH |
2374 |
Object Sensor Control |
I |
- |
| 5 |
0.5 |
YE |
2375 |
Left Rear Corner Object Sensor Signal |
II |
UD5 |
| 6 - 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.5 |
BK/GY |
2379 |
Object Sensor Low Reference |
II |
- |
