Section 31 (Keyless Entry System And Remote Functions)
›
Schematic and Wiring Diagrams
›

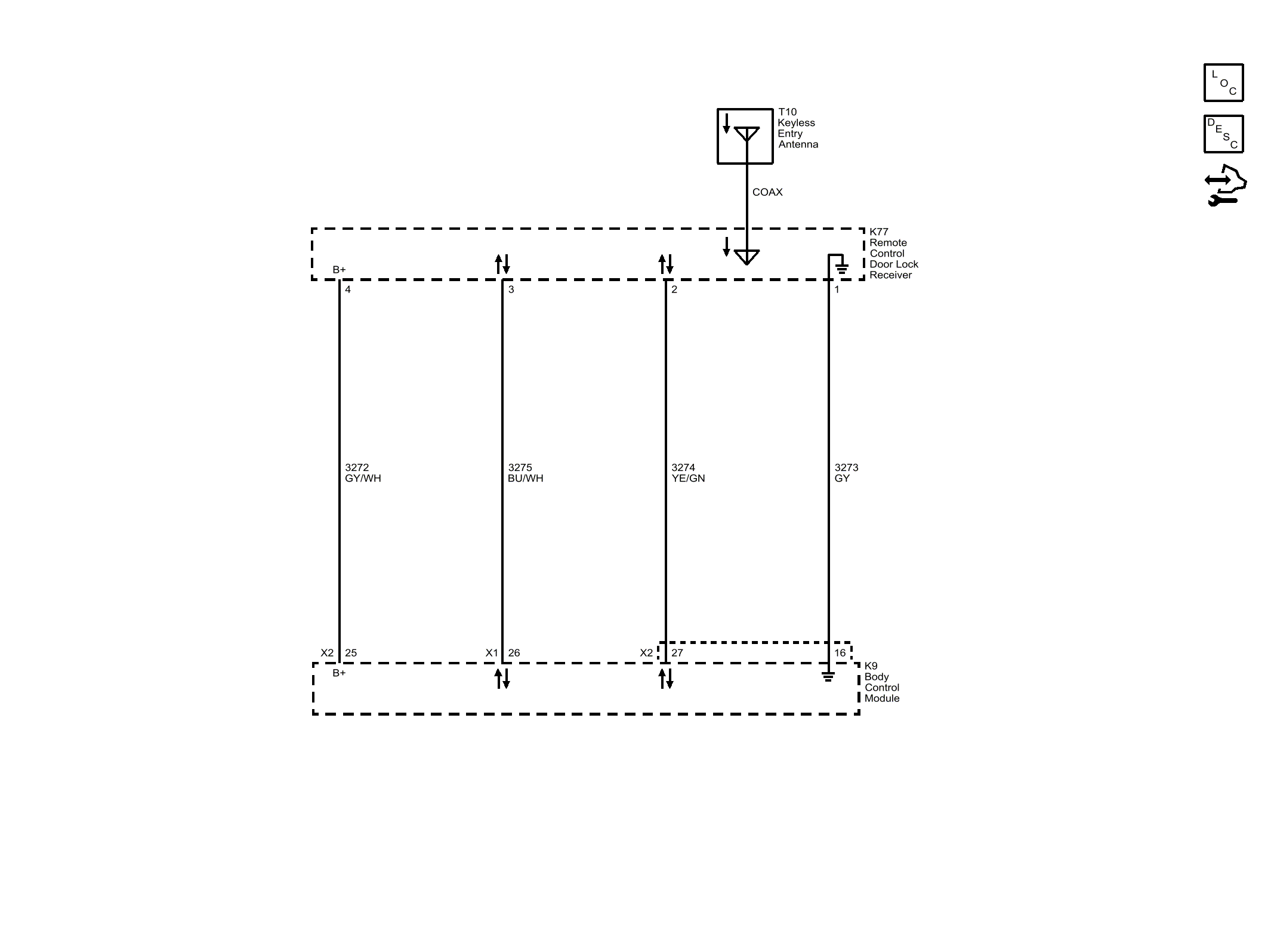

Remote Function Wiring Schematics
›
Keyless Entry
Keyless Entry
WARNING:
This page is about a different car, the 2019 Buick Cascada, 2018 Buick Cascada, and 2017 Buick Cascada. However, it is still accessible from the selected car via links, so may be relevant.
