Body Control Module Replacement

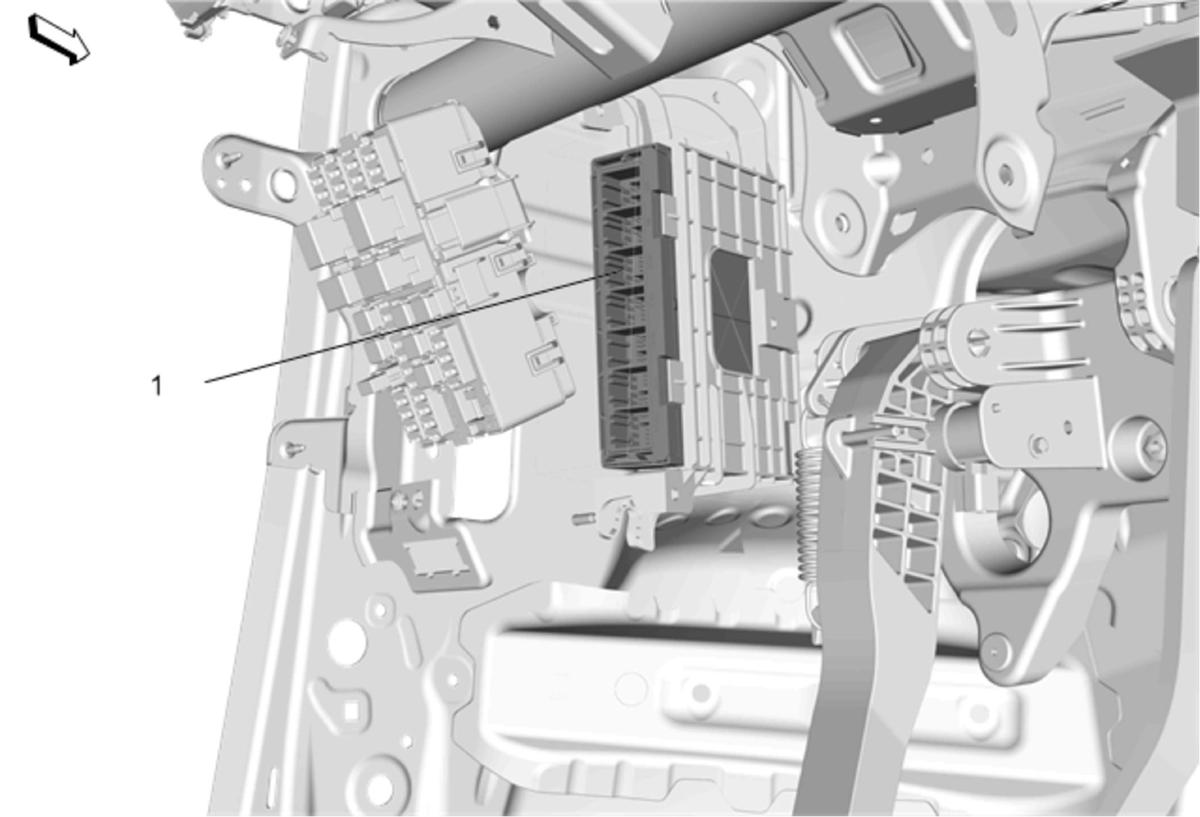

Fig 1: Body Control Module (Left Hand Drive)
GM4051333Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection .
  2. Remove the body control module bracket. Body Control Module Bracket Replacement .
1 Body Control Module

Procedure

  1. Disconnect electrical connector.
  2. Unclip body control module from body control module bracket.
  3. After replacement, refer to Control Module References for programming and set up procedures.
