Serial Data Gateway Module Replacement (LHD)

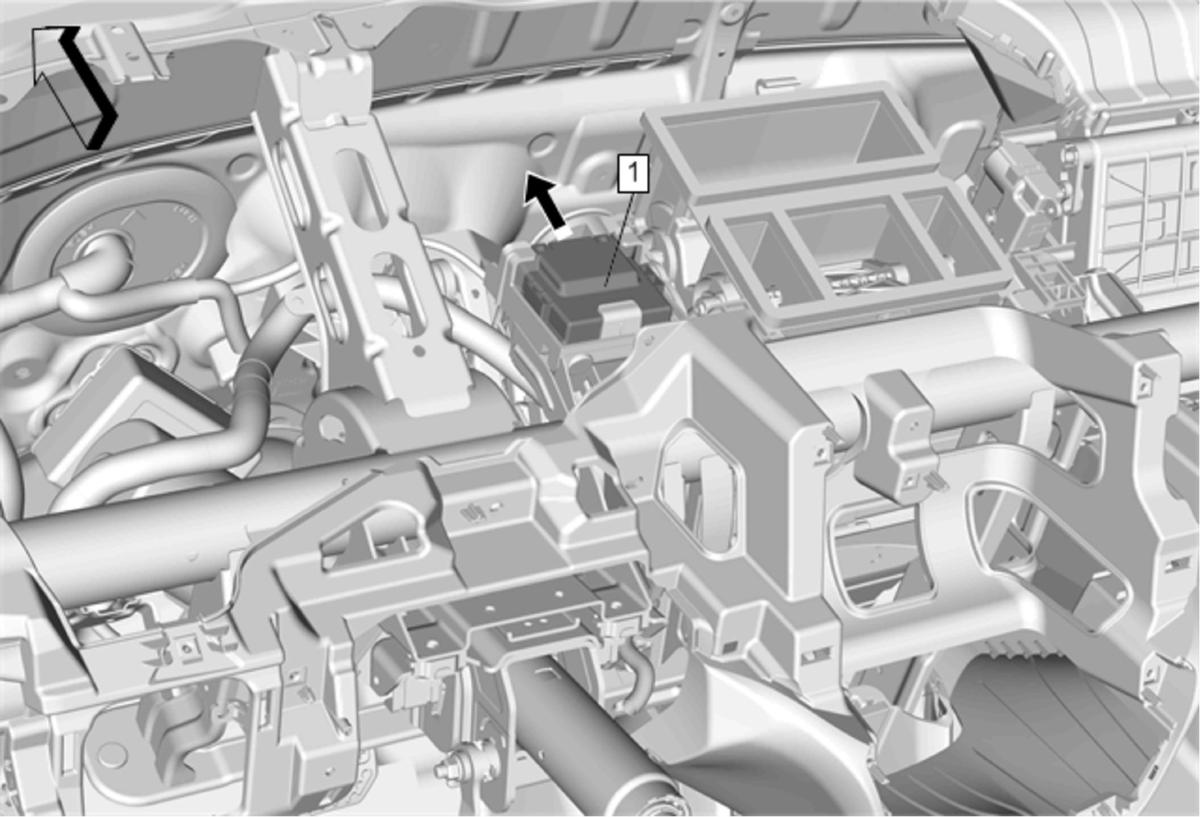

Fig 1: Serial Data Gateway Module (LHD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Upper Trim Panel Replacement
1	Serial Data Gateway Module Procedure Disconnect the electrical connectors. Release the retaining tab. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Serial Data Gateway Module

Procedure
