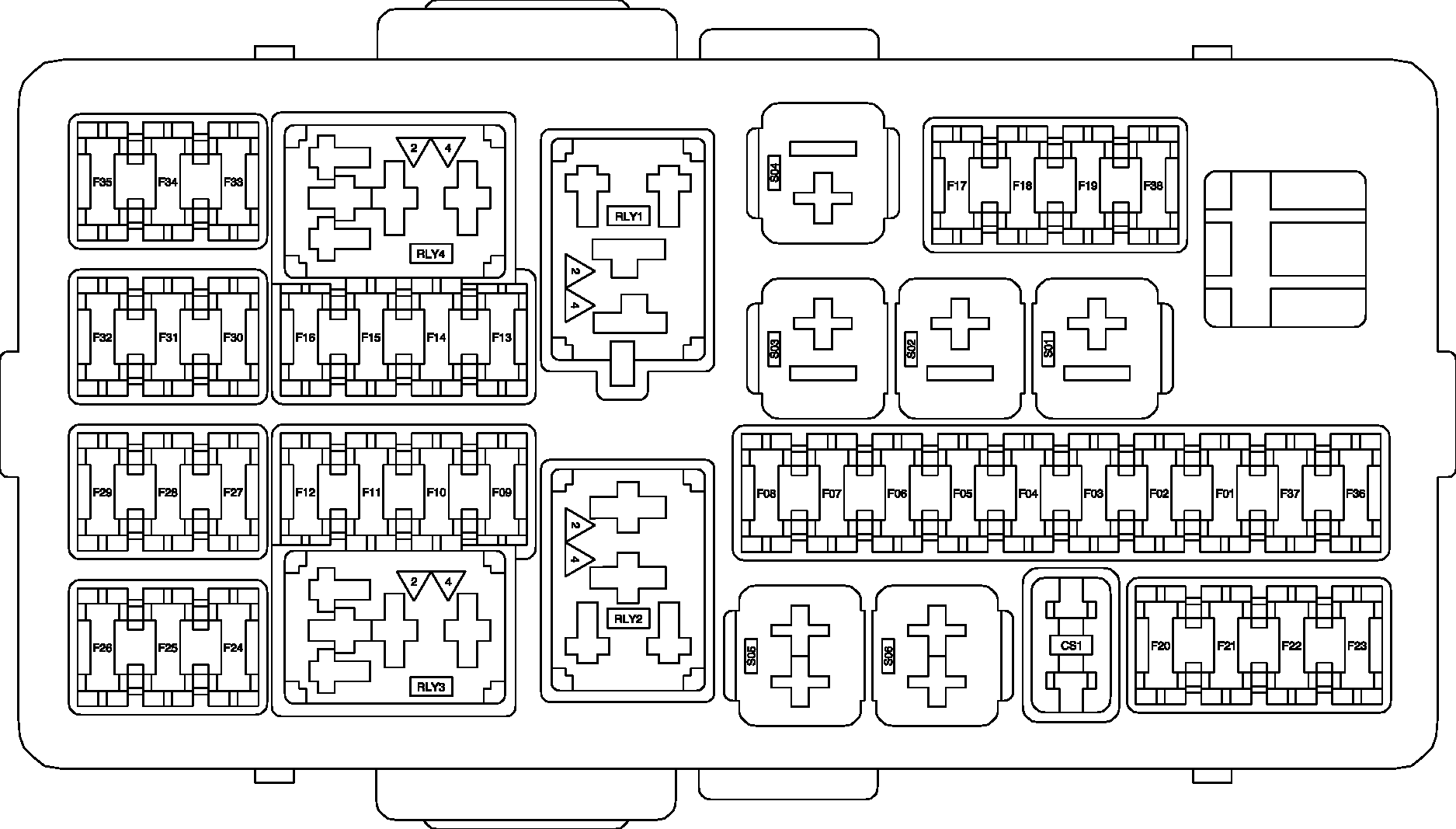

X51A Fuse Block - Instrument Panel Top View
X51A FUSE BLOCK - INSTRUMENT PANEL FUSE AND RELAY IDENTIFICATION LEGEND
| No. | Device Label Name | Device Assigned Name | Rating | Description |
|---|---|---|---|---|
| Fuses | ||||
| 1 | - | F1DA | 15 A | K9 Body Control Module: E4J Park Lamp - Left Front, E4K Park Lamp - Right Front, E5E Tail Lamp - Left, E5R Stop Lamp - Right, E6 Center High Mounted Stop Lamp, E7L License Plate Lamp - Left, E7R License Plate Lamp - Right, E29LR Fog Lamp - Left Front (LHD), E29RR Fog Lamp - Right Front (RHD), S48A Multifunction Switch - Instrument Panel, K5 Rear Defogger Relay (C41/C60), KR6 Rear Window Washer Pump Relay, KR11 Windshield Washer Pump Relay, K20 Engine Control Module, K33 HVAC Control Module, K71 Transmission Control Module (MFQ), KR73 Ignition Main Relay, S26 Hazard Warning Switch |
| 2 | - | F2DA | 15 A | K9 Body Control Module: E8S Rear Compartment Courtesy Lamp, KR74 Ignition Run Relay, M93 Key Capture Actuator |
| 3 | - | F3DA | 15 A | K9 Body Control Module: KR42R Daytime Running Lamp Relay - Right |
| 4 | - | F4DA | 15 A | K9 Body Control Module: KR42L Daytime Running Lamp Relay - Left |
| 5 | - | F5DA | 15 A | K9 Body Control Module: E4Z Turn Signal Repeater Lamp - Right, E4LR Turn Signal Lamp - Left Rear, E4RF Turn Signal Lamp - Right Front, E5L Stop Lamp - Left, E5F Tail Lamp - Right, KR7 Rear Wiper Relay, KR76A Retained Accessory Power Relay 1, KR95A Liftgate Unlatch Relay, KR104A Battery Saver Relay 1, S38 Ignition Mode Switch |
| 6 | - | F6DA | 15 A | K9 Body Control Module: B87 Rearview Camera, E5A Backup Lamp - Left (RHD), E5B Backup Lamp - Right (LHD), E37F Dome/Reading Lamps - Front |
| 7 | - | F7DA | 15 A | K9 Body Control Module: E4Y Turn Signal Repeater Lamp - Left, E4LF Turn Signal Lamp - Left Front, E4RR Turn Signal Lamp - Right Front, KR42L Daytime Running Lamp Relay - Left, KR42R Daytime Running Lamp Relay - Right |
| 8 | - | F8DA | 30 A | K9 Body Control Module: M14D Door Lock Actuator - Driver, M14P Door Lock Actuator - Passenger, M14LR Door Lock Actuator - Left Rear, M14RR Door Lock Actuator - Right Rear |
| 9 | - | F9DA | 10 A | K36 Inflatable Restraint Sensing and Diagnostic Module |
| 10 | - | F10DA | 15 A | K60 Steering Column Lock Module |
| 11 | - | F11DA | 7.5 A | X84 Data Link Connector |
| 12 | - | F12DA | 7.5 A | K86 Advanced Parking Assist Control Module |
| 13 | - | F13DA | 10 A | K109 Frontview Camera Module |
| 14 | - | F14DA | 2 A | S39 Ignition Switch |
| 15 | - | F15DA | 7.5 A | K84 Keyless Entry Control Module |
| 16 | - | F16DA | 30 A | K8 Blower Motor Control Module |
| 17 | - | F17DA | 15 A | S32 Seat Heating Switch |
| 18 | - | F18DA | 10 A | K33 HVAC Control Module |
| 19 | - | F19DA | 7.5 A | X85 Steering Wheel Air Bag Coil, K32 Steering Wheel Heating Control Module |
| 20 | - | F20DA | 5 A | S3 Transmission Shift Lever (MFQ) |
| 21 | - | F21DA | 20 A | E32 Cigarette Lighter Receptacle |
| 22 | - | F22DA | 5 A | K61 Sunroof Control Module (CF5) |
| 23 | - | F23DA | - | Not Used |
| 24 | - | F24DA | 5 A | P16 Instrument Cluster |
| 25 | - | F25DA | 15 A | K33 HVAC Control Module, A26 HVAC Controls (C68) |
| 26 | - | F26DA | 10 A | K73 Telematics Communication Interface Control Module (UE1) |
| 27 | - | F27DA | - | Not Used |
| 28 | - | F28DA | 15 A | A11 Radio (IP0, IP1 or IOB), X83 Auxiliary Audio Input (IP0, IP1 or IOB) |
| 29 | - | F29DA | - | Not Used |
| 30 | - | F30DA | - | Not Used |
| 31 | - | F31DA | - | Not Used |
| 32 | - | F32DA | - | Not Used |
| 33 | - | F33DA | 5 A | S30 Headlamp Switch |
| 34 | - | F34DA | 5 A | P43 Collision Alert Indicators |
| 35 | - | F35DA | 5 A | P16 Instrument Cluster |
| 36 | - | F36DA | 2 A | X85 Steering Wheel Air Bag Coil, S70L Steering Wheel Controls Switch - Left, S70R Steering Wheel Controls Switch - Right, K32 Steering Wheel Heating Control Module |
| 37 | - | F37DA | - | Not Used |
| 38 | - | F38DA | - | Not Used |
| 39 | - | F39DA | 30 A | M74D Window Motor - Driver |
| 40 | - | F40DA | 30 A | KR104A Battery Saver Relay 1 |
| 41 | - | F41DA | - | Not Used |
| 42 | - | F42DA | 40 A | M8 Blower Motor |
| 43 | - | F43DA | 25 A | S79D Window Switch - Driver (A32, A33 or AXG, S79P Window Switch - Passenger (A32, A33 or AXG) |
| 44 | - | F44DA | 25 A | S79D Window Switch - Driver (AXG/A33) |
| 45 | - | F45DA | - | Not Used |
| Relays | ||||
| 1 | - | KR76A Retained Accessory Power Relay 1 | - | F20DA, F21DA (-AVJ), F22DA, F41DA, F42DA Fuses |
| 2 | - | KR76B Retained Accessory Power Relay 2 | - | Fuse F21DA (AVJ) |
| 3 | - | KR74 Ignition Run Relay | - | F17DA, F18DA, F19DA, F40DA Fuses |
| 4 | - | KR104A Battery Saver Relay 1 | - | F24DA, F25DA, F26DA, F27DA, F28DA Fuses |
