Suburban 3500 HD LS
›
Repair and Diagnosis
›
Body & Frame
›
Door Locks
›
Keyless Entry System And Remote Functions
›
Schematic Wiring Diagrams
›
Remote Function Wiring Schematics
›
Keyless Entry - Passive, and Keyless Start
Keyless Entry - Passive, and Keyless Start

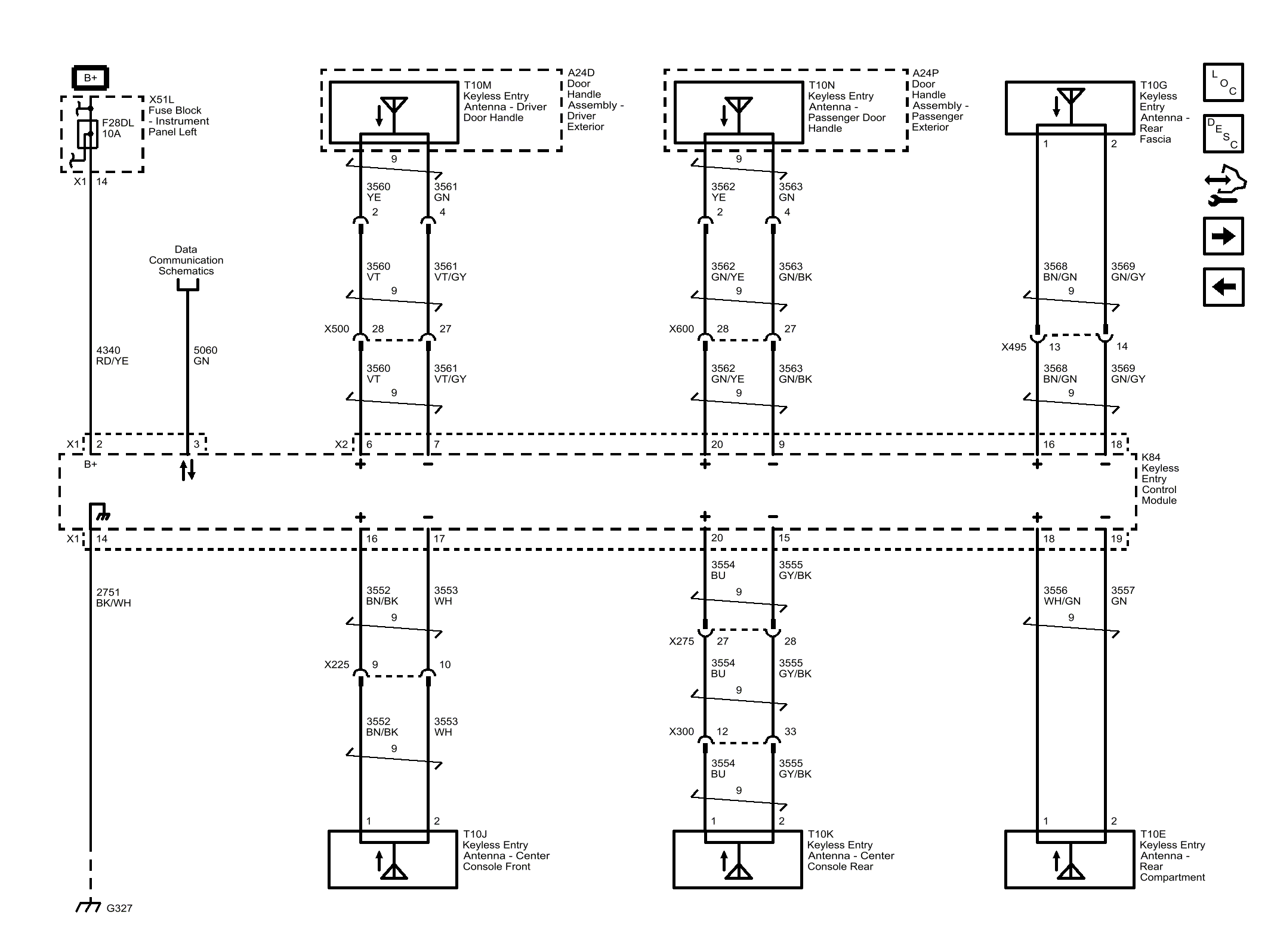

Fig 1: Keyless Entry - Passive, and Keyless Start
