Driver or Passenger Seat Adjuster Memory Module Replacement

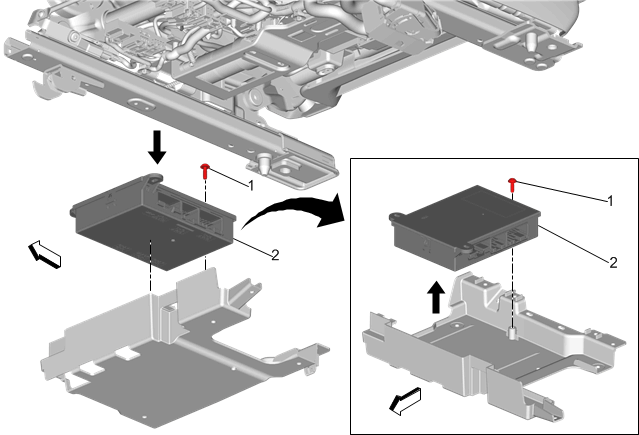

Fig 1: Driver or Passenger Seat Adjuster Memory Module
GM3944203Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the front seat adjuster memory module bracket. Refer to Front Seat Adjuster Memory Module Bracket Replacement .
1 Driver or Passenger Seat Adjuster Memory Module Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Driver or Passenger Seat Adjuster Memory Module

Procedure

  1. Disconnect electrical connectors.
  2. Remove the module from the driver seat bracket.
  3. Refer to Control Module References for programing and setup information.
