Front Seat Heater Control Module Replacement

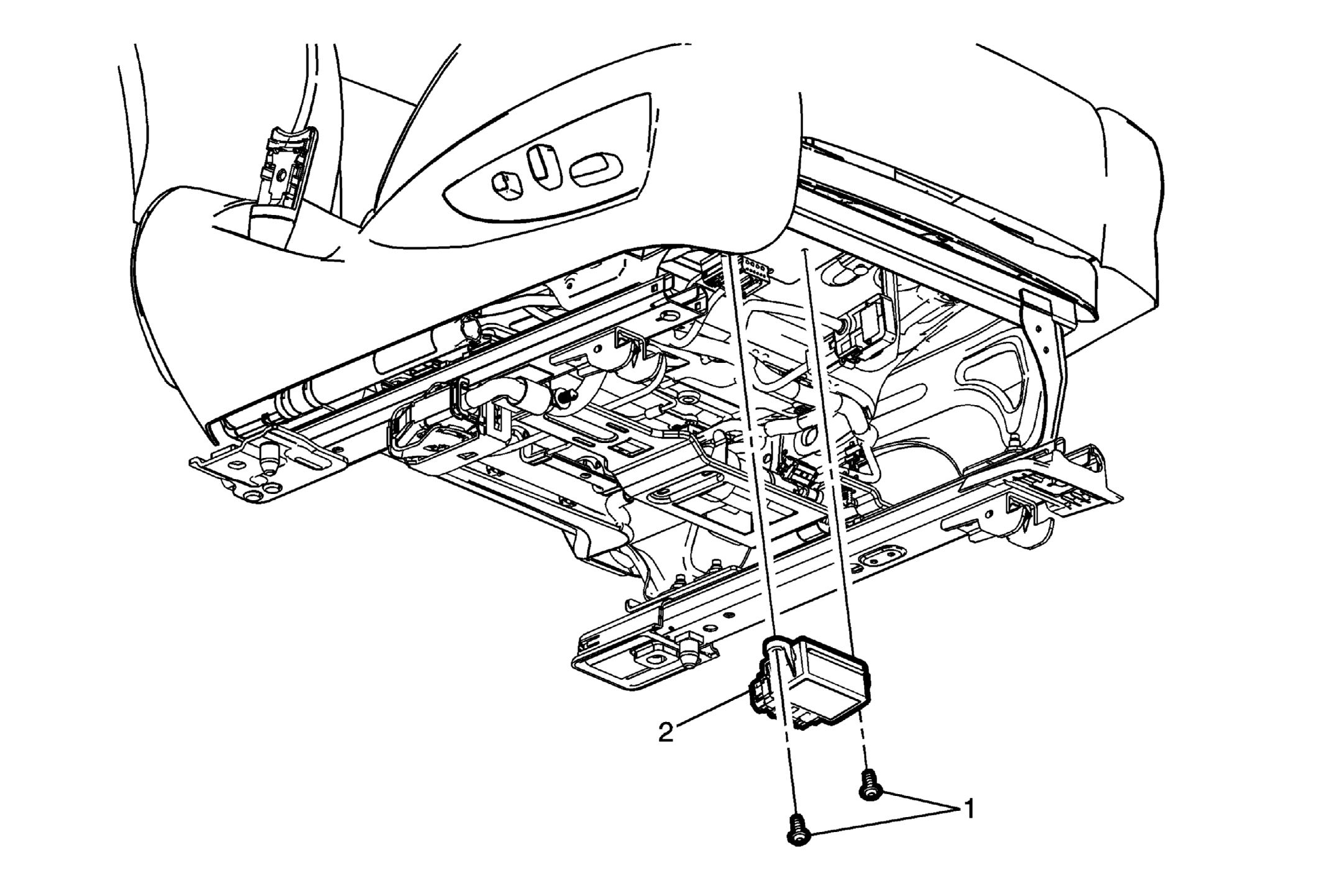

Fig 1: Front Seat Heater Control Module
GM3257040Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation
1 Front Seat Heater Control Module Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Front Seat Heater Control Module

Procedure

  1. Disconnect the electrical connector.
  2. Refer to Control Module References for programing and setup information.
