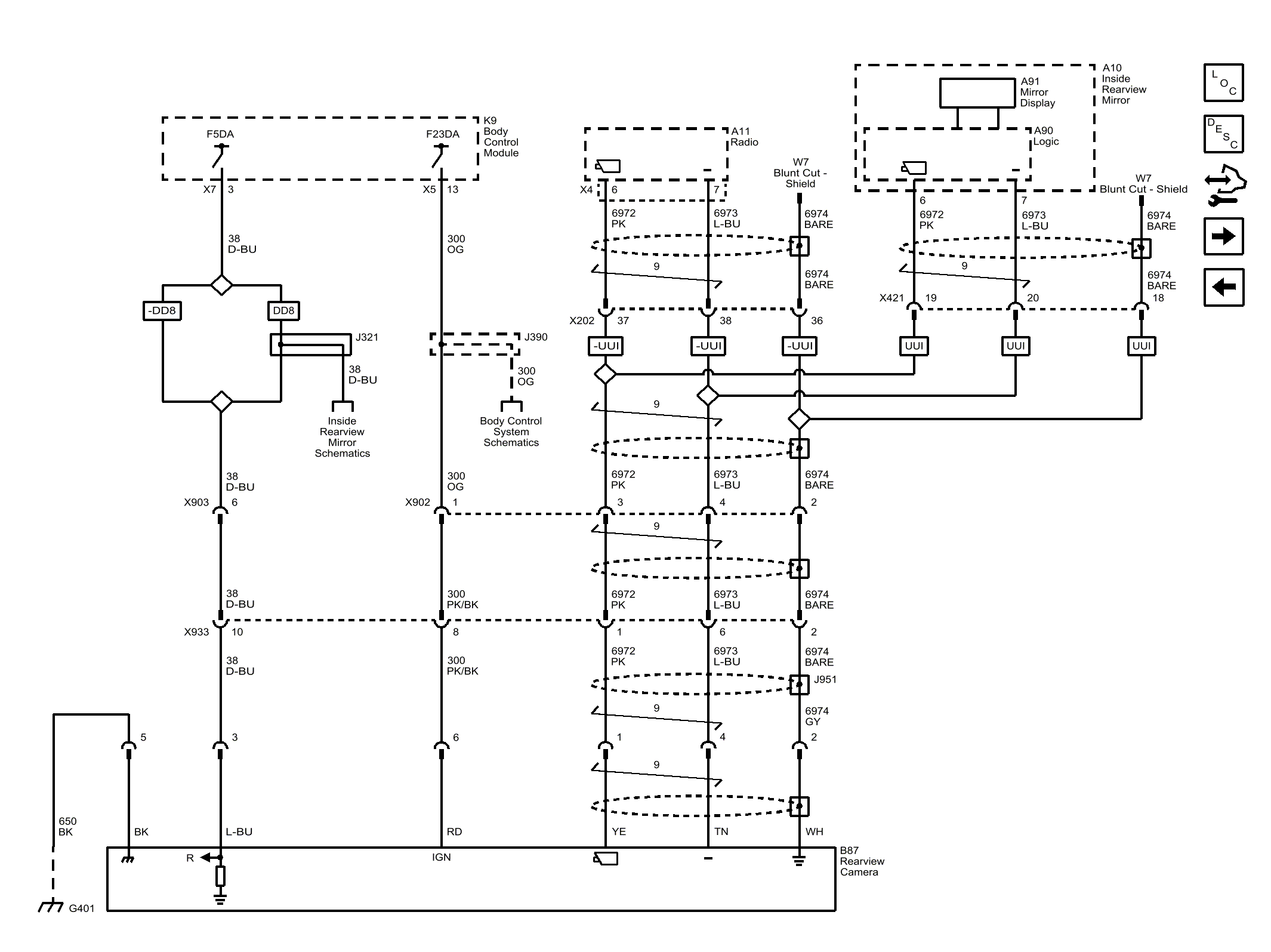

Home › Chevrolet › 2017 › Traverse LS Base › Repair and Diagnosis › Accessories & Equipment › Collision/Avoidance › Object Detection System And Pedestrian Protection System › Schematic Wiring Diagrams › Object Detection Wiring Schematics › Rear Vision Camera (UVC)
