Lane Departure Warning and Forward Collision Alert (UVF)

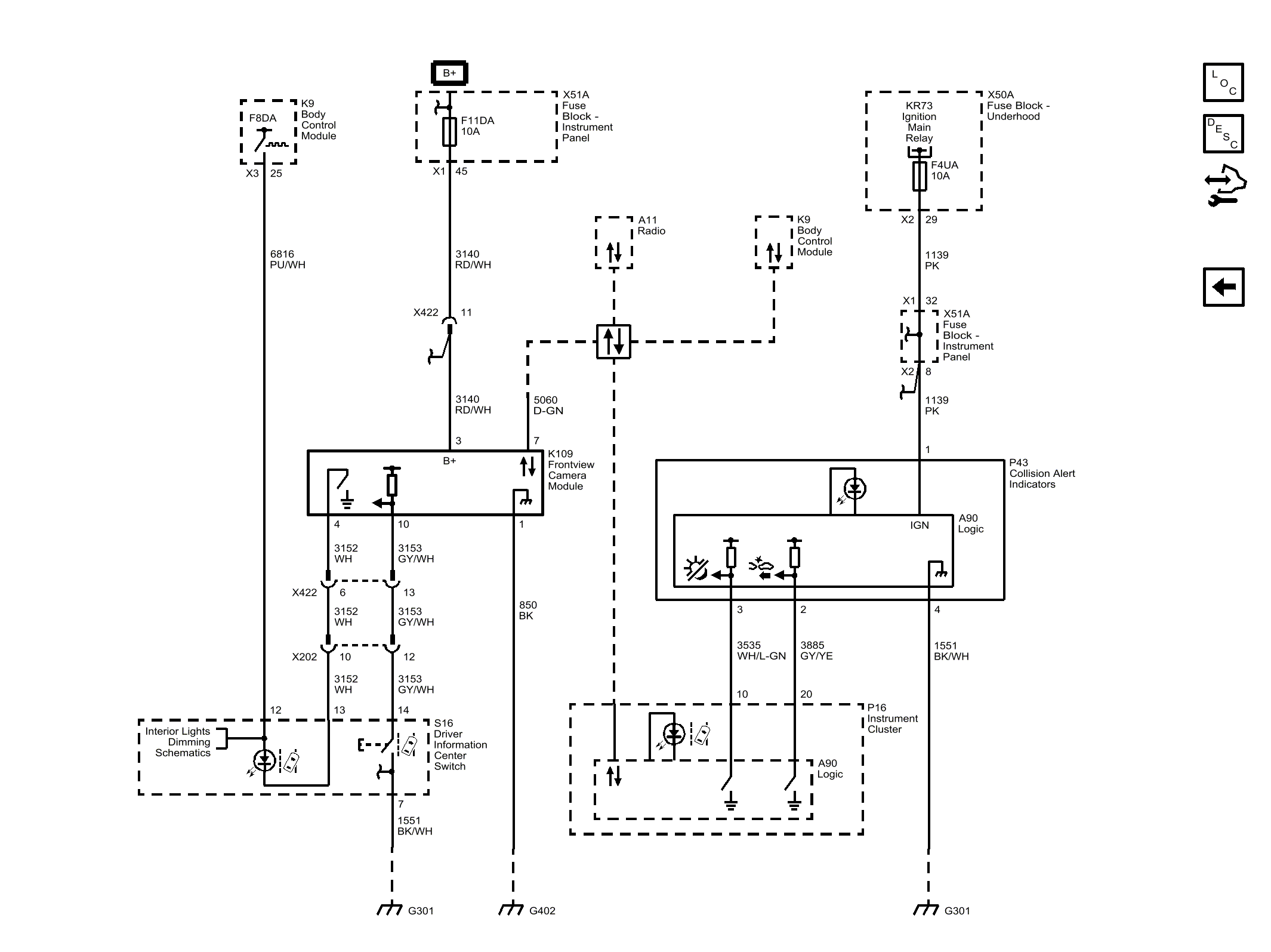

Fig 1: Lane Departure Warning and Forward Collision Alert (UVF)
GM4406442Courtesy of GENERAL MOTORS COMPANY
