Steering Wheel Secondary/Configurable Control Wiring Schematics: UK3

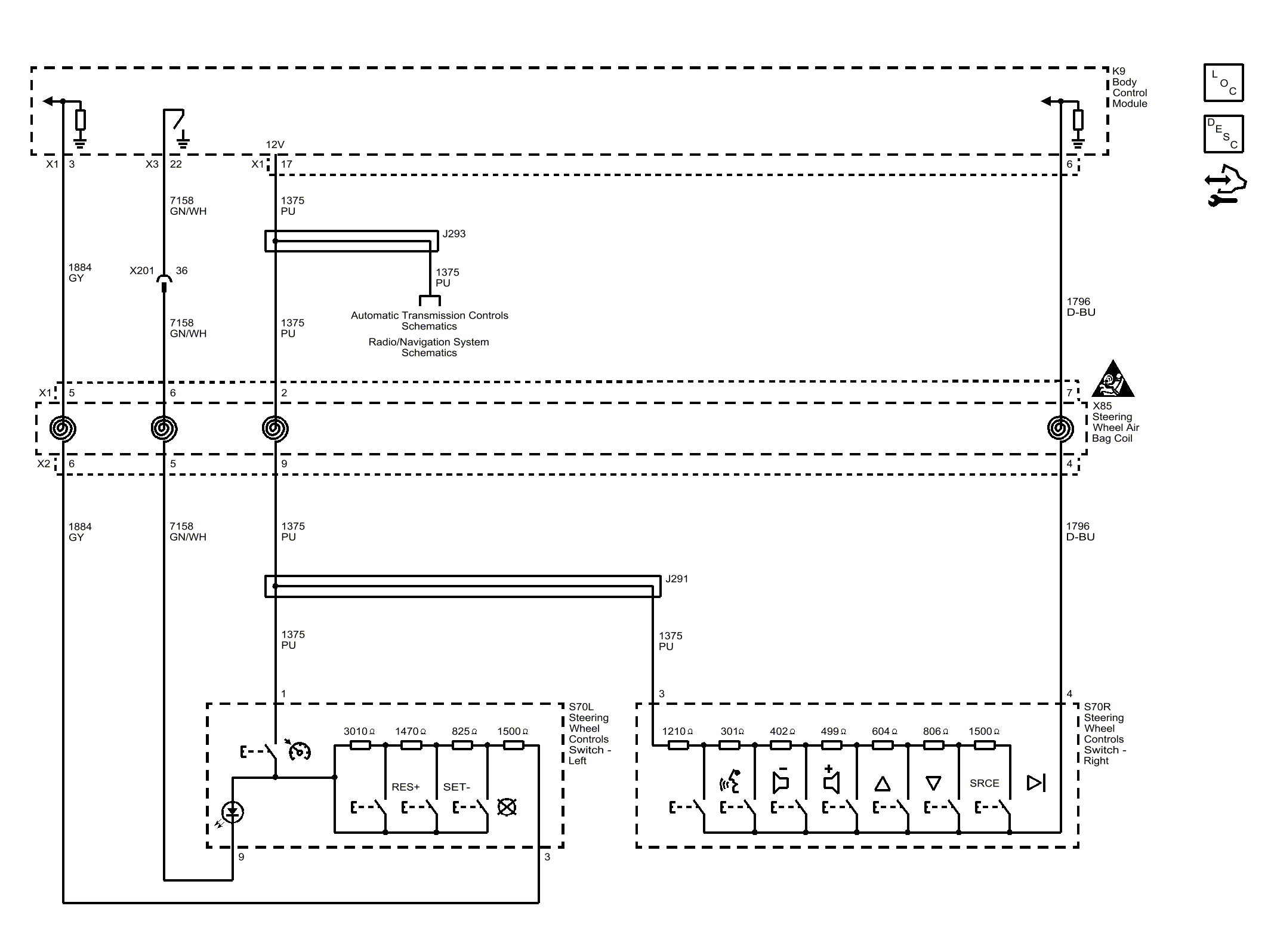

Fig 1: UK3
GM4405836Courtesy of GENERAL MOTORS COMPANY
