Installation Procedure

    CAUTION:

    Check alignment of the wiper cover sprocket and breather. A misaligned wiper cover sprocket may result in component damage.

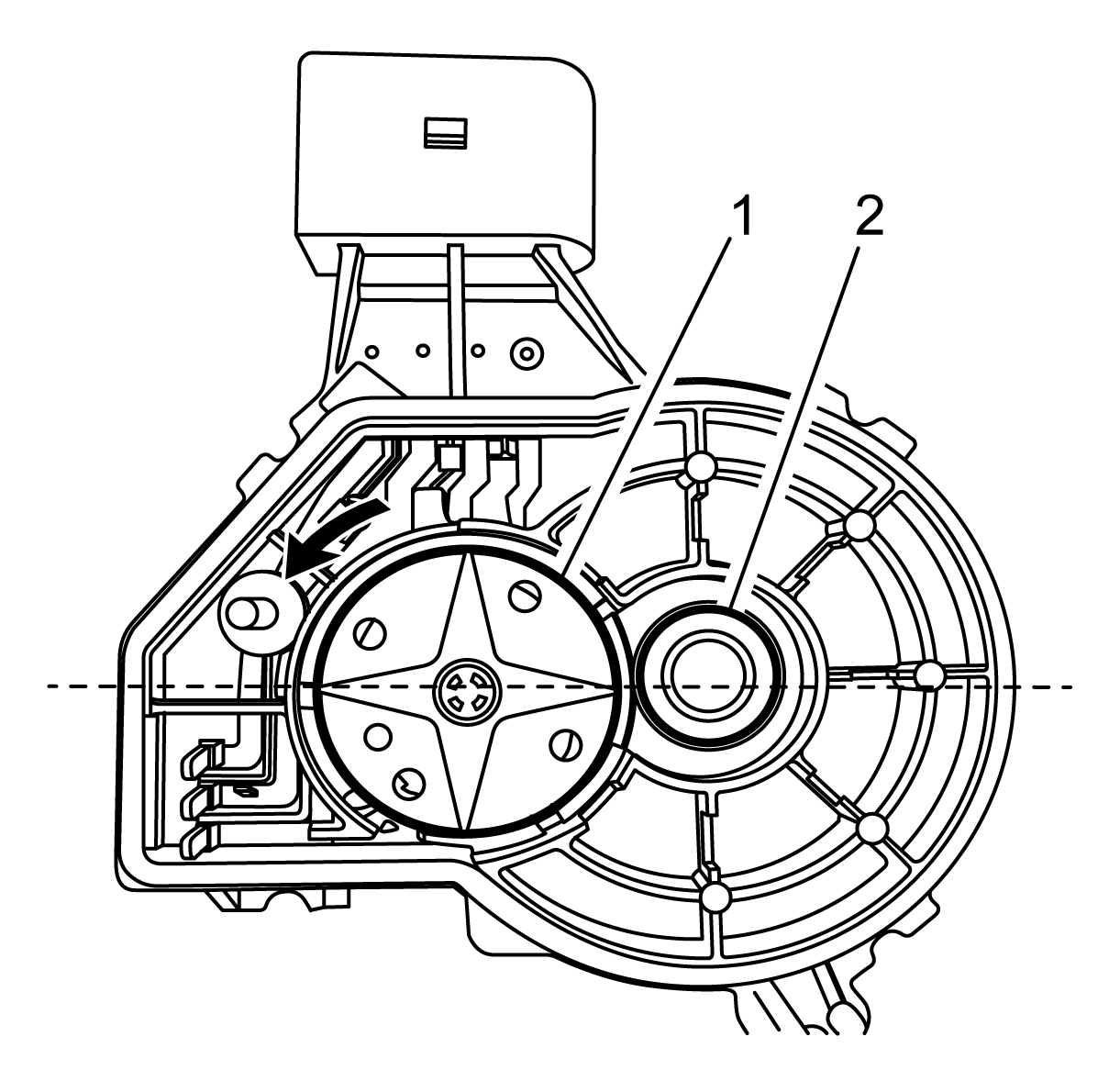

    Fig 1: Aligning Sprocket With Breather
    GM4293375Courtesy of GENERAL MOTORS COMPANY
  1. Turn the sprocket counterclockwise to align the sprocket with the breather on the NEW windshield wiper motor cover.

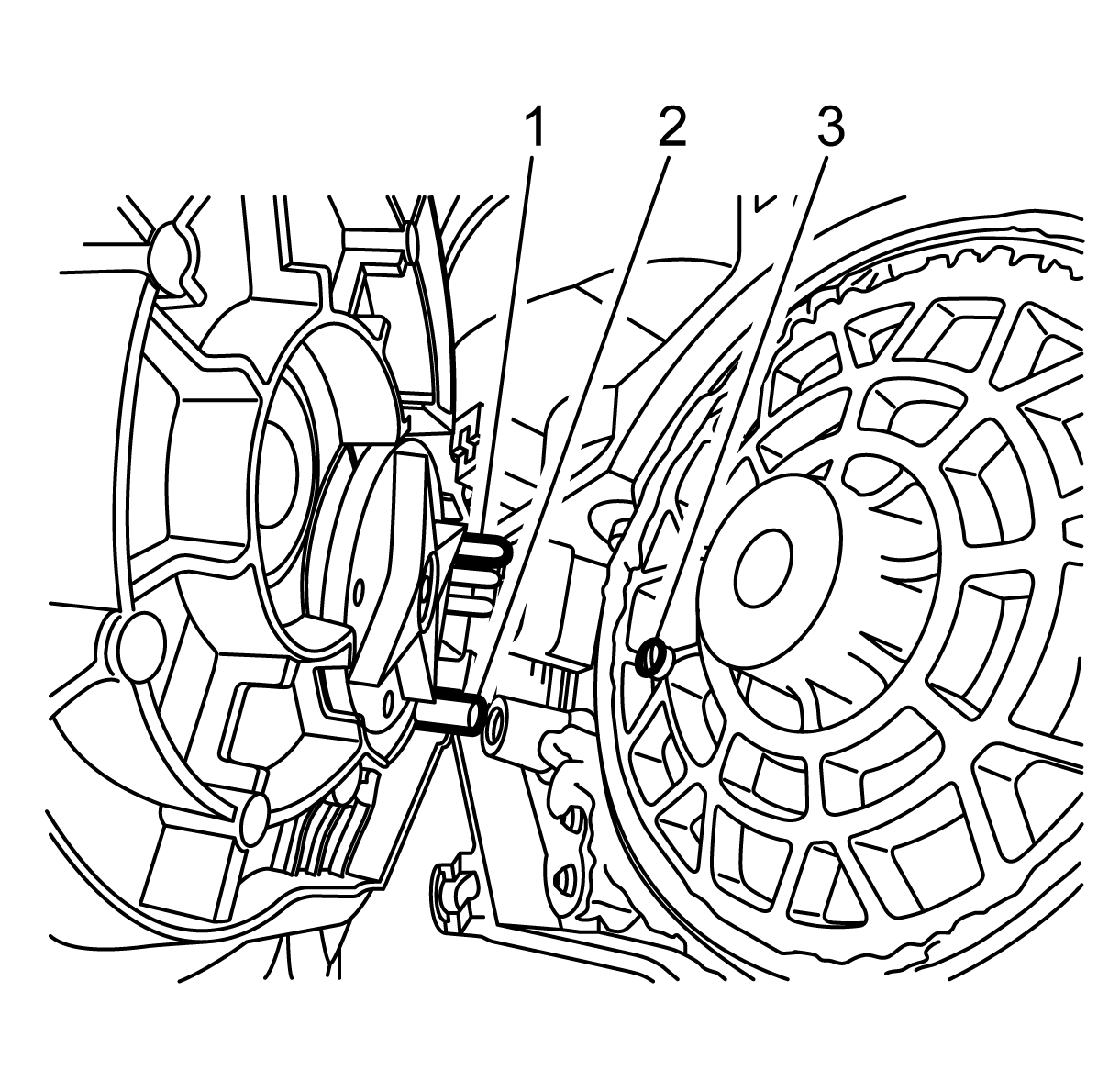

    2. Fig 2: Terminals, Pin A And Park Pin
    GM4293380Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • Ensure that the terminals and pins are properly aligned before completely installing the cover to the motor.
    • The park pin should align to one of the holes between the fingers in the cover.
  2. Carefully install the windshield wiper motor cover on the windshield wiper motor, aligning the terminals (1), pin A (2) and the Park Pin (3).

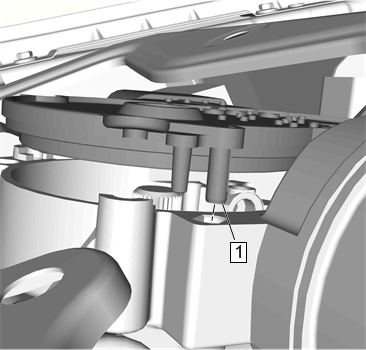

    3. Fig 3: Windshield Wiper Cover To Align Pin B
    GM4293357Courtesy of GENERAL MOTORS COMPANY
  3. Push down carefully on the windshield wiper cover to align pin B.

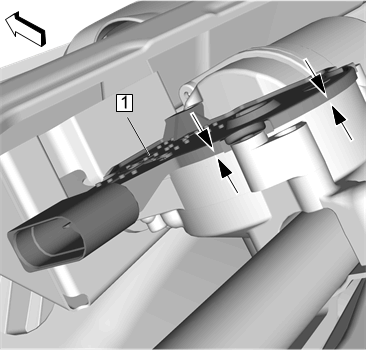

    4. Fig 4: Windshield Wiper Motor Cover
    GM4292308Courtesy of GENERAL MOTORS COMPANY
  4. Verify the windshield wiper motor cover lays flush on the windshield wiper motor.

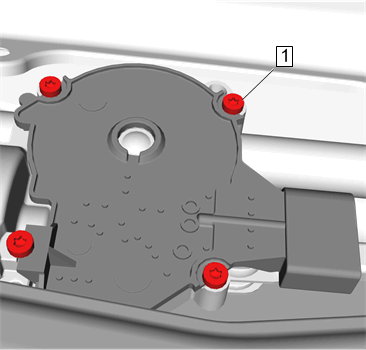

    5. Fig 5: Windshield Wiper Motor Cover Fastener
    GM4292312Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Install and tighten the fasteners in a "X" pattern.

  5. Install Windshield Wiper Motor Cover Fastener and tighten to 3.5 N.m (31 lb in)
  6. Verify the windshield wiper motor cover fasteners lay flush on the windshield wiper motor cover.
  7. Connect the electrical connector.
  8. Verify proper windshield wiper motor operation.

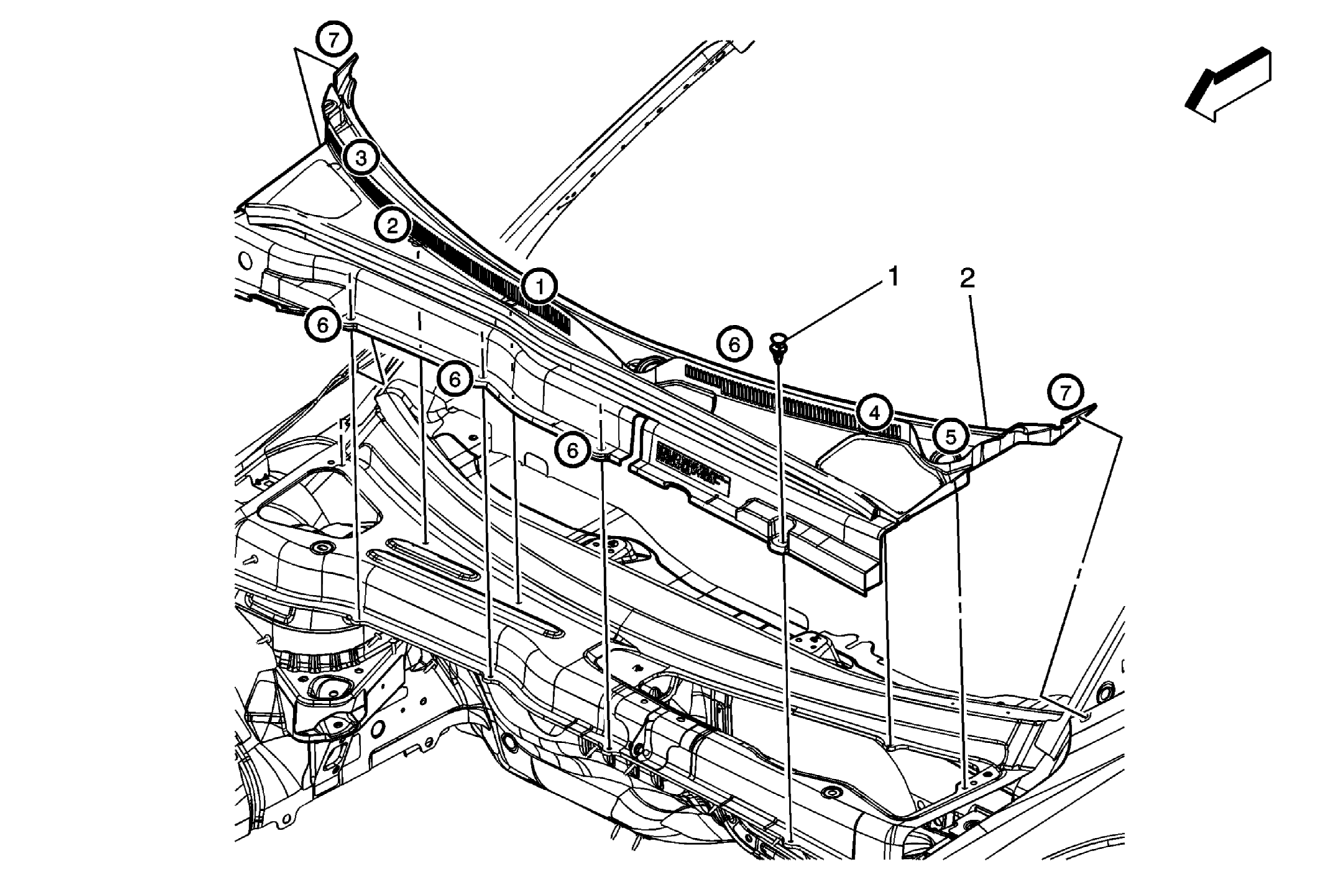

    9. Fig 6: Air Inlet Grille Panel
    GM1864983Courtesy of GENERAL MOTORS COMPANY
  9. Install Air Inlet Grille Panel - Air Inlet Grille Panel Replacement
  10. Verify proper windshield wiper motor operation.
