Door Lock Switch Replacement - Passenger Front

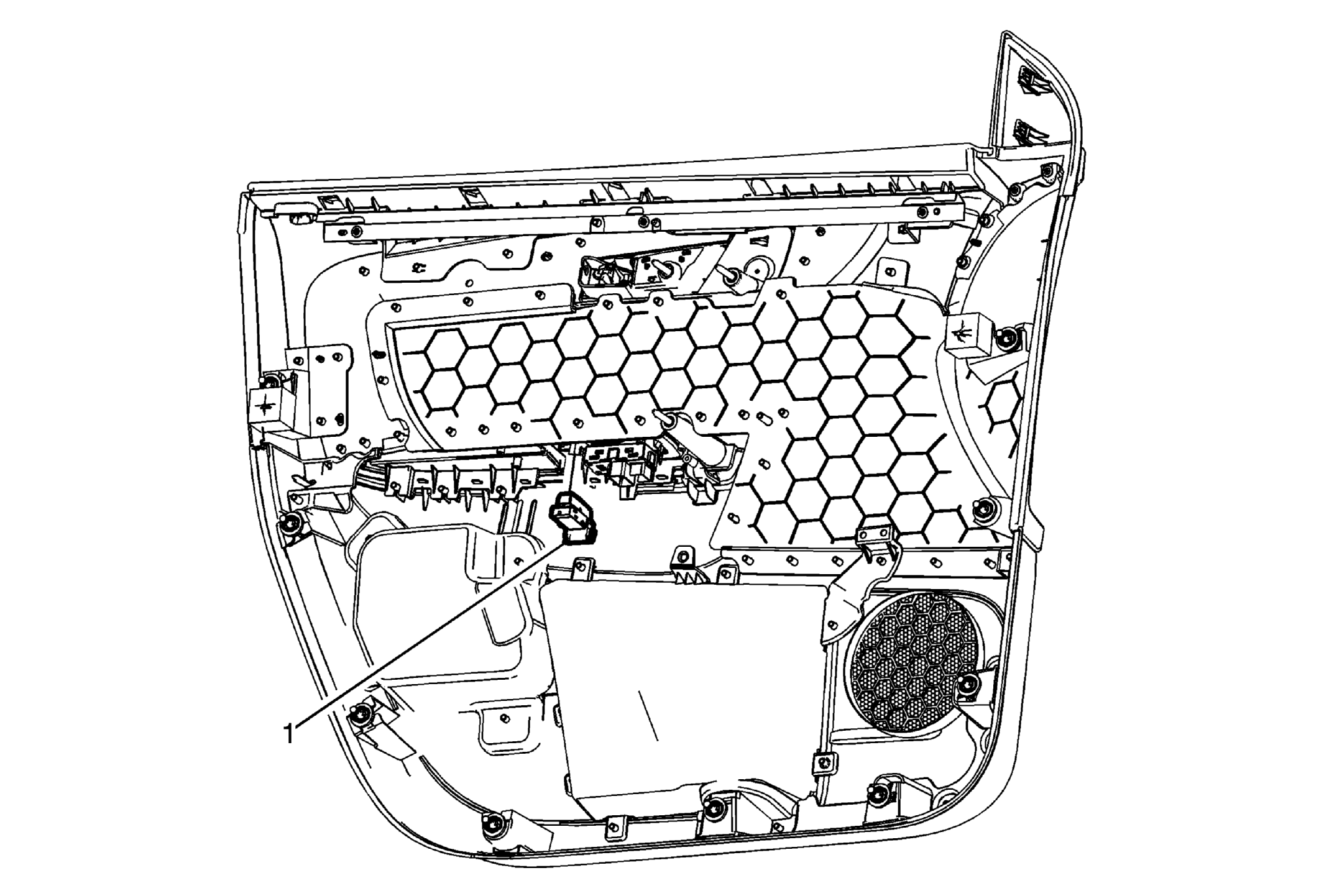

Fig 1: Door Lock Switch - Passenger Front

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Panel Replacement - Right Side (Enclave)Front Side Door Trim Panel Replacement - Right Side (Acadia or Traverse) .
1	Door Lock Switch Passenger Front Assembly Procedure Release tabs on switch to remove from front side door trim panel. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Door Lock Switch Passenger Front Assembly

Procedure
