Liftgate Close Actuator Bracket Replacement

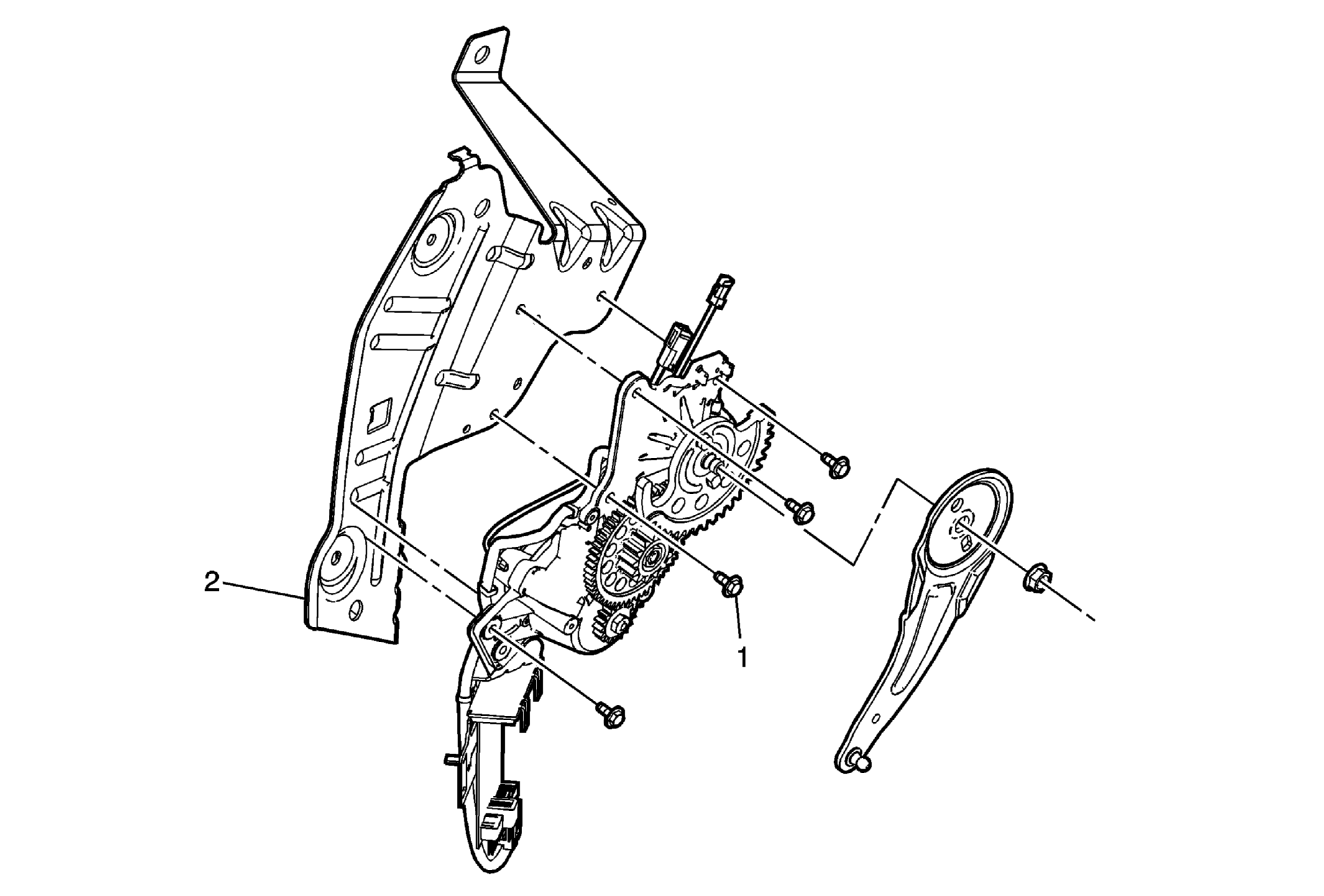

Fig 1: Liftgate Close Actuator Bracket

GM1848747

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the body side trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Traverse with TB5)Quarter Lower Rear Trim Panel Replacement (Traverse with TB4)Quarter Lower Rear Trim Panel Replacement (Enclave with TB5)Quarter Lower Rear Trim Panel Replacement (Enclave with TB4)Quarter Lower Rear Trim Panel Replacement (Acadia with TB5)Quarter Lower Rear Trim Panel Replacement (Acadia with TB4) .
Remove the liftgate close actuator control module. Refer to Liftgate Actuator Replacement .

1

Liftgate Close Actuator Bracket Bolt (Qty: 5)

CAUTION:

Refer to Fastener Caution .

Tighten
30 N.m (22 lb ft)

2

Liftgate Close Actuator Bracket
