KA1 and KB6 Subsystem References

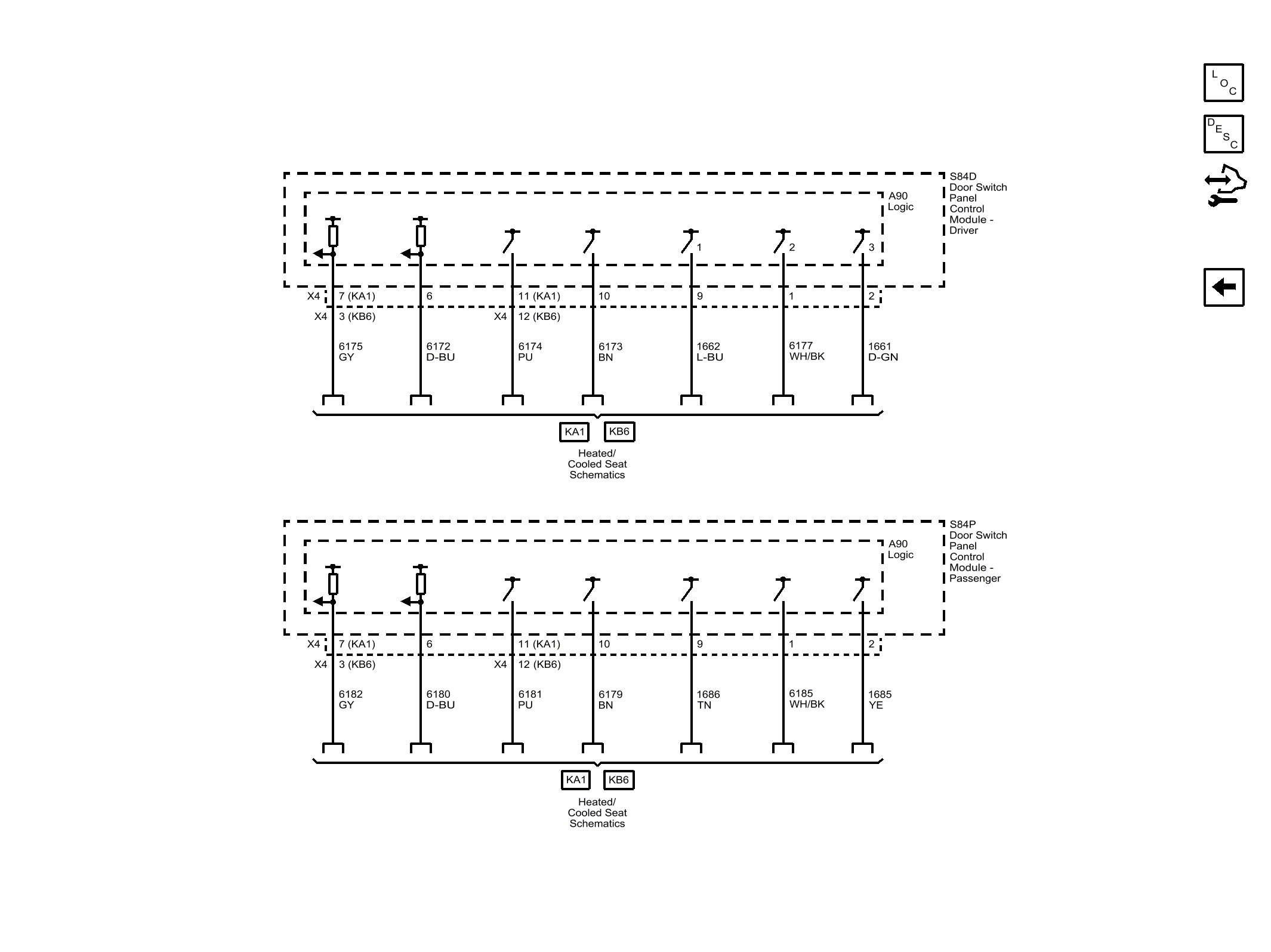

Fig 1: KA1 and KB6 Subsystem References
GM4405705Courtesy of GENERAL MOTORS COMPANY
