Installation Procedure

  1. Clean the frame insulator opening.
  2. Apply a thin coat of rubber lubricant GM P/N 1051717 (Canadian P/N 5728223), or equivalent to the inside of the frame insulator opening.
  3. Apply a thin coat of rubber lubricant GM P/N 1051717 (Canadian P/N 5728223), or equivalent to the frame insulator.

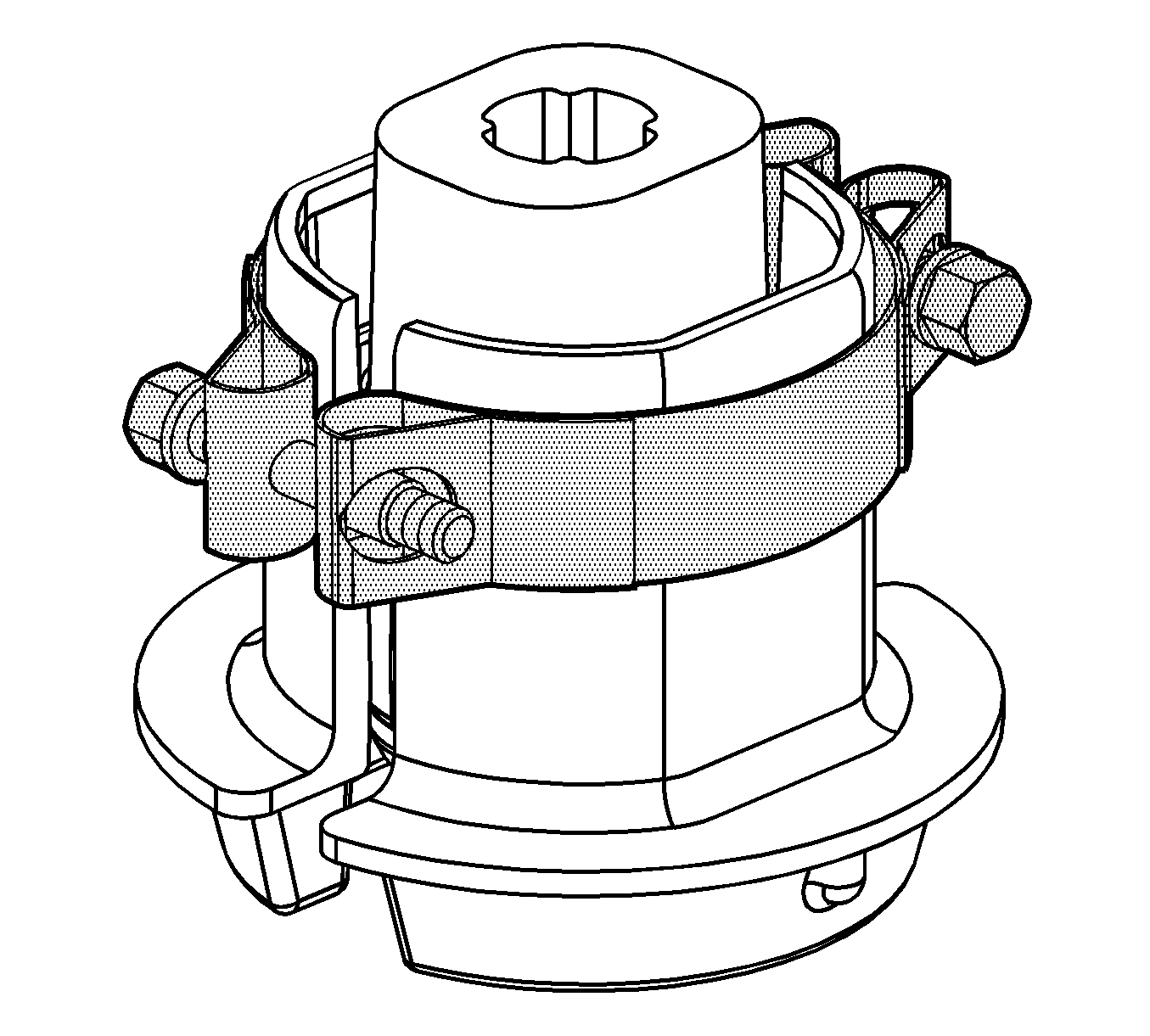

  4. Fig 1: Frame Bushing Installer
    GM1855957Courtesy of GENERAL MOTORS COMPANY
  5. Install clamp J 45725  Installer onto the insulator about 1/8 inch from the top of the insulator.

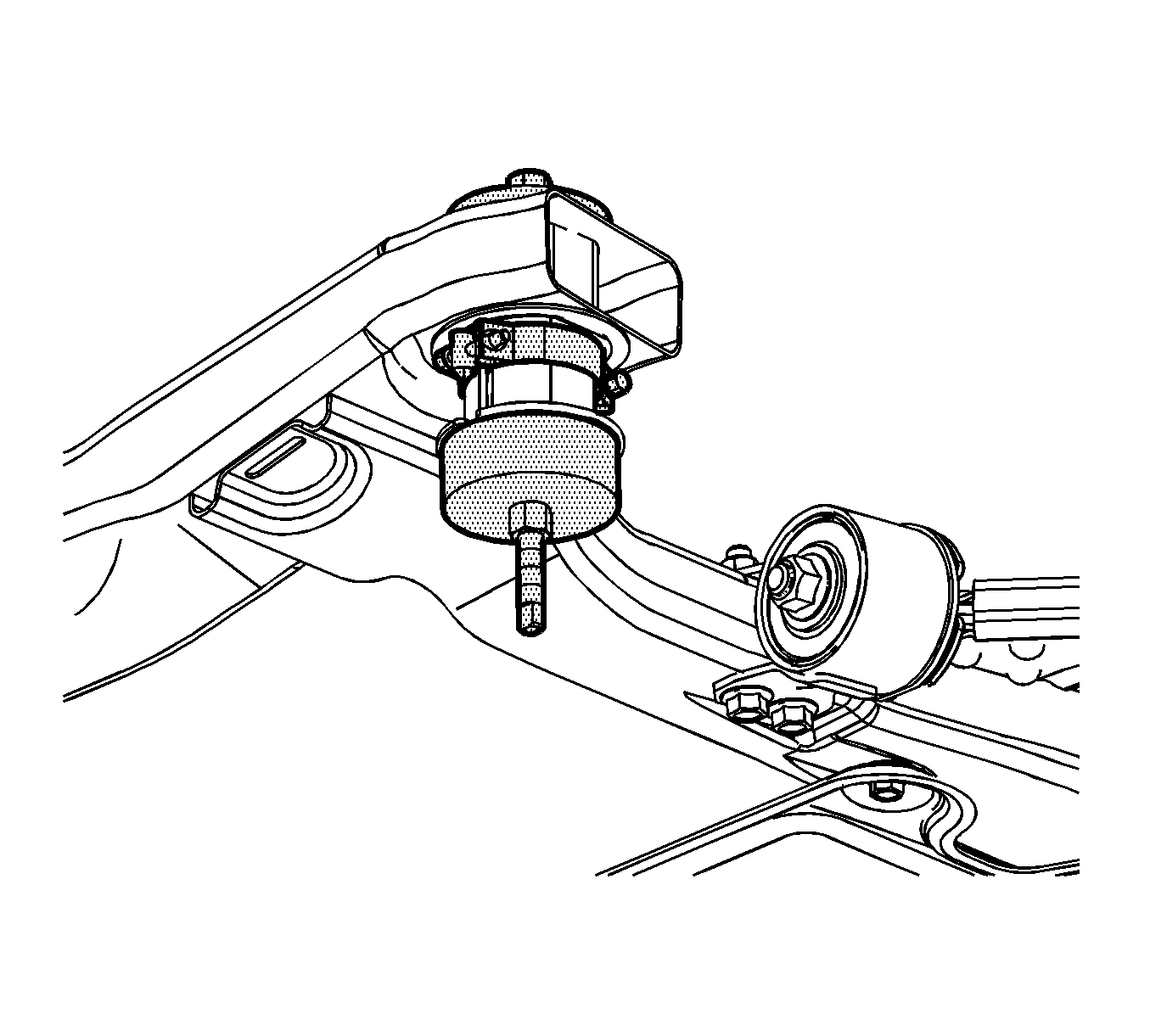

  6. Fig 2: Special Tool, Insulator & Frame
    GM1855954Courtesy of GENERAL MOTORS COMPANY
  7. Align the split of the insulator to the front of the frame.
  8. Install J 45725  Installer to the insulator and the frame.

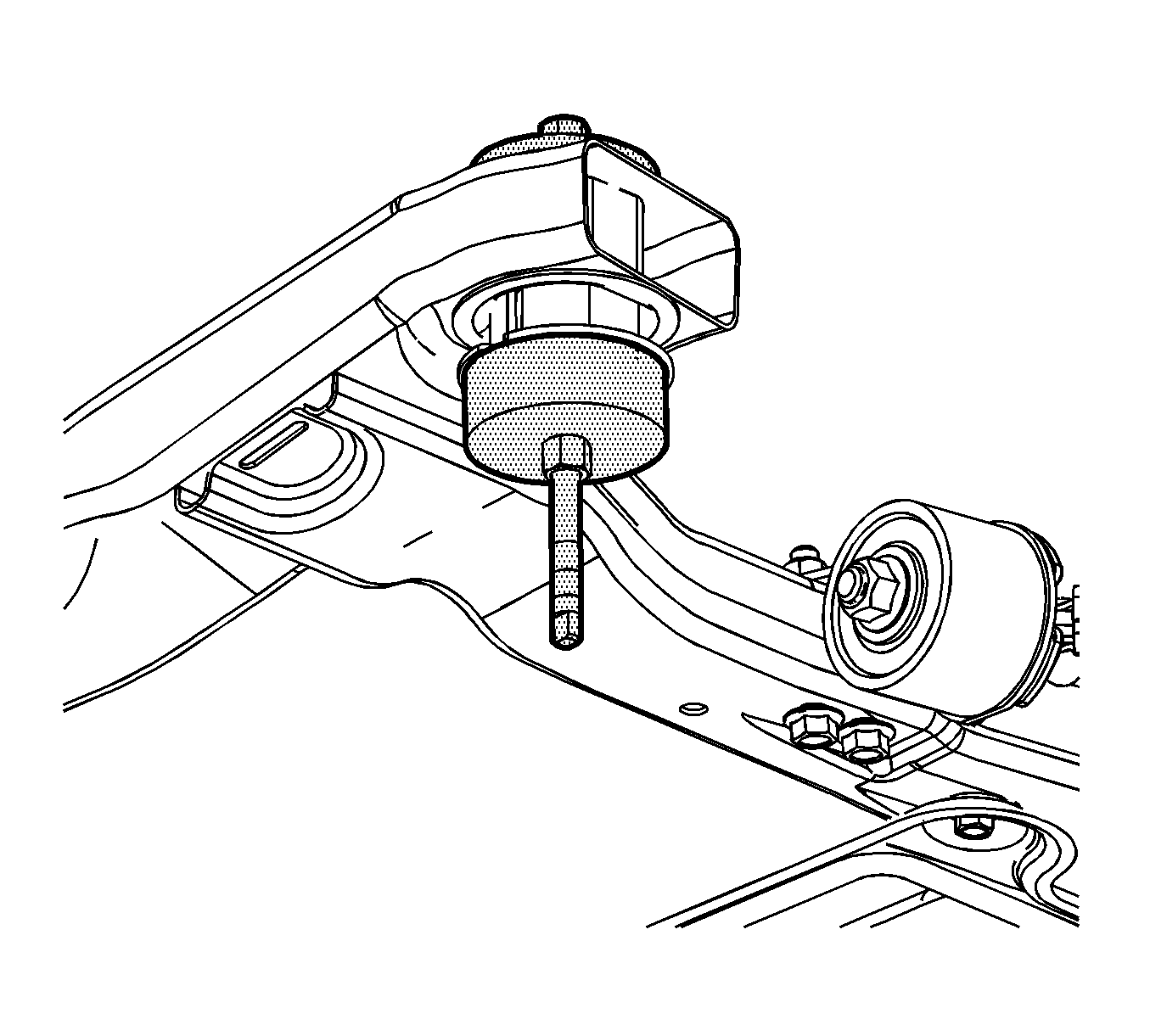

  9. Fig 3: Insulator Halfway Recessed
    GM1855955Courtesy of GENERAL MOTORS COMPANY
  10. Using J 45725  Installer install the insulator until the insulator is halfway recessed in the frame.
  11. Remove only the clamp J 45725  Installer.

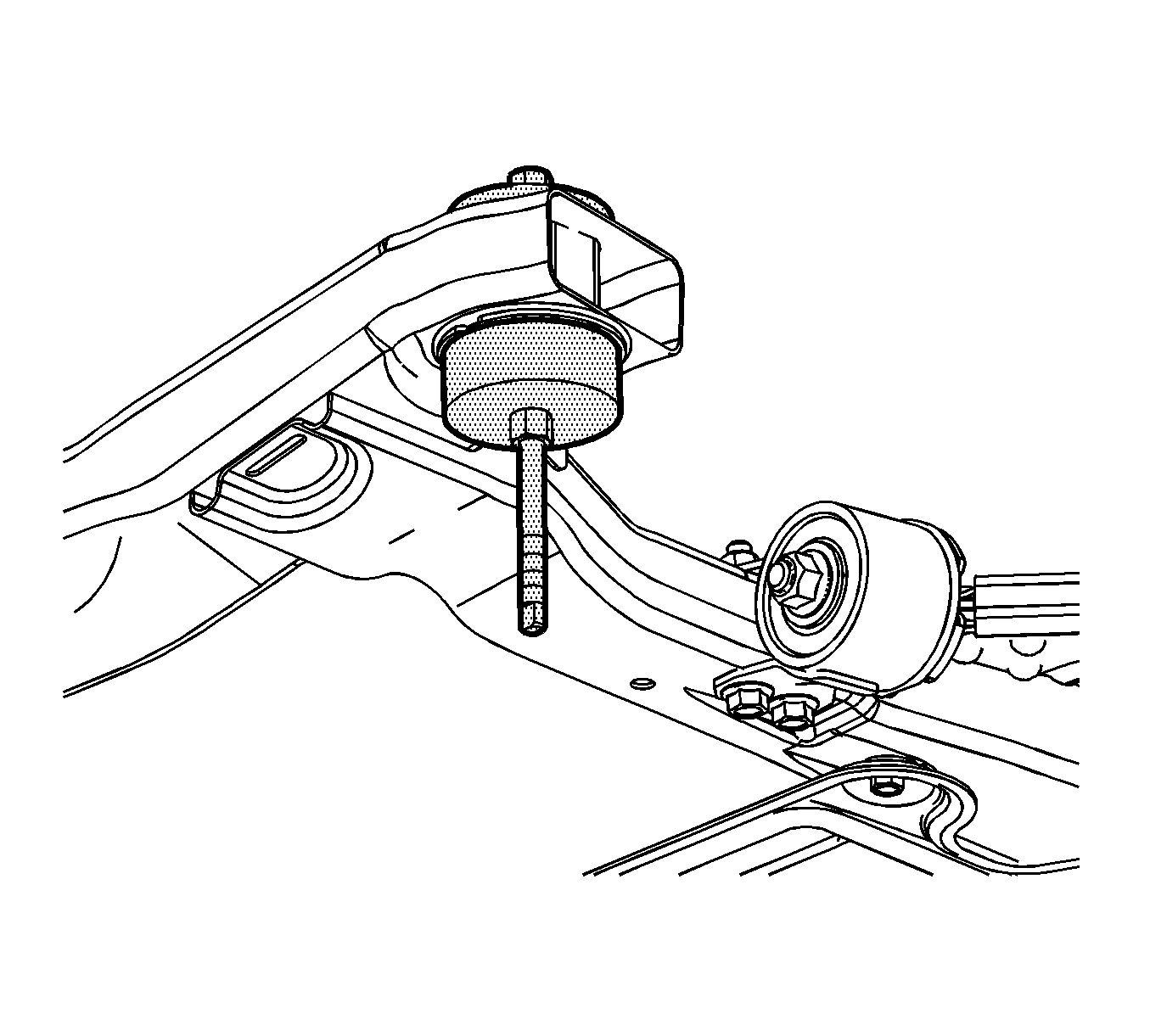

  12. Fig 4: Insulator Fully Seated
    GM1855956Courtesy of GENERAL MOTORS COMPANY
  13. Using J 45725  Installer continue installing the insulator until the flange lip of the insulator is fully seated to the bottom of the frame.
  14. Remove J 45725  Installer from the insulator and the frame.

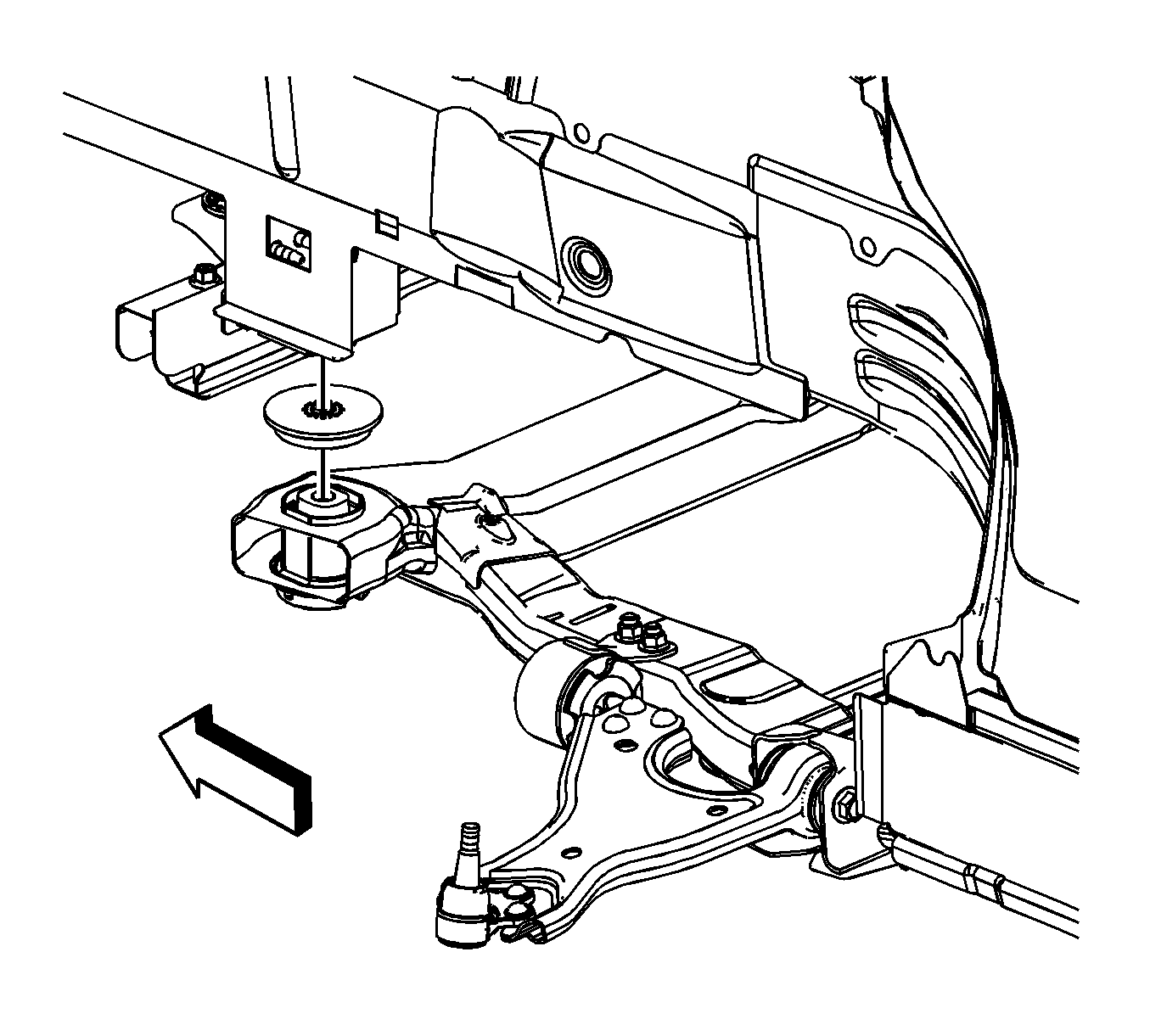

  15. Fig 5: Upper Insulator
    GM1855952Courtesy of GENERAL MOTORS COMPANY
  16. Install the upper insulator.
  17. Raise the front of the frame.
  18. Fig 6: Front Crossmember Brace & Bolts
    GM1855951Courtesy of GENERAL MOTORS COMPANY
  19. Install the front crossmember brace (1).
  20. CAUTION:

    Refer to Fastener Caution .

    NOTE:

    If the frame insulator bolt does not screw in smoothly, run a tap through the frame nut in the body in order to remove foreign material. Ensure the tap does not punch through the underbody.

    Do not over tighten the insulator. Over tightening may collapse a spacer or strip a bolt.

  21. Install the front frame to body bolts (2).

    Tighten

    Tighten the bolts to 110 N.m (81 lb ft) plus 90 degrees.

  22. Install the front crossmember brace bolts (3).

    Tighten

    Tighten the bolt to 50 N.m (37 lb ft).

  23. Remove the jackstand.
  24. Fig 7: Locating Steering Gear Stub Shaft
    GM1852431Courtesy of GENERAL MOTORS COMPANY
  25. Connect the intermediate shaft to the steering gear stub shaft. Refer to Intermediate Steering Shaft Replacement .
  26. Lower the vehicle.
