Driver or Passenger Seat Lumbar Support Replacement

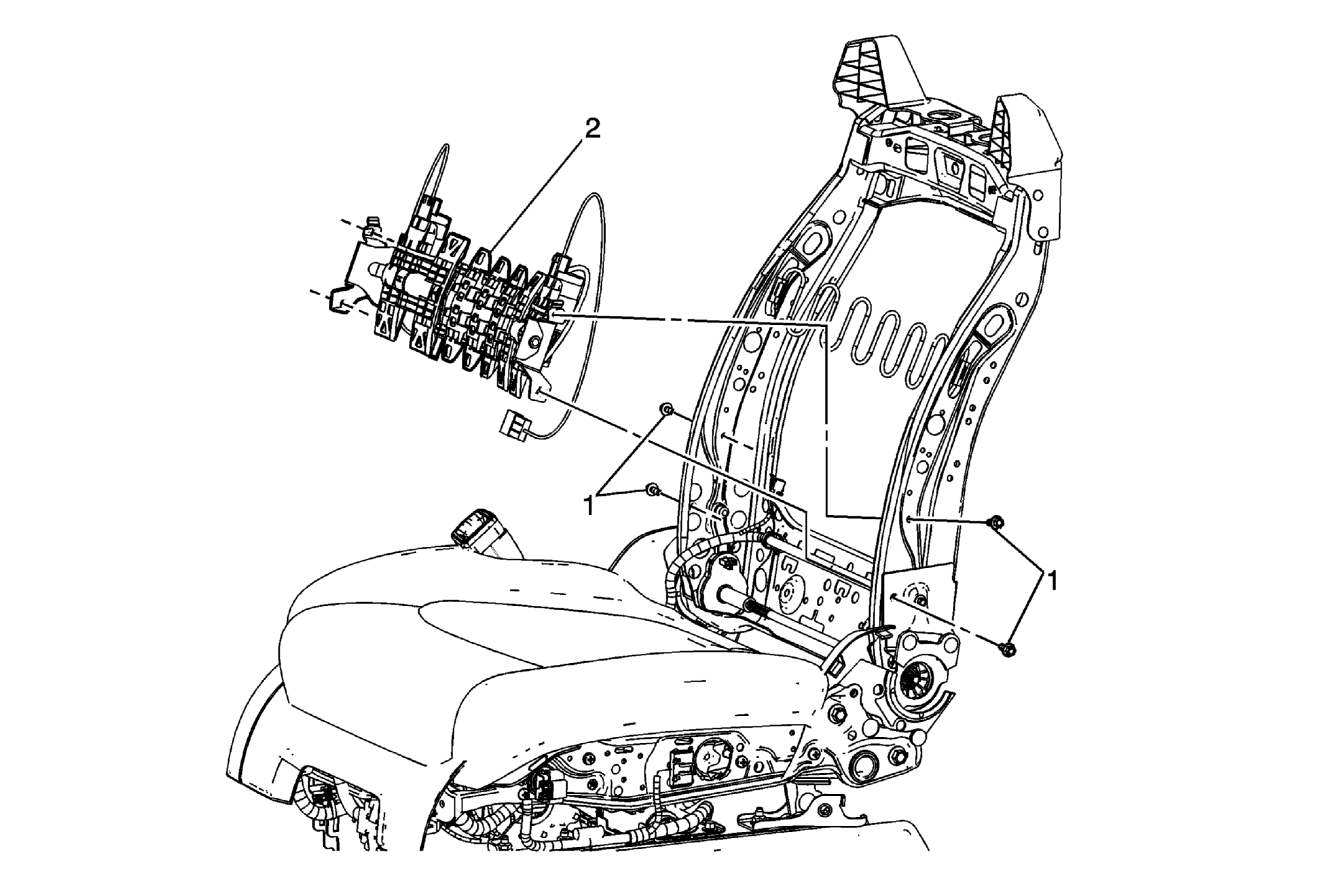

Fig 1: Driver or Passenger Seat Lumbar Support

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front seat back cushion cover j-clips and reposition the seat back cushion cover to gain access to the lumbar support and bolts.
1	Front Seat Lumbar Assembly Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Front Seat Lumbar Assembly Procedure  Disconnect the electrical connector.
