Front Side Door Window Belt Inner Sealing Strip Replacement

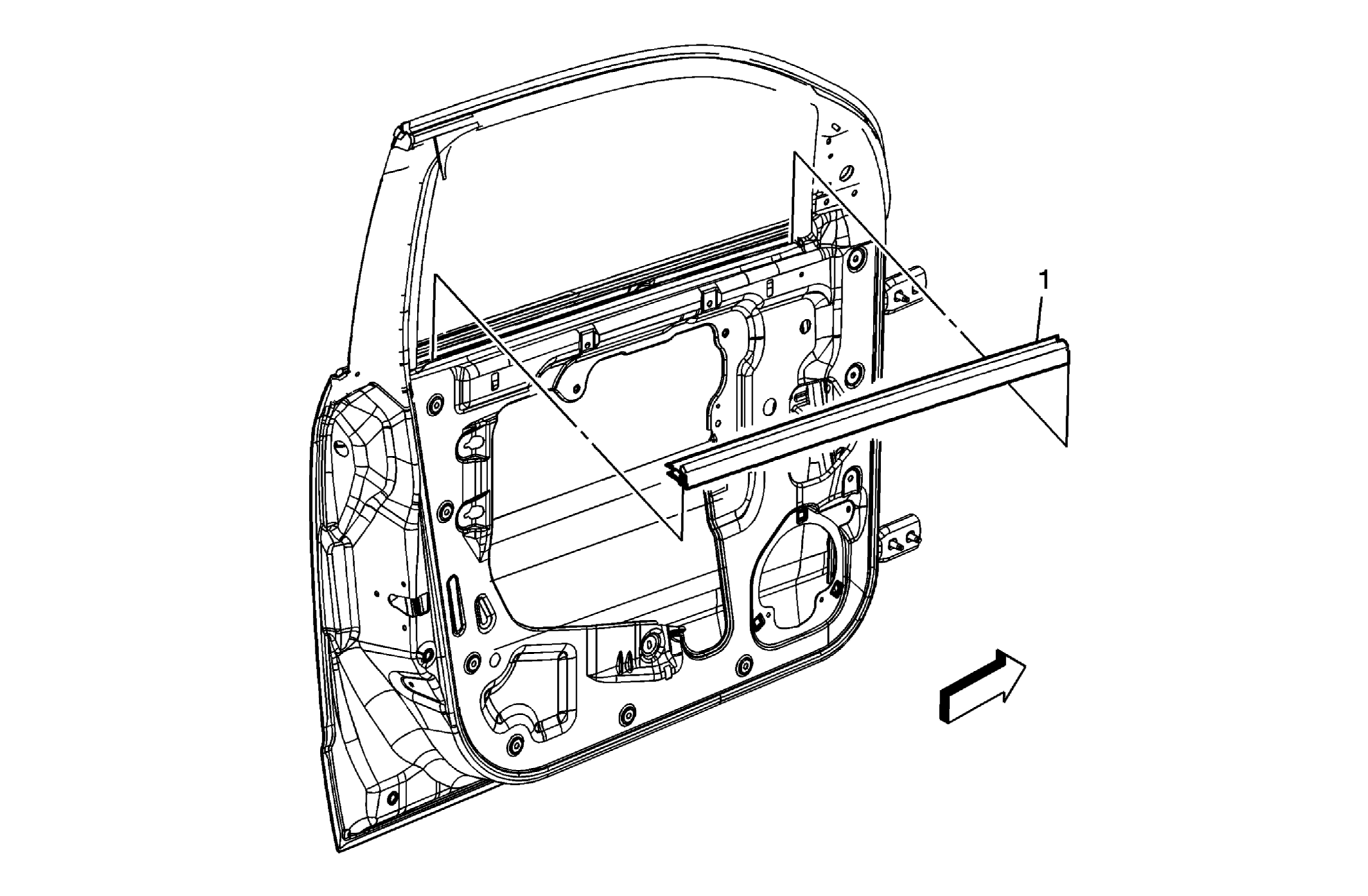

Fig 1: Front Side Door Window Belt Inner Sealing Strip

GM1718895

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures
Remove front door trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Acadia or Traverse)Front Side Door Trim Panel Replacement - Left Side (Enclave) , or Front Side Door Trim Panel Replacement - Right Side (Enclave)Front Side Door Trim Panel Replacement - Right Side (Acadia or Traverse) .

1

Front Side Door Inner Window Sealing Strip

Procedure

Start from the front edge of the door, pull upward on the inner window sealing strip to release it from the pinch-weld flange.
Install the inner window sealing strip to the front edge of the door, press firmly onto the pinch-weld flange and work it rearward.
