Front Side Door Window Rear Channel Replacement (Enclave)

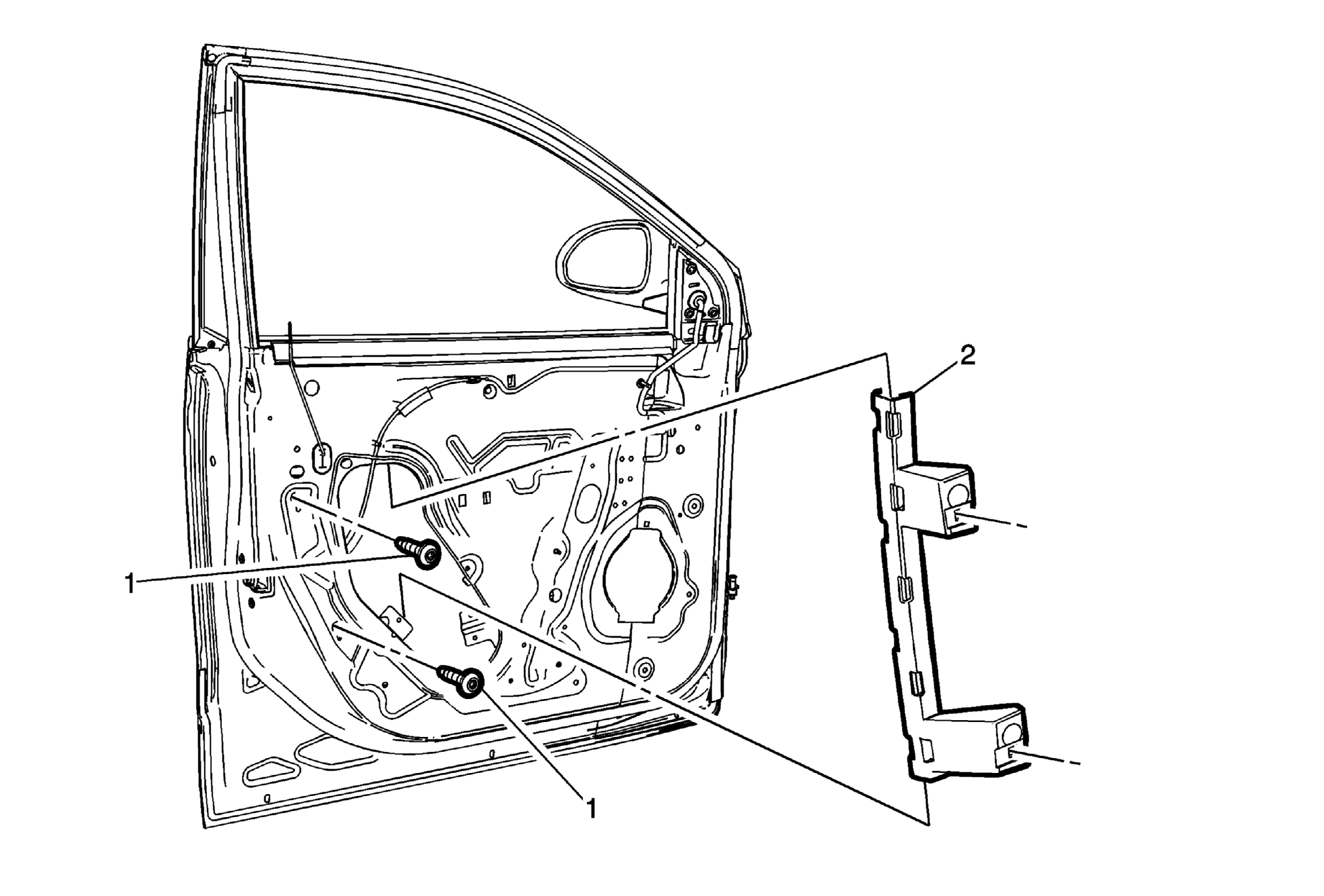

Fig 1: Front Side Door Window Rear Channel (Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Panel Replacement - Left Side (Enclave) .
1	Front Side Door Window Rear Channel Bolts (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Remove the water deflector Tighten 10 N.m (89 lb in)
2	Front Side Door Window Rear Channel Procedures Pull the front side door window inner weatherstrip out of the window rear channel. Work the weatherstrip down in the lower window channel until fully seated. Inspect the door window for proper operation.

Callout

Component Name

Preliminary Procedure
Remove the front side door trim. Refer to Front Side Door Trim Panel Replacement - Left Side (Enclave) .

Front Side Door Window Rear Channel Bolts (Qty: 2)

CAUTION:

Procedure
Remove the water deflector
Tighten
10 N.m (89 lb in)

Front Side Door Window Rear Channel

Procedures

Pull the front side door window inner weatherstrip out of the window rear channel.
Work the weatherstrip down in the lower window channel until fully seated.
Inspect the door window for proper operation.
