Rear Side Door Window Inner Sealing Strip Replacement

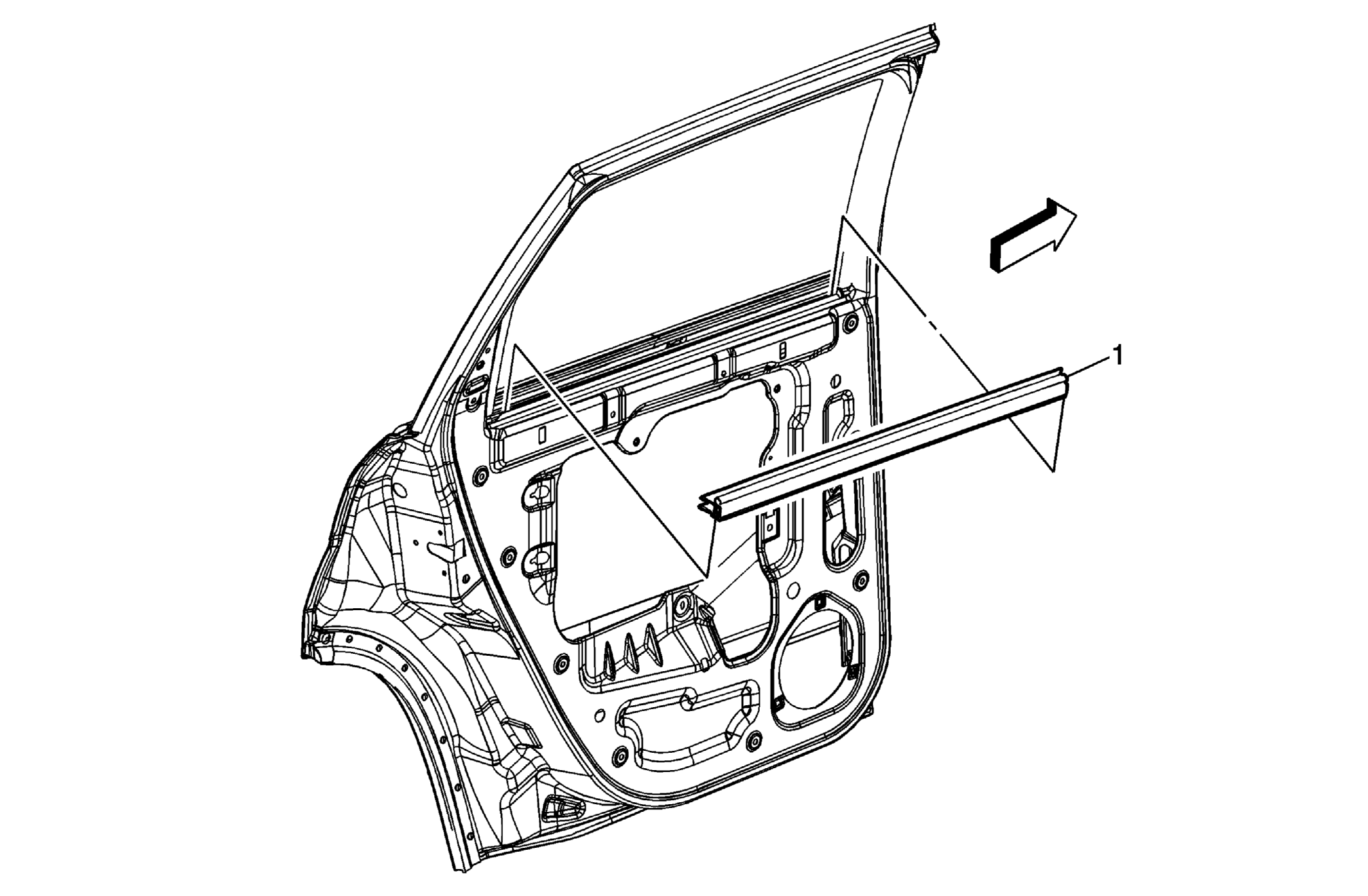

Fig 1: Rear Door Window Belt Inner Sealing Strip

GM1719002

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove rear door trim panel. Refer to Rear Side Door Trim Panel Replacement (Enclave)Rear Side Door Trim Panel Replacement (Acadia or Traverse) .

1

Rear Side Door Inner Window Sealing Strip

Procedures

Start from the front edge of the door, pull upward on the inner window sealing strip to release it from the pinch-weld flange.
Install the inner window sealing strip to the front edge of the door, press firmly onto the pinch-weld flange and work it rearward.
