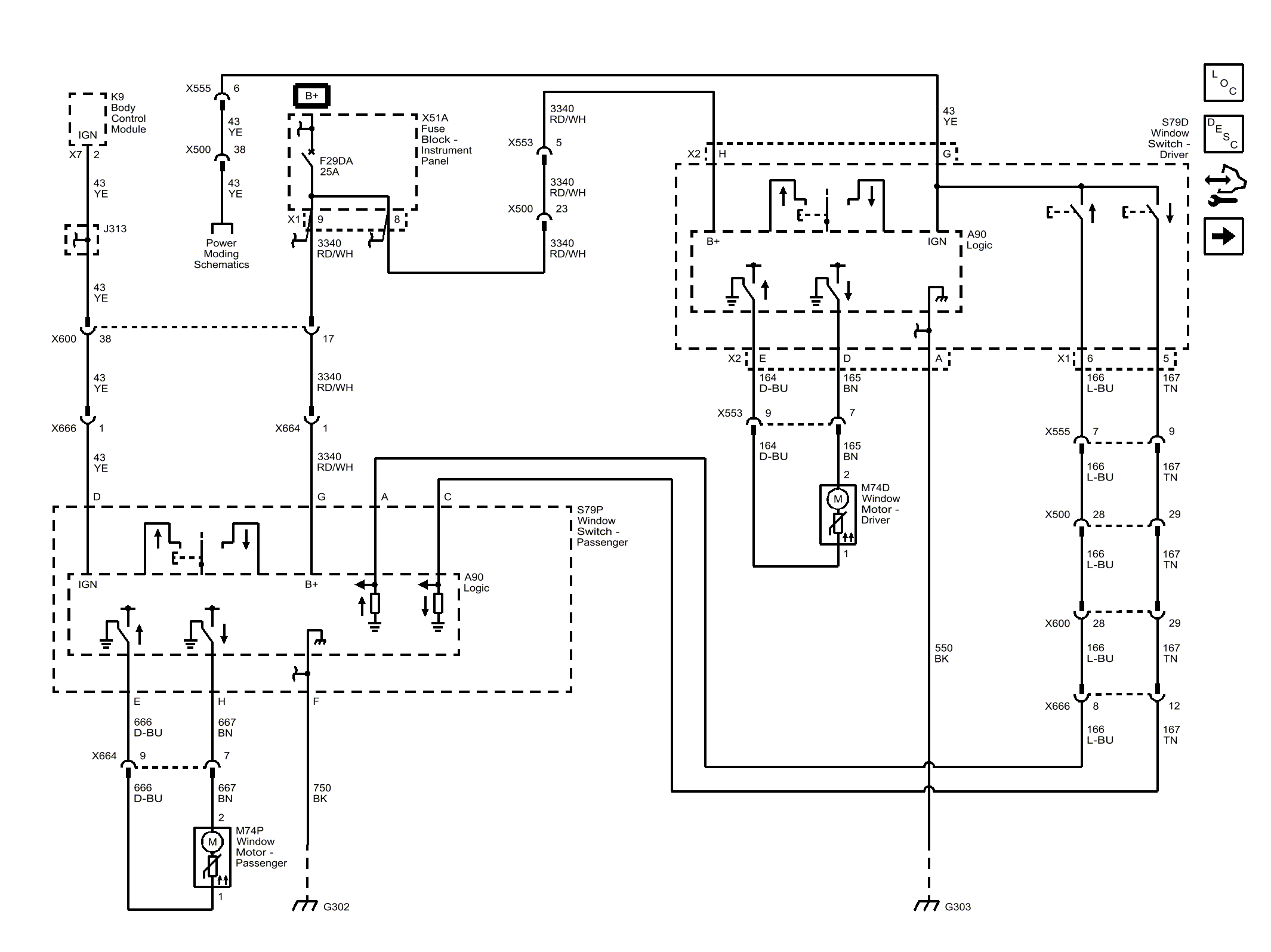

Home › Chevrolet › 2017 › Traverse LS Base › Repair and Diagnosis › Body & Frame › Windows › Fixed And MOVEABLE Window System › Schematic Wiring Diagrams › Moveable Window Wiring Schematics › Front (AXA)
