Starting and Charging Wiring Schematics: Charging

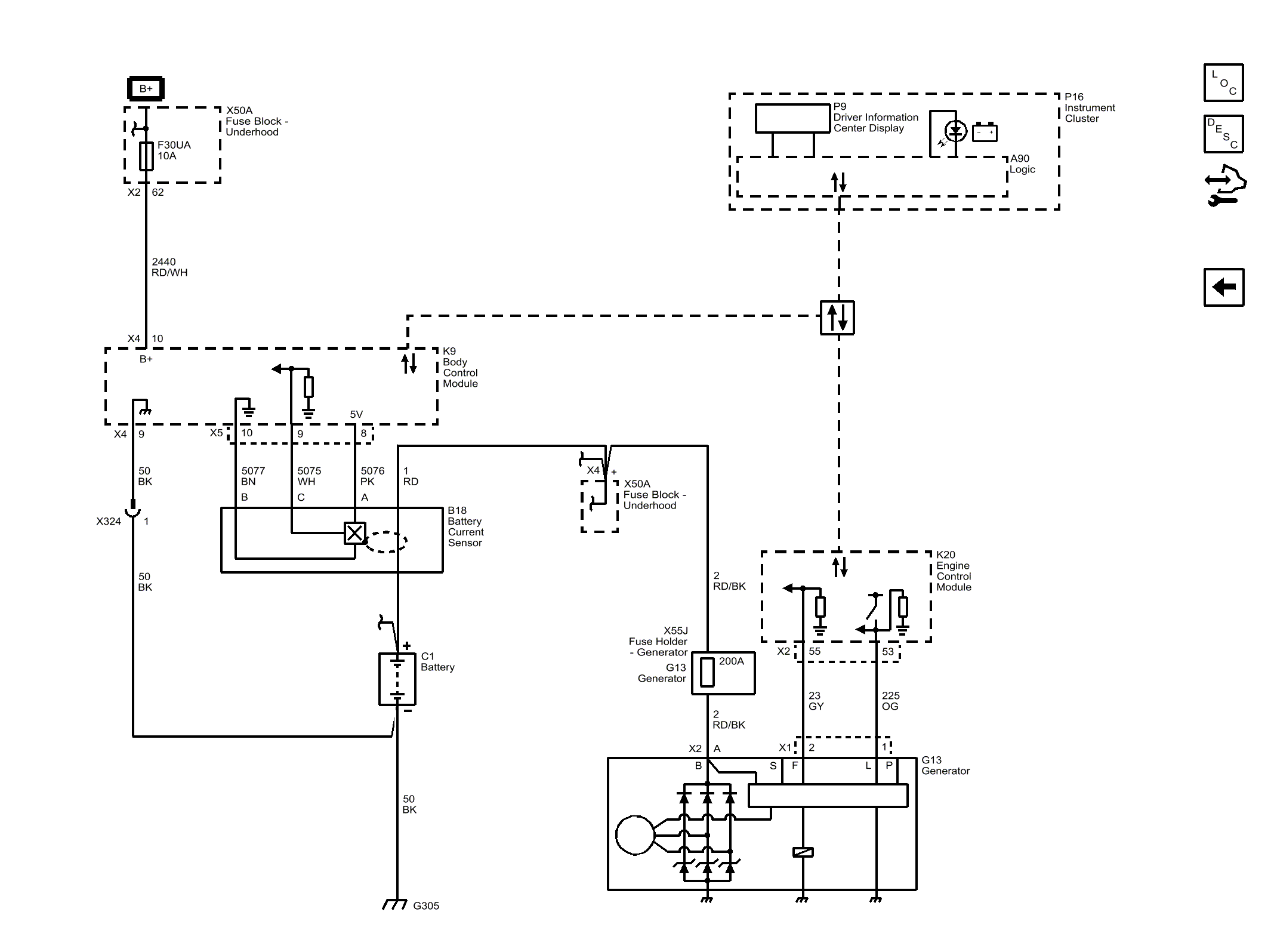

Fig 1: Charging
GM4405839Courtesy of GENERAL MOTORS COMPANY
