Engine Components - Top

Engine Components - Top

Items
1. Q17A Fuel Injector 1
2. Q17C Fuel Injector 3
3. Q17E Fuel Injector 5
4. Q17F Fuel Injector 6
5. Q17D Fuel Injector 4
6. Q17B Fuel Injector 2
7. B47B Fuel Rail Pressure Sensor

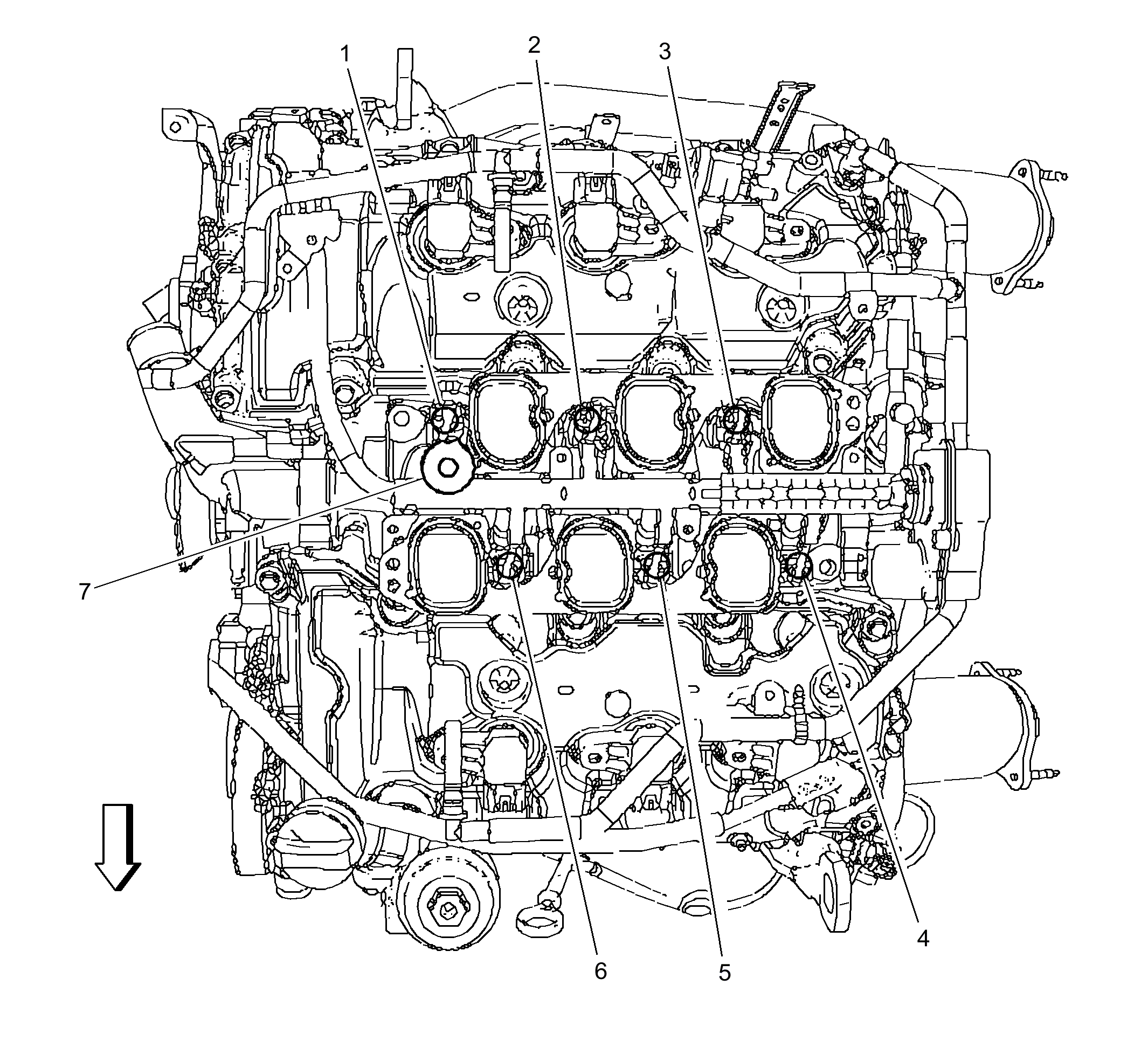

Fig 1: Engine - Top Components
GM2092151Courtesy of GENERAL MOTORS COMPANY
