Accessory Switch Replacement

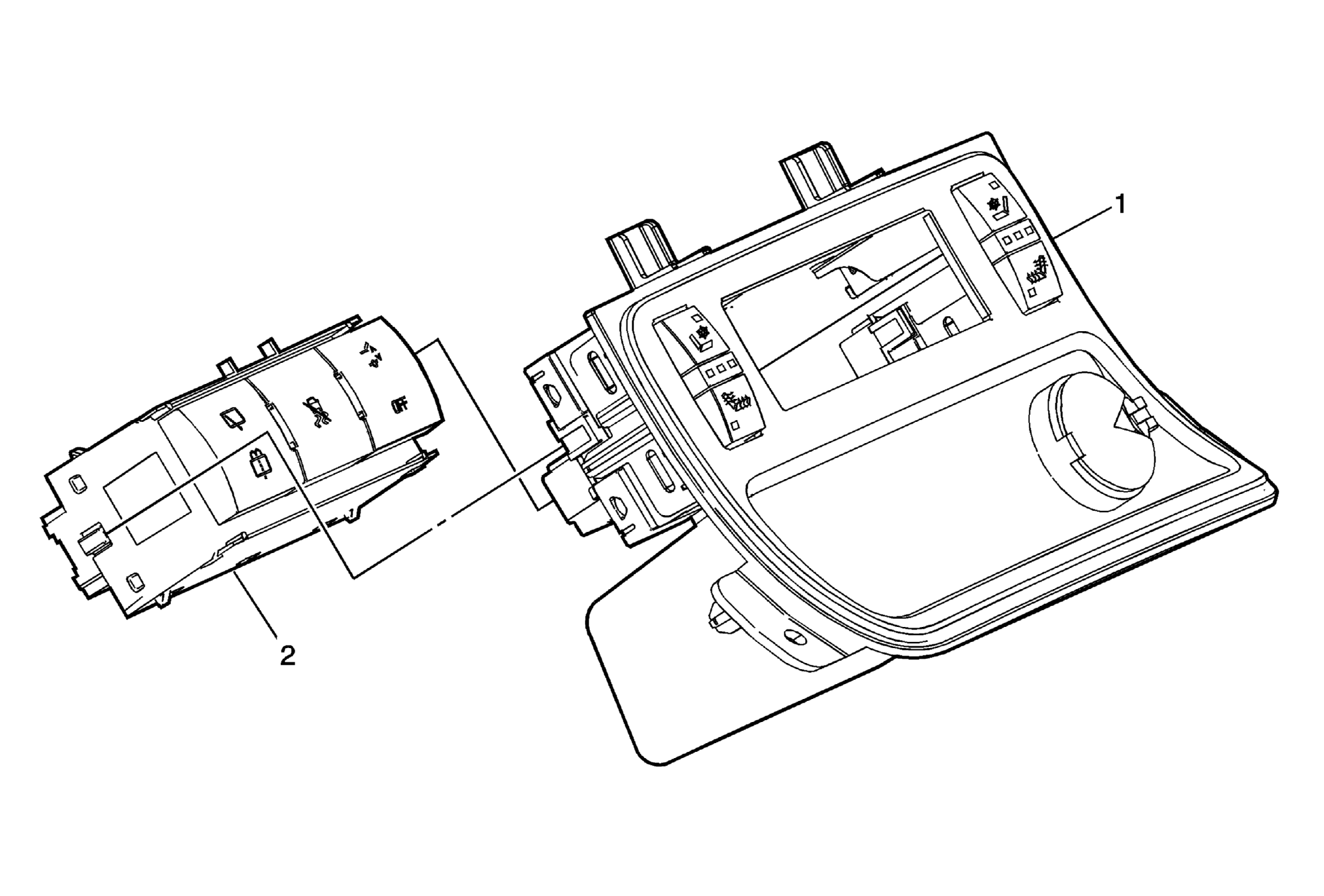

Fig 1: Accessory Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Floor Console Accessory Housing Refer to Front Floor Console Accessory Housing Replacement (Acadia)Front Floor Console Accessory Housing Replacement (Enclave)Front Floor Console Accessory Housing Replacement (Traverse) .
2	Accessory Switch Assembly Procedure  Unsnap the switch assembly from the front floor console accessory housing.
