Head-Up Display Replacement

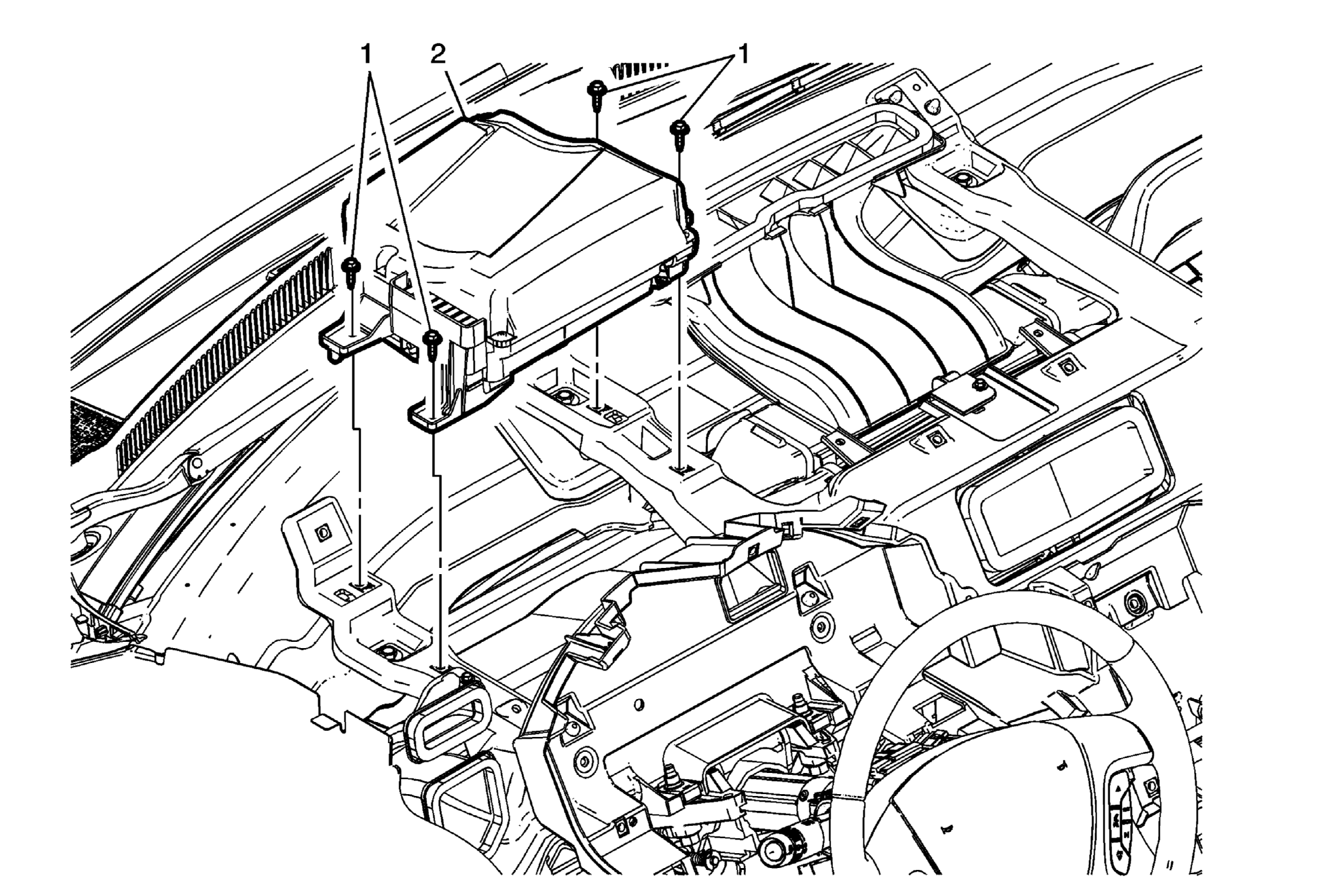

Fig 1: Head-Up Display

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel trim pad. Refer to Instrument Panel Trim Pad Replacement (Acadia w/RPO UV6)Instrument Panel Trim Pad Replacement (Acadia w/o RPO UV6)Instrument Panel Trim Pad Replacement (Enclave)Instrument Panel Trim Pad Replacement (Traverse) .
1	Head Up Display Bolt (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Head Up Display Procedures Disconnect the electrical connections. Refer to Control Module References for programming and setup information.

Callout

Component Name

Head Up Display Bolt (Qty: 4)

CAUTION:

Head Up Display

Procedures
