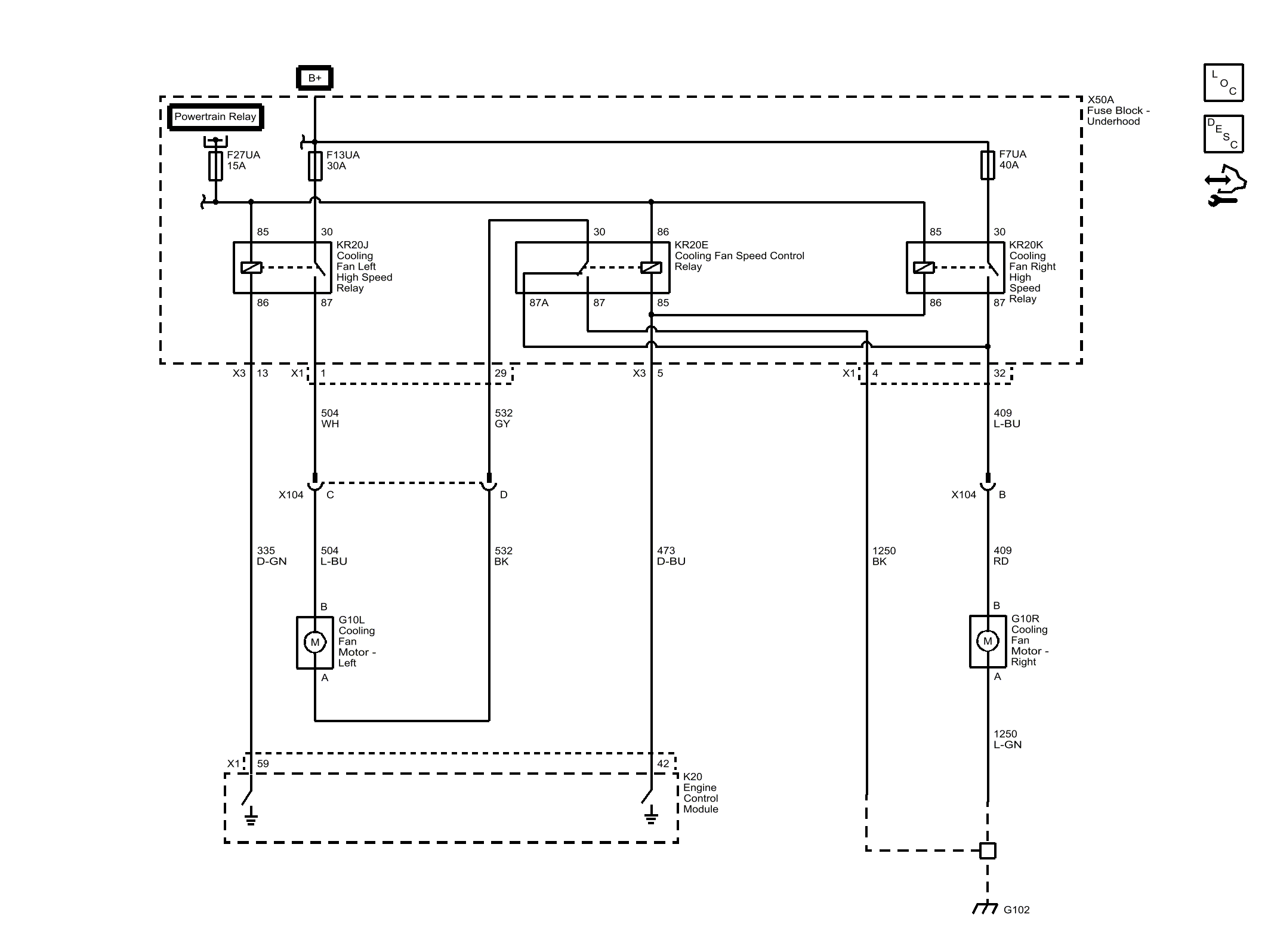

Home › Chevrolet › 2017 › Traverse LS Base › Repair and Diagnosis › Engine Mechanical › Cooling System (Mechanical) › Engine Cooling System › Schematic Wiring Diagrams › Engine Heating/Cooling Wiring Schematics › Engine Cooling
