Installation Procedure

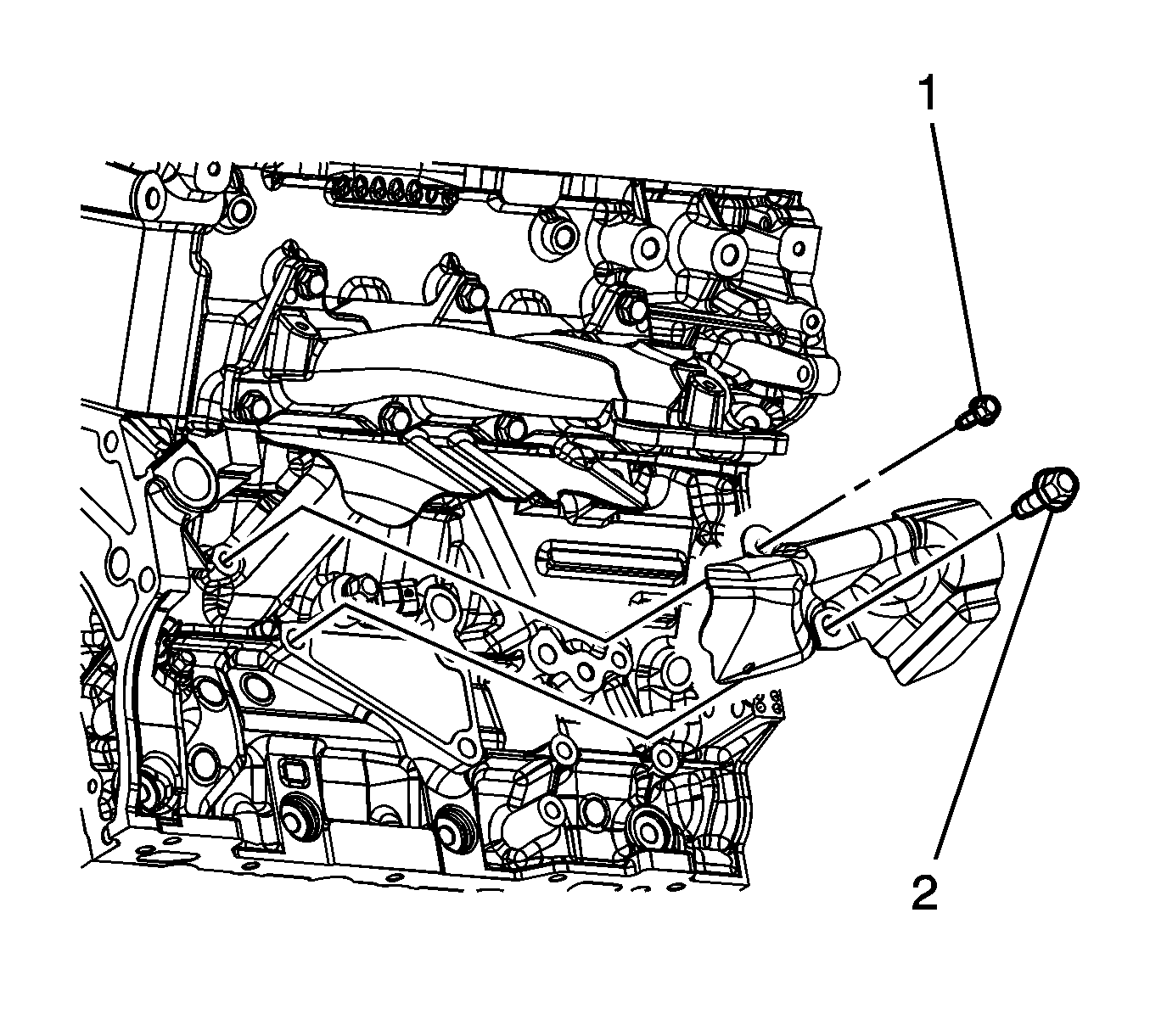

    Fig 1: Exhaust Manifold Lower Heat Shield
    GM1839760Courtesy of GENERAL MOTORS COMPANY
  1. Position the exhaust manifold lower heat shield to the engine.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the exhaust manifold lower heat shield bolts (1, 2). Tighten bolt (1) to 10 N.m (89 lb in) and tighten bolt (2) to 50 N.m (37 lb ft).
  3. Lower the vehicle.
