Communication Enable and Linear Interconnect Network (LIN)

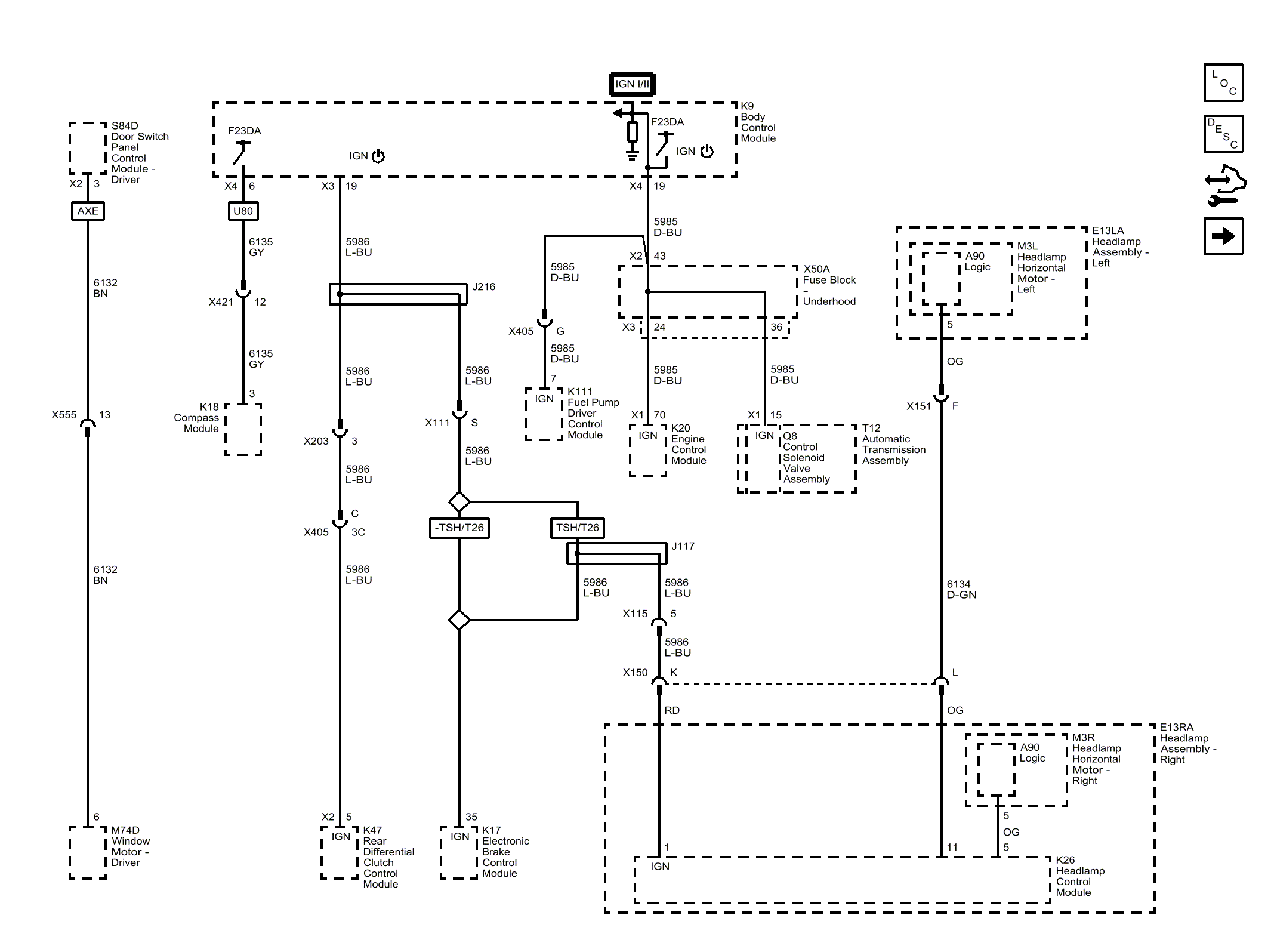

Fig 1: Communication Enable and Linear Interconnect Network (LIN)
GM4406145Courtesy of GENERAL MOTORS COMPANY
