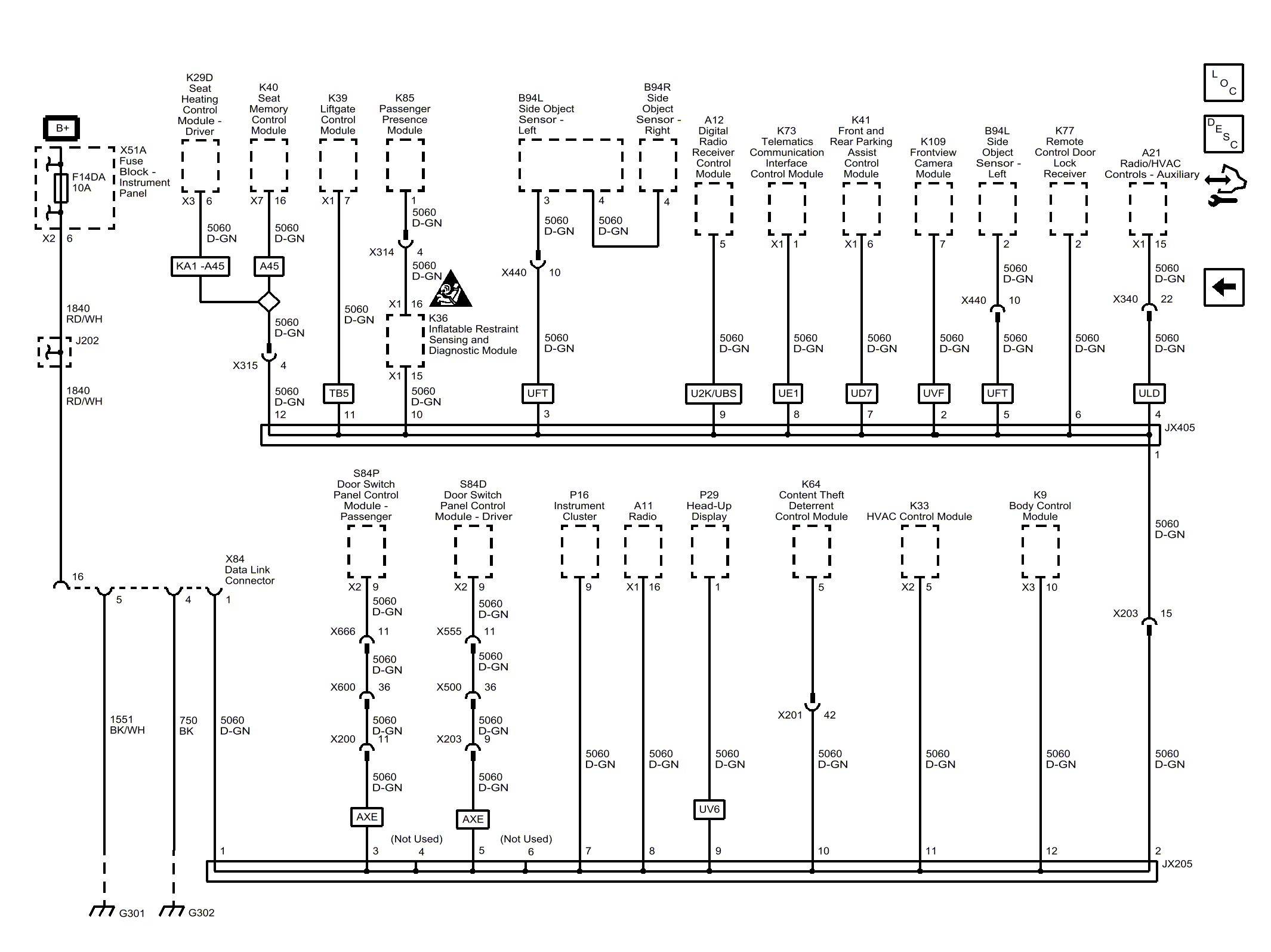

Home › Chevrolet › 2017 › Traverse LS Base › Repair and Diagnosis › Engine Performance › System › Data Communication System › Schematic Wiring Diagrams › Data Communication Wiring Schematics › Low Speed GMLAN
