Seat Belt Retractor Replacement - No. 1 Rear

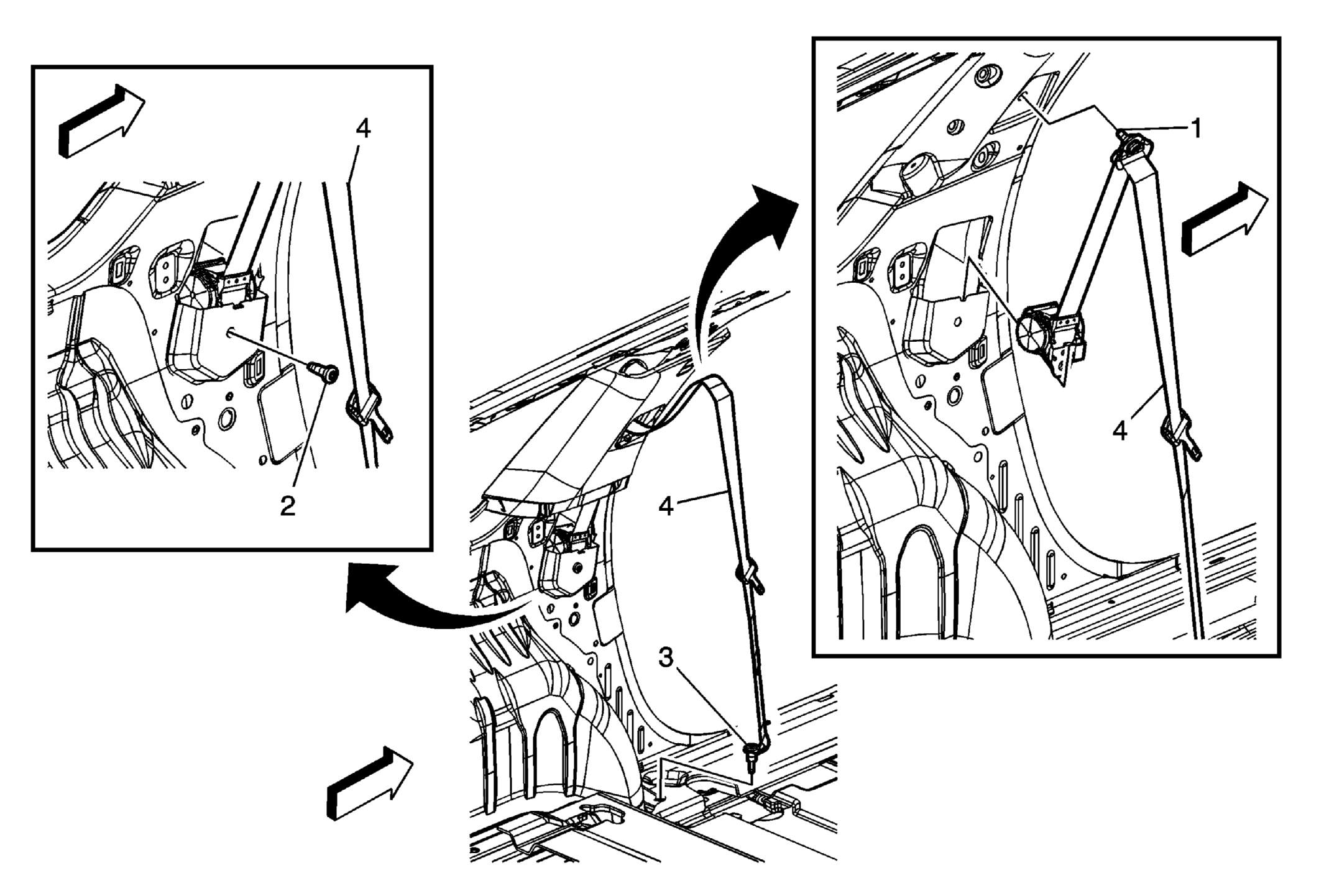

Fig 1: Seat Belt Retractor - No. 1 Rear

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disable the SIR system. Refer to SIR Disabling and Enabling . Remove the body lock pillar upper garnish molding. Refer to Body Lock Pillar Upper Trim Panel Replacement . Remove the rear quarter lower trim panel. Refer to Quarter Lower Rear Trim Panel Replacement (Traverse with TB5)Quarter Lower Rear Trim Panel Replacement (Traverse with TB4)Quarter Lower Rear Trim Panel Replacement (Enclave with TB5)Quarter Lower Rear Trim Panel Replacement (Enclave with TB4)Quarter Lower Rear Trim Panel Replacement (Acadia with TB5)Quarter Lower Rear Trim Panel Replacement (Acadia with TB4) .
1	Rear Seat Shoulder Belt Guide Adjuster Bolt CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Rear Seat Shoulder Belt Retractor Bolt Tighten 45 N.m (33 lb ft)
3	Rear Seat Shoulder Belt Anchor Bolt Tighten 45 N.m (33 lb ft)
4	Rear Seat Shoulder Belt Retractor Assembly
