Door Window Regulator Motor Replacement

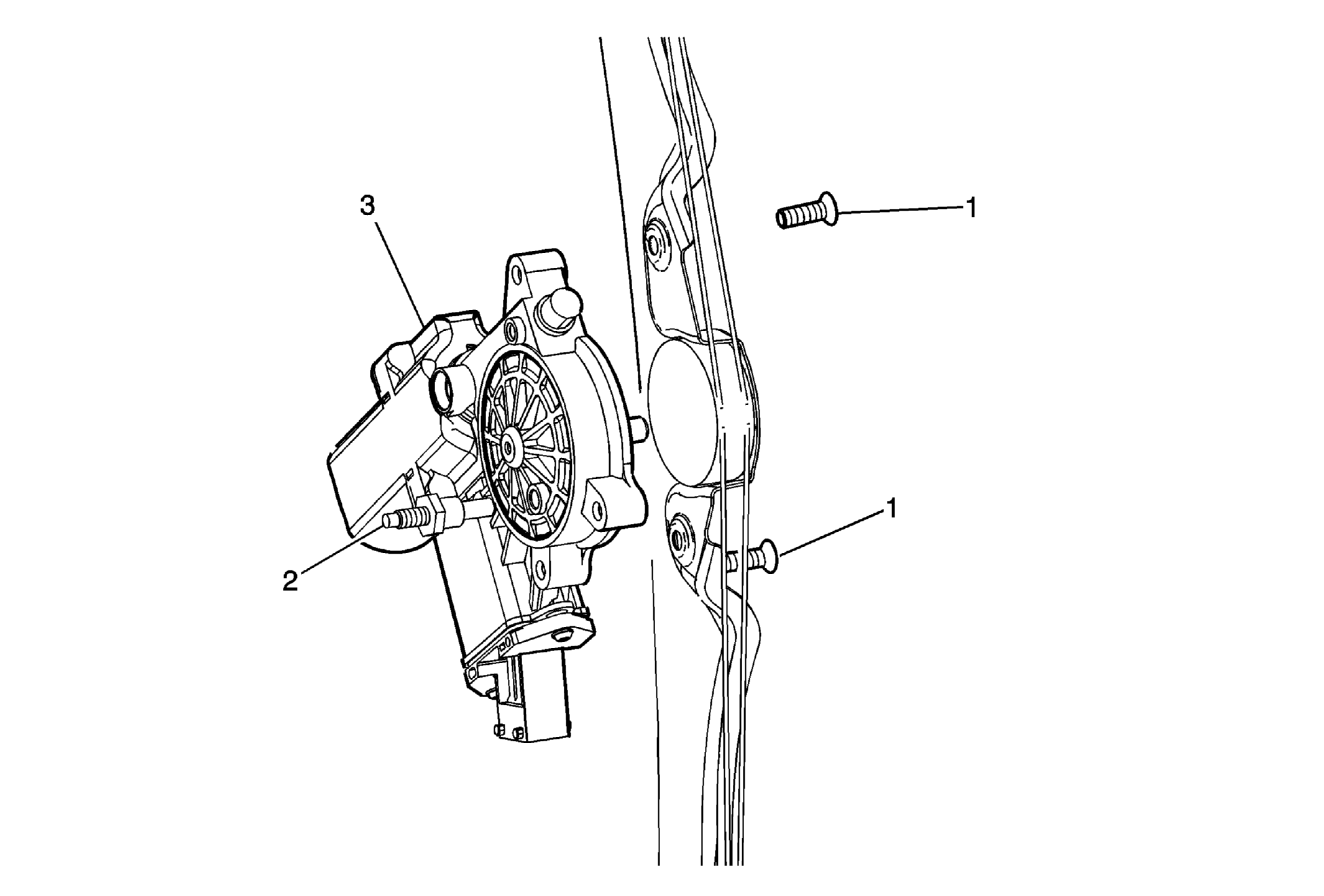

Fig 1: Door Window Regulator Motor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the window regulator. Refer to Front Side Door Window Regulator Replacement , or Rear Side Door Window Regulator Replacement .
1	Door Window Regulator Motor Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten  5 N.m (44 lb in)
2	Door Window Regulator Motor Stud Bolt Tighten  5 N.m (44 lb in)
3	Door Window Regulator Motor Procedure  Reprogram the window motor. Refer to Control Module References .
