Removal Procedure

  1. Remove Front Lower Control Arm - Lower Control Arm Replacement

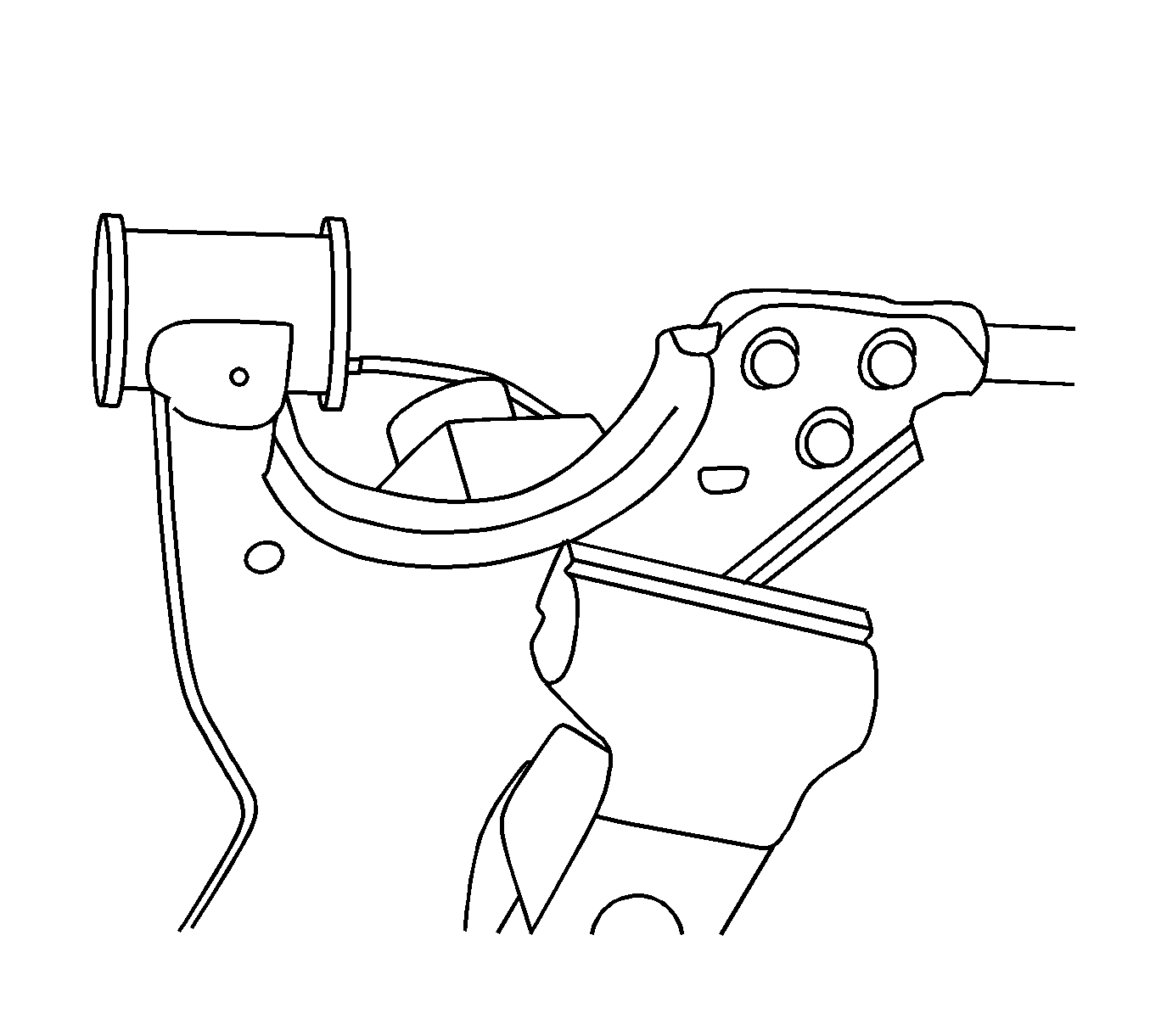

    2. Fig 1: Lower Control Arm In Soft Jawed Vise
    GM1853578Courtesy of GENERAL MOTORS COMPANY
  2. Secure the front lower control arm in a soft jawed vise.

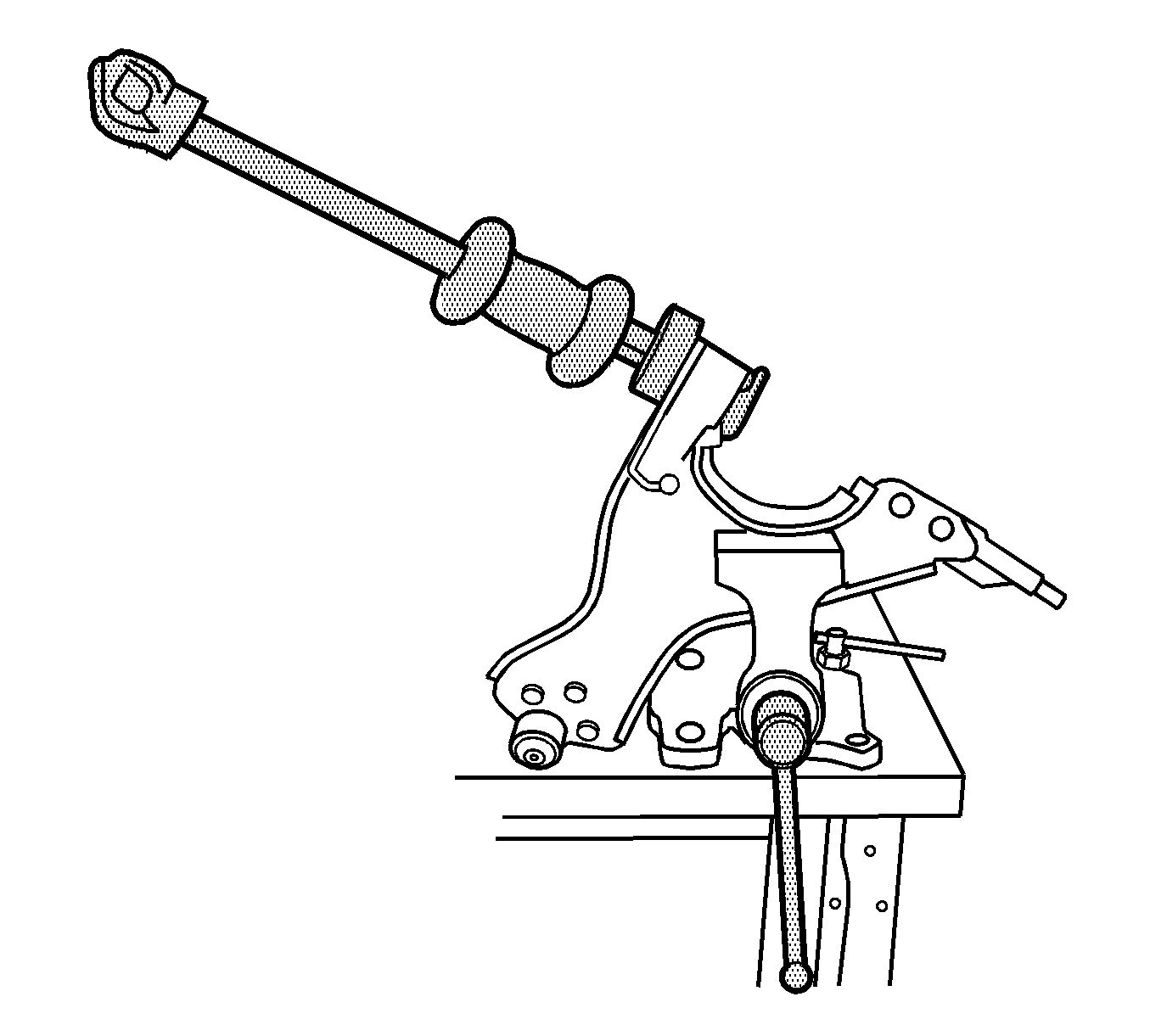

    3. Fig 2: Special Tools
    GM1853579Courtesy of GENERAL MOTORS COMPANY
  3. Use the J-2619 - 01  slide hammer and adapter and CH-48107  remover/installer to remove the outer portion of the front lower control arm rear bushing.

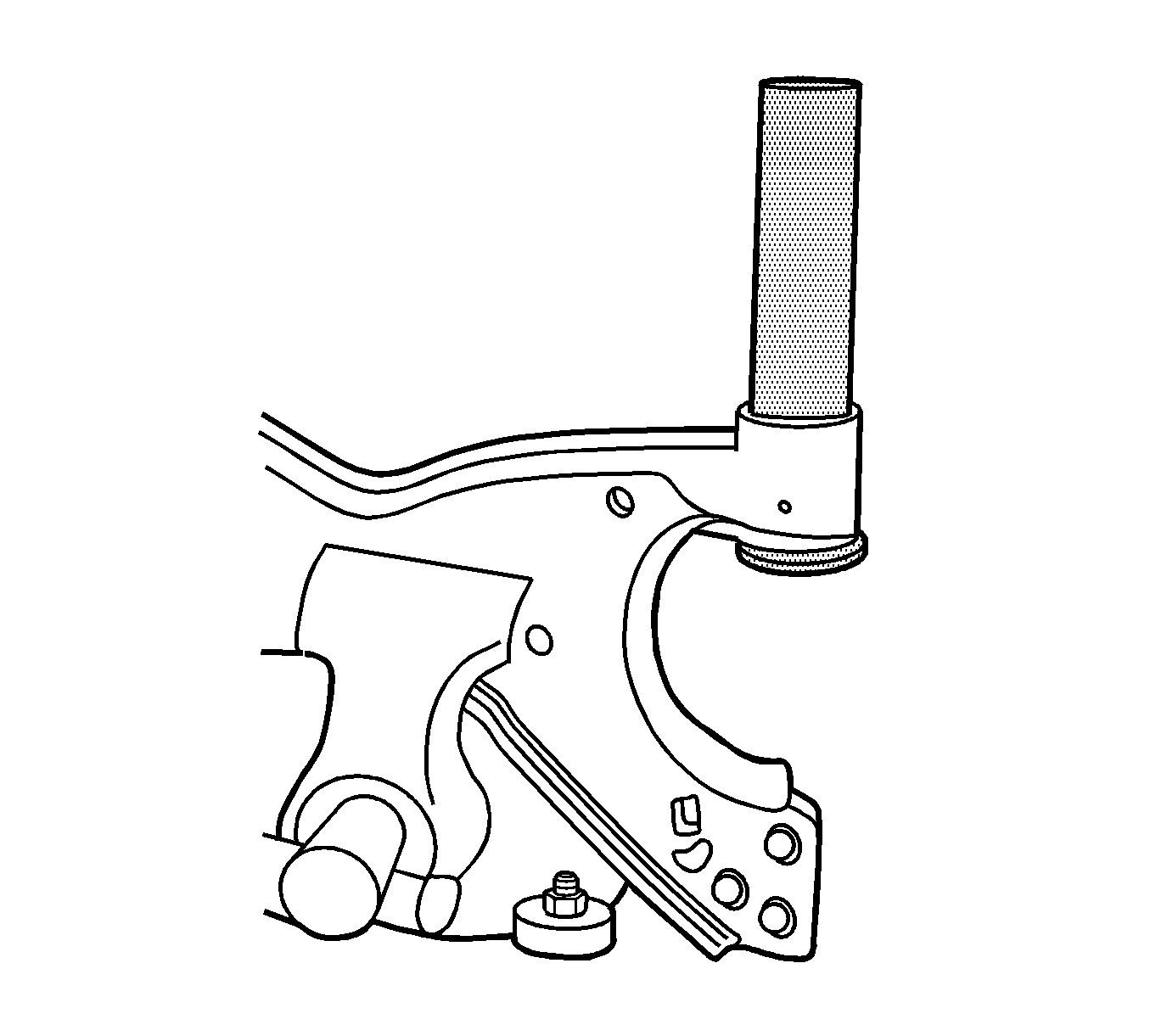

    4. Fig 3: Special Tool
    GM1853576Courtesy of GENERAL MOTORS COMPANY
  4. Use the J-5590  installer/remover to remove the inner portion of the front lower control arm rear bushing.
