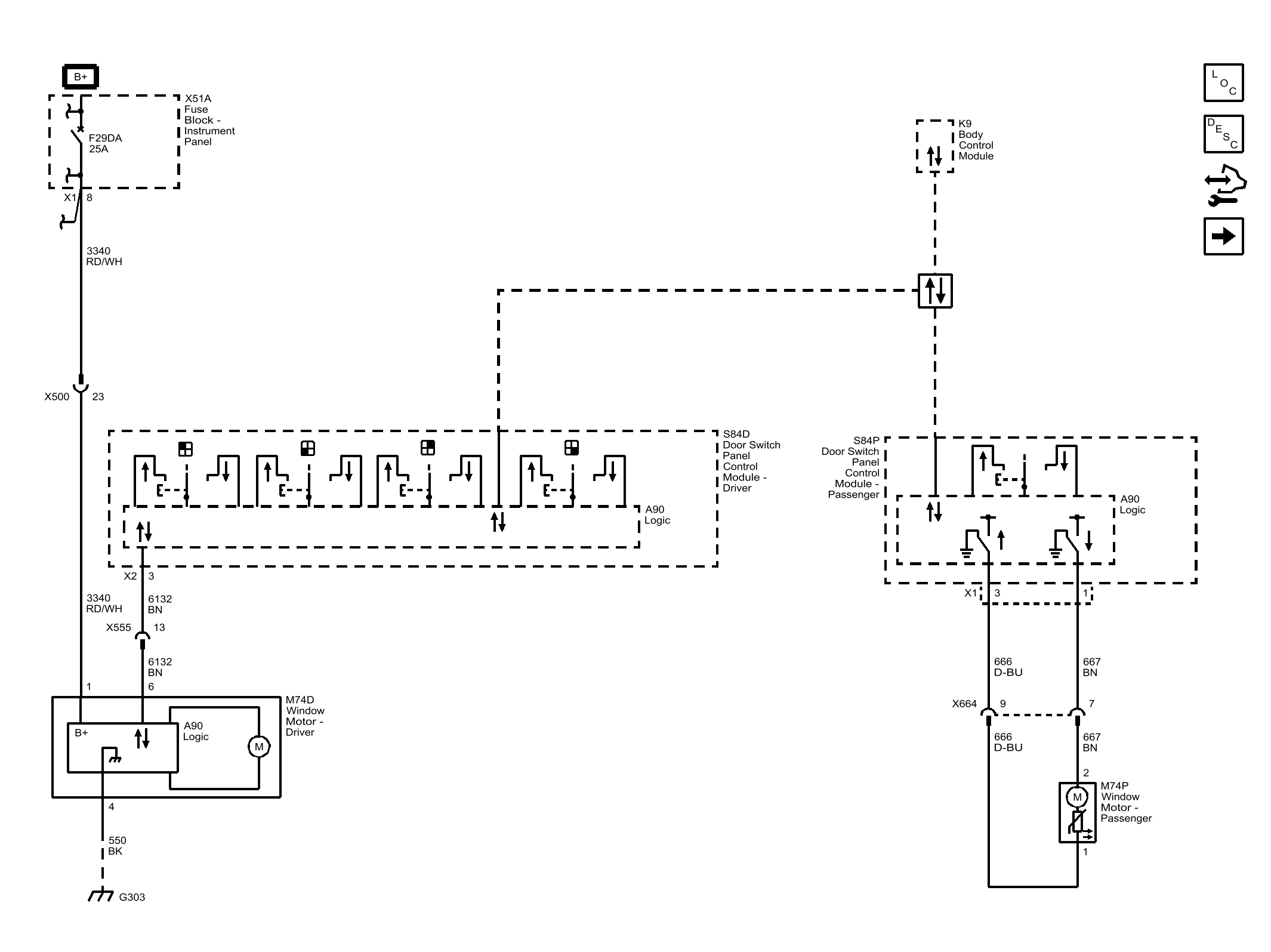

Home › Chevrolet › 2017 › Traverse Premier, AWD › Repair and Diagnosis › Body & Frame › Windows › Fixed And MOVEABLE Window System › Schematic Wiring Diagrams › Moveable Window Wiring Schematics › Front (AXE)
