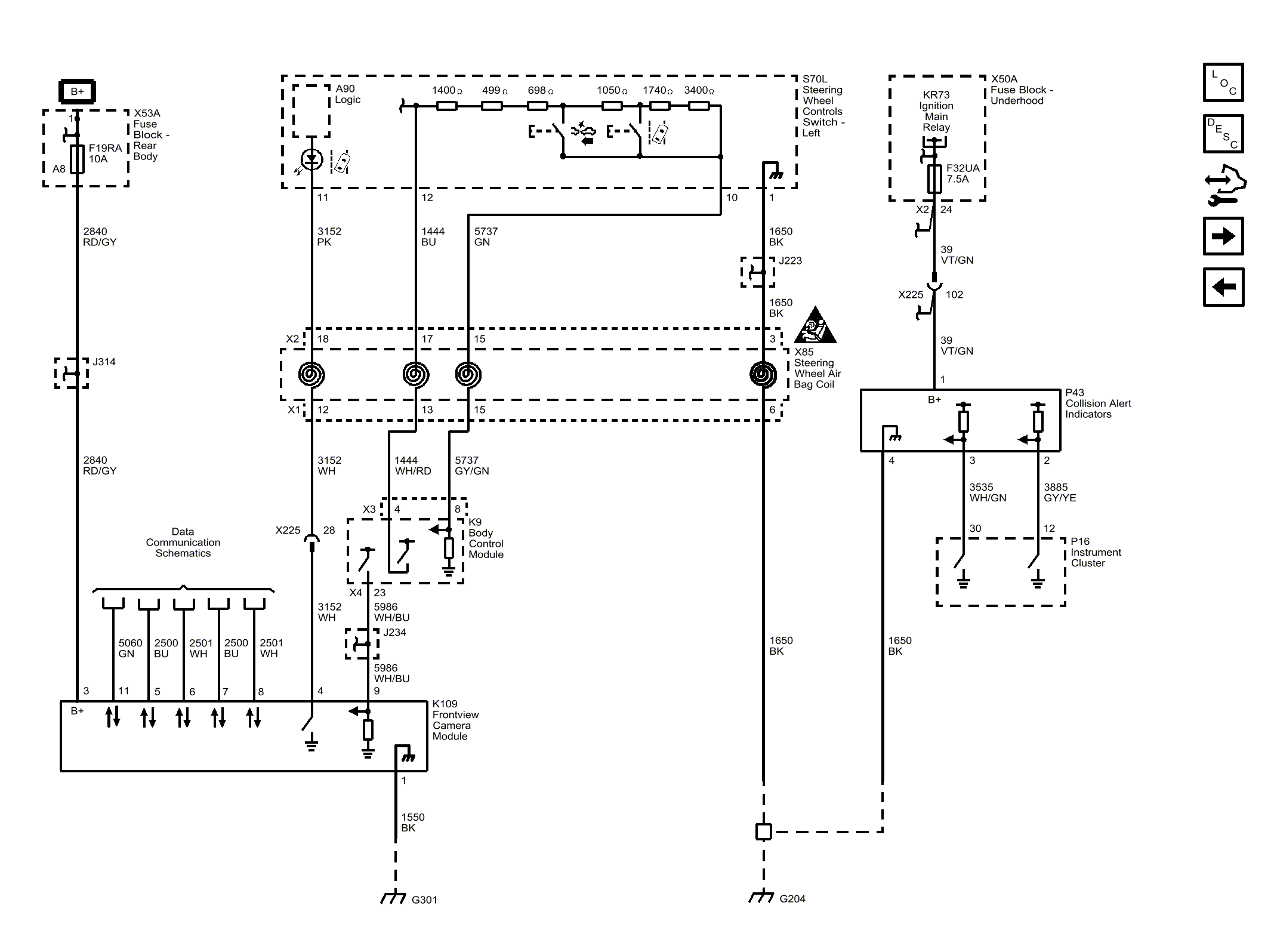

Comprehensive Safety - Camera and Module Power, Ground, and Controls (UEU/UHX/-UGN)

Fig 1: Comprehensive Safety - Camera and Module Power, Ground, and Controls (UEU/UHX/-UGN)
GM4290990Courtesy of GENERAL MOTORS COMPANY
