Front Side Door Window Weatherstrip Replacement

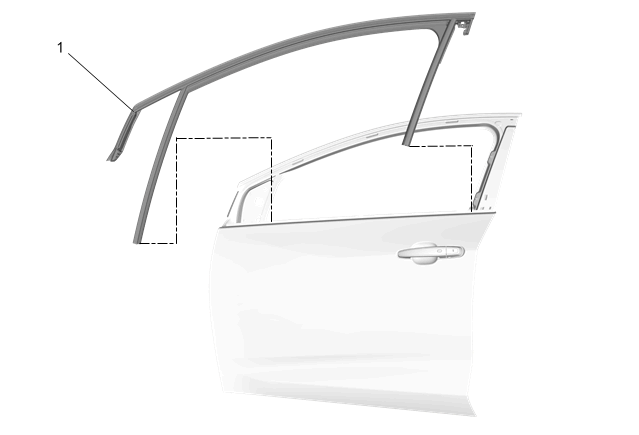

Fig 1: Front Side Door Window Weatherstrip

GM4091668

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove Front Side Door Window. Refer to Front Side Door Window Replacement
Remove Front Side Door Window Frame Rear Applique. Refer to Front Side Door Window Frame Rear Applique Replacement

1

Front Side Door Window Weatherstrip

Procedure

Start at the upper corner and pull down to release weatherstrip from the door frame.
Remove window weatherstrip from door.

NOTE:

Inspect the window for proper operation before installing the door trim panel.
