Front Compartment Splash Shield Replacement

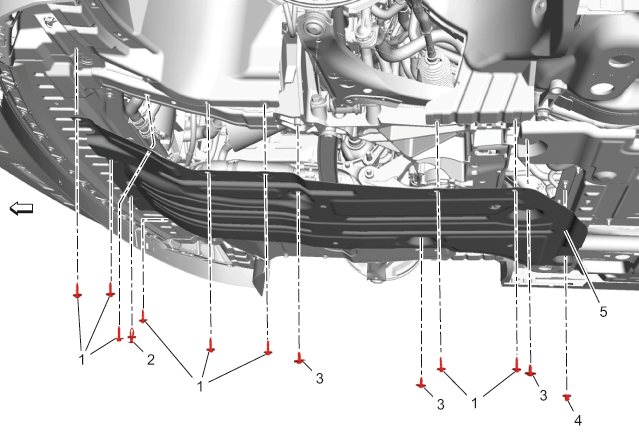

Fig 1: Front Compartment Splash Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Lifting and Jacking the Vehicle
1	Front Compartment Splash Shield Bolt (Qty: 8) CAUTION: Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Front Compartment Splash Shield Retainer
3	Front Compartment Splash Shield Bolt (Qty: 3) Tighten  7 N.m (62 lb in)
4	Front Compartment Splash Shield Plastic Nut Tighten  3 N.m (27 lb in)
5	Front Compartment Splash Shield
