Rear Wheel Speed Sensor Replacement

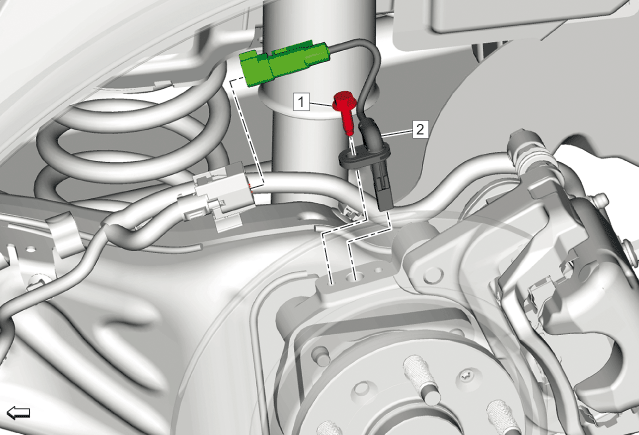

Fig 1: Rear Wheel Speed Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Procedure  Tire and Wheel Removal and Installation
1	Rear Wheel Speed Sensor Bolt CAUTION: Fastener Caution Procedure  Disconnect the electrical connector. Tighten  9 N.m (80 lb in)
2	Rear Wheel Speed Sensor
