Installation Procedure

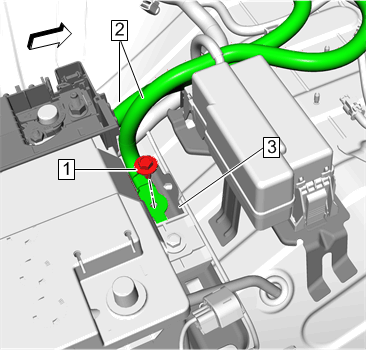

    Fig 1: Battery Negative Cable Ground Fastener
    GM4629007Courtesy of GENERAL MOTORS COMPANY
  1. Install Battery Positive and Negative Cable (2)
    2. CAUTION:

    Fastener Caution

  2. Install Battery Negative Cable Ground Fastener (1) @Battery Tray (3) and tighten 22 N.m (16 lb ft)

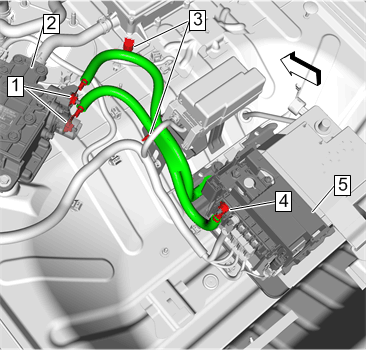

    3. Fig 2: Battery Positive Cable And Nut
    GM4629004Courtesy of GENERAL MOTORS COMPANY
  3. Install Battery Positive Cable Nut (4) @Battery Distribution Fuse Block (5) and tighten 15 N.m (133 lb in)
  4. Install Battery Positive Cable Nut (1) @Accessory DC Power Control Module and tighten 22 N.m (16 lb ft)
  5. Engage Retainer (3)
    6. Fig 3: Battery Fuse Block Cover And Retaining Tabs
    GM4091072Courtesy of GENERAL MOTORS COMPANY
  6. Install Battery Fuse Block Cover (2)
  7. Check the 2 locked retaining tabs (1).
    8. Fig 4: Panel Trim And Nuts
    GM4091071Courtesy of GENERAL MOTORS COMPANY
  8. Install the panel trim (2).
  9. Install the 3 panel trim nuts (1) and tighten to 6 N.m (53 lb in).
  10. Connect Battery Negative Cable Battery Negative Cable Disconnection and Connection
  11. Install Rear Compartment Floor Stowage Trim Compartment Rear Compartment Floor Stowage Trim Compartment Replacement
  12. Enable the high voltage system. High Voltage Enabling
