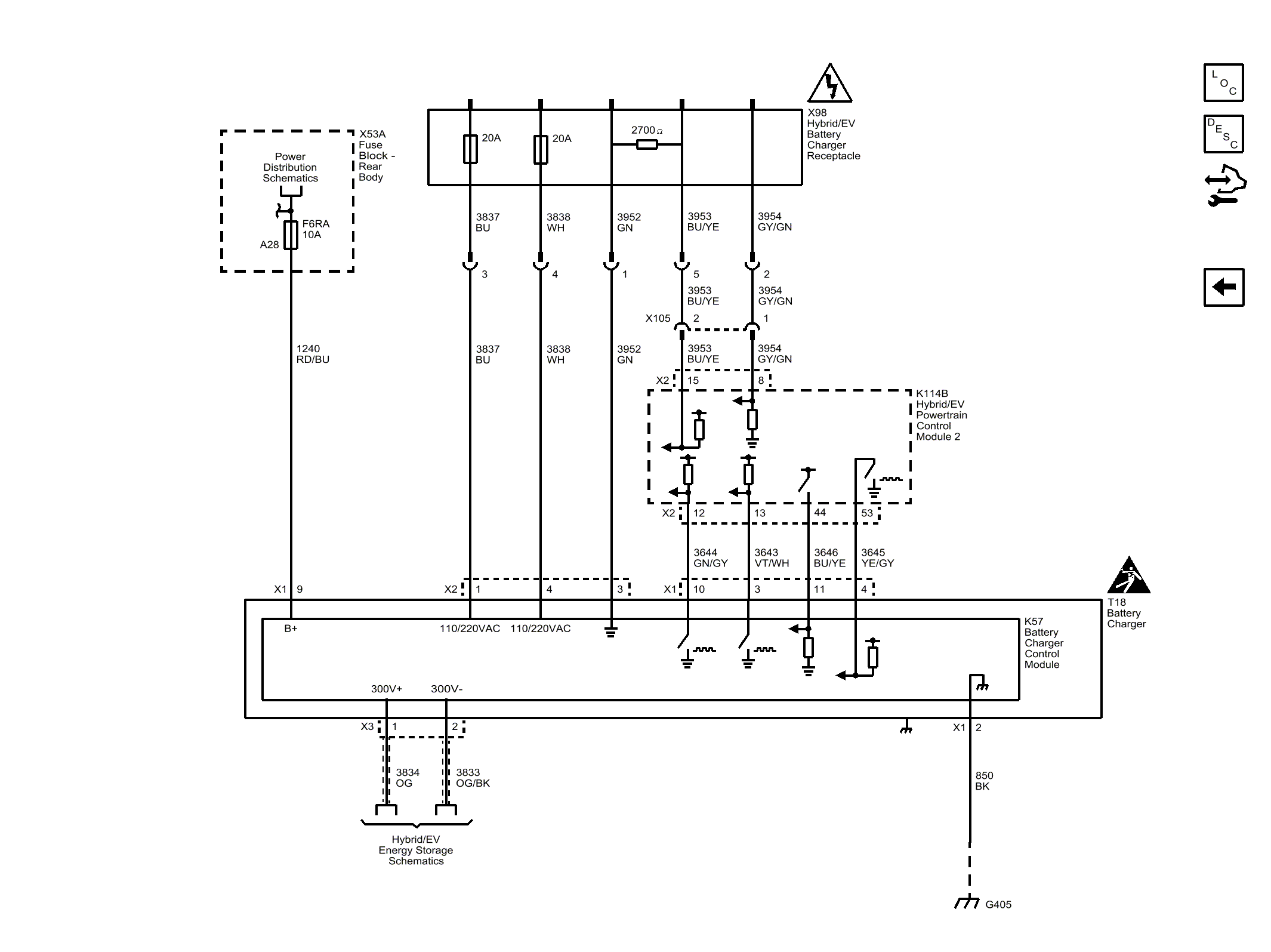

Home › Chevrolet › 2017 › Volt Premier › Repair and Diagnosis › Electrical › Charging Systems › Plug-In Charging System › Schematic Wiring Diagrams › Plug-In Charging Wiring Schematics › Battery Charger
